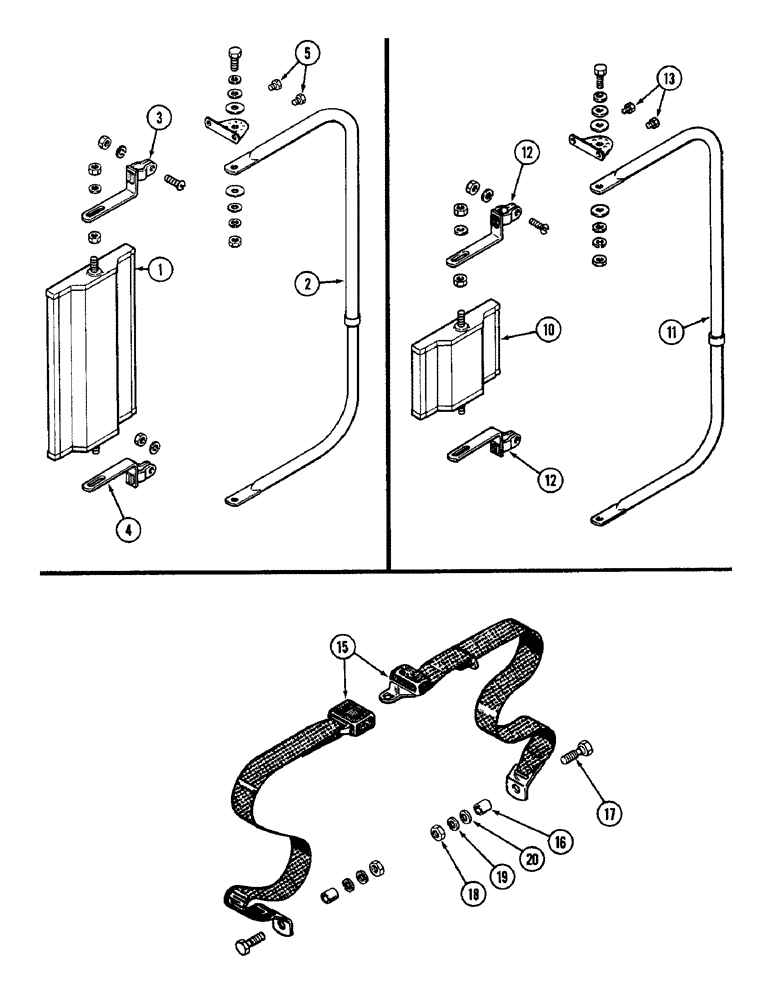

Запчасти Case IH 4890 (9-466) - MIRROR ATTACHMENTS (09) - CHASSIS/ATTACHMENTS

A61895

ATTACHMENT

- mirror, dual vision, Includes: Ref. 1 - 5

1шт.

NSS

NOT SOLD SEPARAT

MIRROR ASSEMBLY - dual vision (Order A61895), Includes: Ref. 1 - 4

1шт.

1

A42765

MIRROR

- dual vision

1шт.

2

A42764

BRACKET

- mirror swing away

1шт.

3

A42766

ADAPTER

- mirror bracket (Small) (Order A42767)

1шт.

4

A42767

ADAPTER

- mirror bracket (Large)

1шт.

5

187-1021

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

SCREW - 1/4 x 3/8" hex. self tapping

4шт.

A61897

KIT

ATTACHMENT - mirror, 4 x 6 covex, Includes: Ref. 10 - 13

1шт.

NSS

NOT SOLD SEPARAT

MIRROR ASSEMBLY - 4 x 6 convex (Order A61897), Includes: Ref. 10 - 12

1шт.

10

A42768

MIRROR

- 4 x 6 convex

1шт.

11

A42764

BRACKET

- mirror swing away

1шт.

12

A42767

ADAPTER

- mirror bracket

2шт.

13

187-1021

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

SCREW - 1/4 x 3/8" hex. self tapping

4шт.

15

A160404

SAFETY BELT

BELT - safety

1шт.

16

A60907

BUSHING

SPACER - bolt, safety belt

2шт.

17

A61946

STEP BOLT

BOLT - shoulder, belt anchor

2шт.

18

425-117

NUT,7/16"-20, G5

- 7/16" NF hex.

2шт.

19

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

20

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 MM)

2шт.
