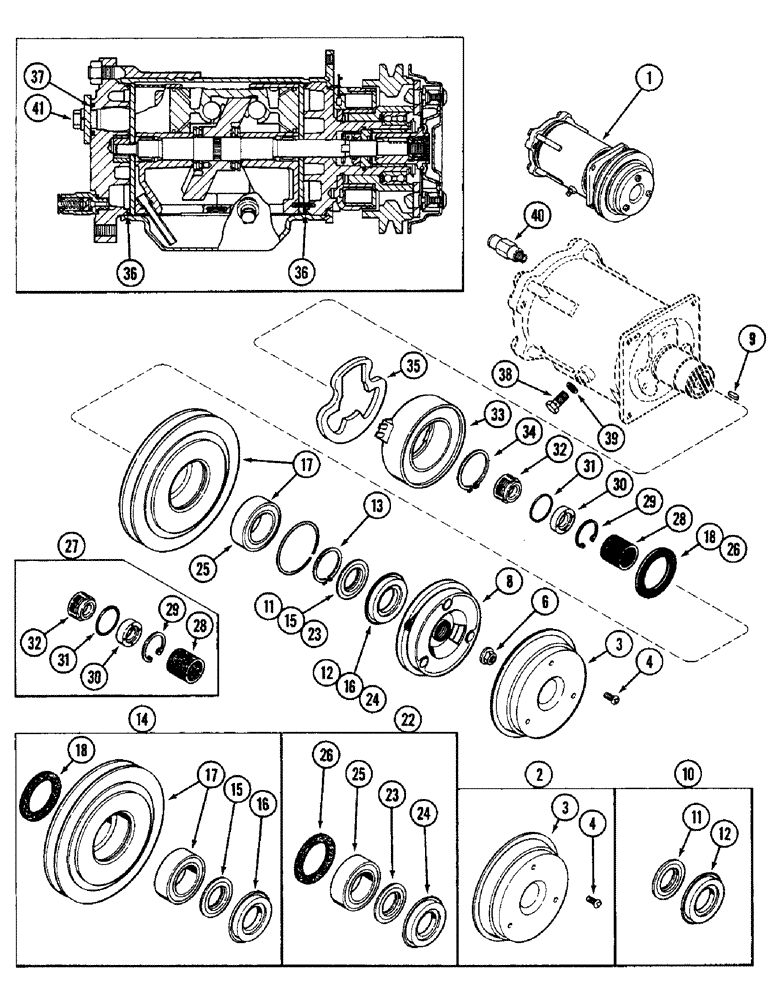

Запчасти Case IH 4890 (9-464) - AIR CONDITIONING, AIR COMPRESSOR ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

A160638

COMPRESSOR

ASSEMBLY - Delco #1131264 (Takes metric hardware), Includes: Ref. 2 - 41

1шт.

1

AR160638

REMAN-A/C COMPRESSOR,W/ Pulley

Remanufactured, Compressor

1шт.

1

AC160638

CORE-A/C COMPRESSOR

Return Number

1шт.

1

A135362

COMPRESSOR

ASSEMBLY - Delco #1131080 (Takes U.S. hardware) (Order A160638 and hardware, see Figure 9-458, ref 11), Includes: Ref. 2 - 41

1шт.

2

A44921

KIT

- dust cover pulley, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

COVER - dust pulley

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW - #10-16 x 3/8" flat head cross type

3шт.

6

A47671

NUT

- shaft hub, 3/8" NF hex. lock (Replaces A44926 spacer, A44925 ring and A44924 nut)

1шт.

8

A44923

CLUTCH

- drive

1шт.

9

A44927

KEY

- shaft hub

1шт.

10

A44930

KIT

- seal, pulley bearing, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

RETAINER - bearing seal, pulley

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - bearing, pulley

1шт.

13

A44933

SNAP RING,#156, Ext

Ring, Snap, , brg #156, Ext

1шт.

14

A44935

PULLEY

ASSEMBLY - with bearing, Includes: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

RETAINER - pulley bearing seal

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - pulley bearing

1шт.

17

NSS

NOT SOLD SEPARAT

PULLEY AND BEARING ASSEMBLY

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - bearing, rear

1шт.

22

A44934

KIT

- bearing, pulley, Includes: Ref. 23 - 26

1шт.

23

NSS

NOT SOLD SEPARAT

RETAINER - pulley bearing seal

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - pulley bearing

1шт.

25

NSS

NOT SOLD SEPARAT

BEARING - pulley

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL - rear bearing

1шт.

27

A44929

KIT

ASSEMBLY - seal, shaft, Includes: Ref. 28 - 32

1шт.

28

NSS

NOT SOLD SEPARAT

SLEEVE - felt seal

1шт.

29

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

30

NSS

NOT SOLD SEPARAT

SEAT - seal, ceramic

1шт.

31

NSS

NOT SOLD SEPARAT

O-RING - seat

1шт.

32

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - shaft

1шт.

33

A44936

COIL

- pulley

1шт.

34

A44937

SNAP RING,#175, Ext

Ring, Snap, , coil hsg to head #175, Ext

1шт.

35

A44938

GASKET

- head

1шт.

36

A44940

O-RING,0.796" ID x 0.139"

- front and rear head, 4-1/4 x 4-7/16 x 7/64" (107.0 x 112.7 x 2.78 MM)

2шт.

37

A44941

O-RING

- suction and dish port, 13/16 x 1-5/64 x 9/64" (20.63 x 27.38 x 3.57 MM)

2шт.

38

A44939

PLUG

- charging

2шт.

39

A26413

GASKET

- charging screw

1шт.

40

A44942

VALVE

- pressure relief

1шт.

41

114-209

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- 3/8 x 3/4" NF hex. (Grade 5)

1шт.
