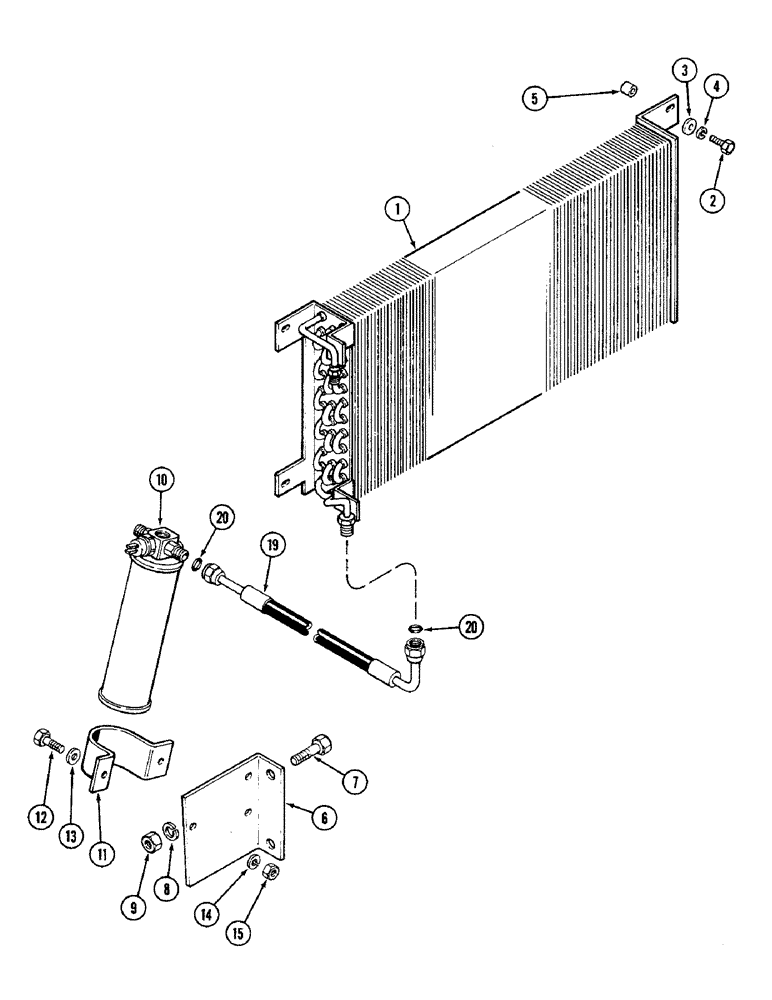

Запчасти Case IH 4890 (9-460) - AIR CONDITIONING, CONDENSER AND RECEIVER, DRIER MOUNTING (09) - CHASSIS/ATTACHMENTS

1

A152071

CONDENSER

- air conditioning

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- 3/8 x 7/8" NC hex. (Grade 5) (Replaces 113-221)

4шт.

3

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

4шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

A37418

SPACER

- condenser mounting

4шт.

6

A152072

BRACKET

- mounting, receiver - drier

1шт.

7

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

10

A76312

RECEIVER-DRYER

DRIER - receiver, Inc. 10A

1шт.

10a

A47717

SWITCH

- Low Pressure (Not Shown)

1шт.

11

A76313

CLAMP

-, Serial Range: receiver-drier-bracket

1шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16" (8.73 x 17.46 x 1.59 MM)

2шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

2шт.

19

A151071

HOSE

- condenser to receiver-drier (Replaces A15171)

1шт.

20

A61198

O-RING,0.07" Thk x 0.301" ID, -11

- 5/16 x 7/16 x 1/16" (7.94 x 11.11 x 1.59 MM)

2шт.
