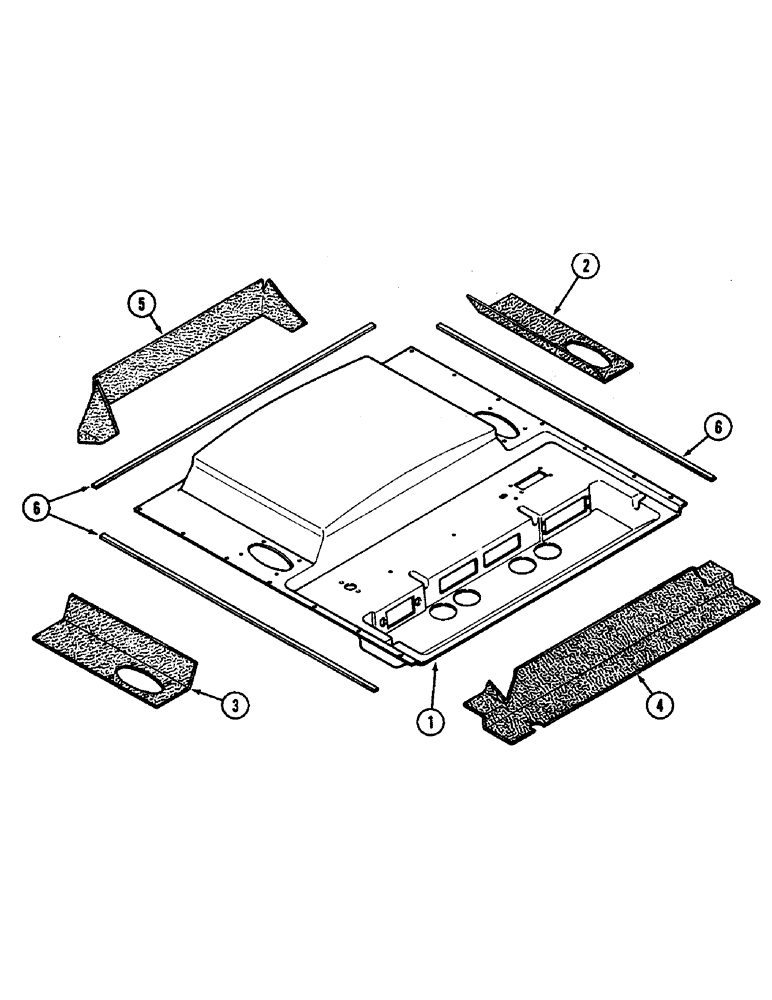

Запчасти Case IH 4890 (9-456) - CAB, HEADLINER NOISE PADS WITH RADIO, PRIOR TO CAB SERIAL NO 12036610 (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

HEADLINER - (See Figure 9-426 and 9-428)

1шт.

2

F64245

PAD

- damping, LH

1шт.

3

F64246

PAD

- damping, RH

1шт.

4

F64477

PAD

- damping, front

1шт.

5

F64248

PAD

- damping, rear

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - outer edge, 44" (1117.6 MM) Long (Order F64119)

1шт.

F64119

SEALING STRIP

- seal, 100' (30.48 M) Roll, Serial Range: (Cut-length)

1шт.
