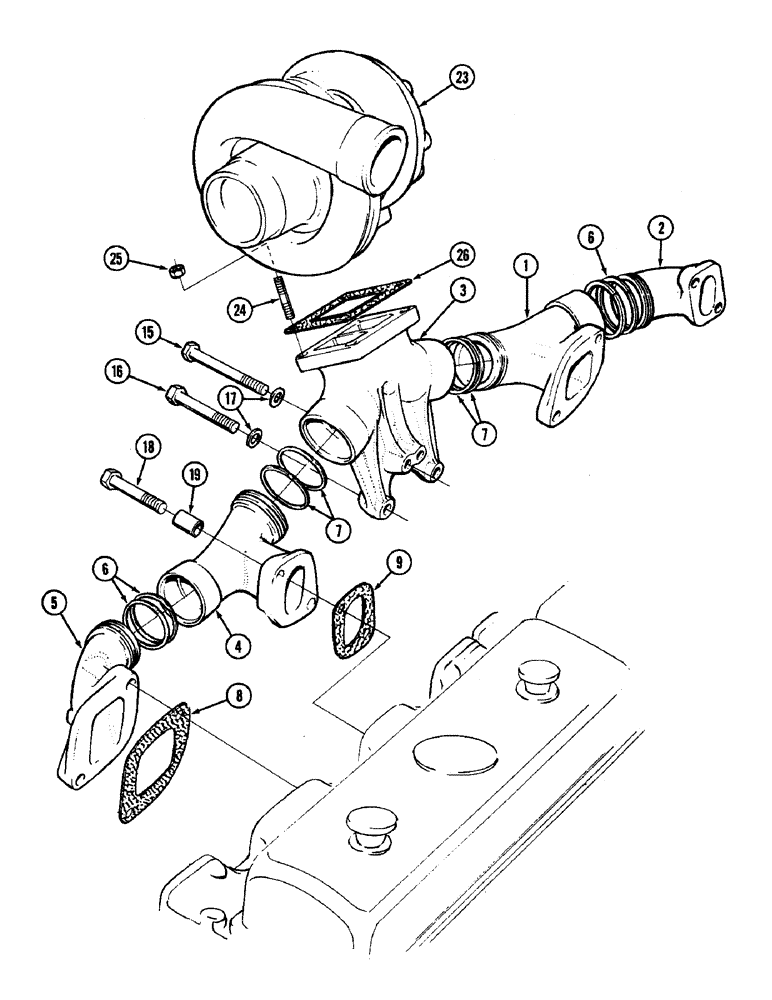

Запчасти Case IH 4890 (2-16) - EXHAUST MANIFOLD, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A46363

MANIFOLD

- exhaust, rear center section

1шт.

2

A46377

MANIFOLD

- exhaust, rear section

1шт.

3

A45771

MANIFOLD

- exhaust, intermediate section

1шт.

4

A45773

MANIFOLD

- exhaust, front center section

1шт.

5

A45772

MANIFOLD

- exhaust, front section

1шт.

6

A46440

RING

- compression, front and rear section

4шт.

7

A46389

SEAL

- compression, center and intermediate section

4шт.

8

A46368

MANIFOLD GASKET

- manifold to head (Large)

2шт.

9

A46369

MANIFOLD GASKET

- manifold to head (Small)

2шт.

15

813-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

- 12 x 1.75 x 100 MM

2шт.

16

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

(Replaces 813-12080) Hex, M12 x 80, 8.8

2шт.

17

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/16 x 3/32" (13.49 x 26.99 x 2.38 mm)

4шт.

18

826-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

- 12 x 1.75 x 65 MM

8шт.

19

A45778

SPACER

- mounting, exhaust manifold

8шт.

23

REF

INSTRUCTION

TURBOCHARGER - engine (See Figure 2-22)

1шт.

24

A45775

STUD

- turbocharger to exhaust manifold

4шт.

25

A46073

NUT

- turbocharger stud

4шт.

26

A46185

MANIFOLD GASKET

-, Serial Range: turbocharger-manifold

1шт.
