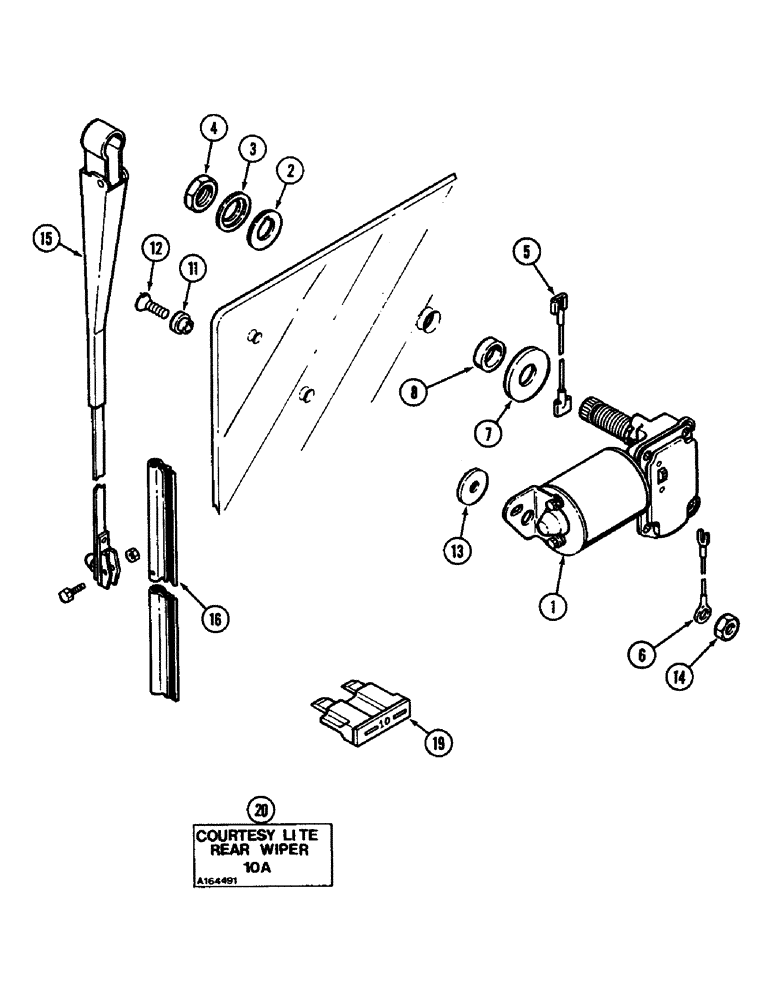

Запчасти Case IH 4890 (9-451A) - REAR WINDOW WIPER (09) - CHASSIS/ATTACHMENTS

A164686

WIPER MOTOR

KIT - rear window wiper (Machinery item), Includes: Ref. 1 - 20

1шт.

Used on tractors equipped with F64687 rear windows only.

1шт.

1

F93209

WIPER MOTOR

MOTOR - wiper, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

WASHER - leather (Order F98209)

1шт.

3

NSS

NOT SOLD SEPARAT

SPACER - wiper motor (Order F93209)

1шт.

4

NSS

NOT SOLD SEPARAT

NUT - wiper motor (Order F93209)

1шт.

5

A165311

ELECTRICAL WIRE

WIRE - wiper motor power

1шт.

6

A165075

ELECTRICAL WIRE

WIRE - wiper motor ground

1шт.

7

A165073

WASHER

- 5/8 x 1-1/2 x 7/64" nylon (15.87 x 38.1 x 2.78 MM)

1шт.

8

A165074

SPACER

- 41/64 x 7/8 x 1/4" nylon (16.41 x 22.22 x 6.35 MM)

1шт.

11

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- motor mounting

1шт.

12

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- mounting, #10-24 x 3/4 Phillips head

1шт.

13

A165076

WASHER,7.87mm ID x 25.4mm OD x 3.05mm Thk

- 5/16 x 1 x 7/64" nylon (7.94 x 25.4 x 2.78 MM)

1шт.

14

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

1шт.

15

T41946

ARM

- wiper blade

1шт.

16

A42580

WIPER BLADE,203.2mm L

BLADE - wiper

1шт.

19

A149800

FUSE,10 Amp

- 10 ampere

1шт.

20

A164491

DECAL

- fuse

1шт.
