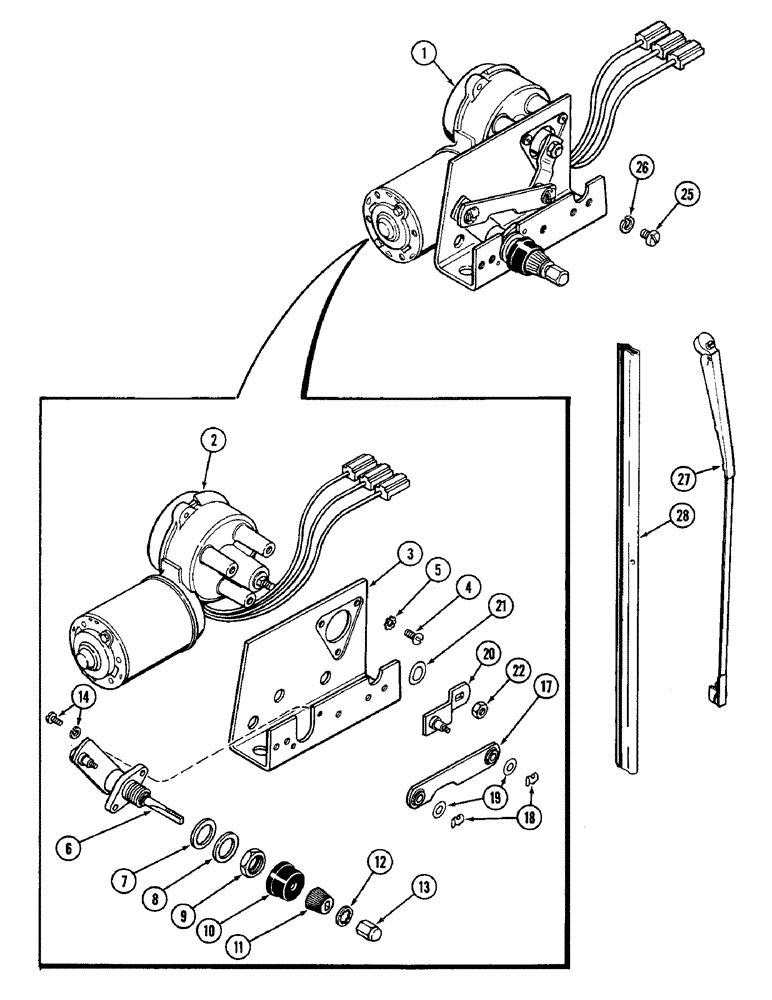

Запчасти Case IH 4890 (9-448) - CAB, WINDSHIELD WIPER, PRIOR TO CAB SERIAL NO. 12033908 (09) - CHASSIS/ATTACHMENTS

1

F98108

WIPER

ASSEMBLY - windshield (Order F64524, F64530 and F96764), Includes: Ref. 2 - 22

1шт.

2

NSS

NOT SOLD SEPARAT

MOTOR - (Order F98108)

1шт.

3

NSS

NOT SOLD SEPARAT

BRACKET - mounting

1шт.

4

174-214

SCREW,Sl Rnd Hd, 1/4" - 28 x 5/8"

- 1/4 x 5/8" NF round head

3шт.

5

193-57

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

3шт.

D71415

SHAFT

ASSEMBLY - wiper arm, Includes: Ref. 6 - 13

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - pivot (Order D71415)

1шт.

7

D71417

SPECIAL WASHER

WASHER - fiber

1шт.

8

D71418

WASHER

- steel

1шт.

9

D71419

NUT

-, Serial Range: shaft-bracket

1шт.

10

D71420

CAP

COVER - rubber

1шт.

11

D71421

TOOL

DRIVER - knurled, wiper arm

1шт.

12

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - lock, 5/16" internal Shakeproof

1шт.

13

D71422

NUT

-, Serial Range: arm-driver

1шт.

14

D71416

SCREW

-, Serial Range: shaft-bracket

2шт.

17

D71427

LINK,85.85mm L

- wiper shaft to drive arm

1шт.

18

D71414

CLIP

- spring, link fastener

2шт.

19

A22431

WASHER

- link clip

2шт.

20

F64210

LEVER

ARM - drive, Serial Range: motor-link

1шт.

21

D71411

WASHER

- spring

1шт.

22

F44452

LOCK NUT

- lock, Serial Range: arm-motor

1шт.

25

182-548

SCREW,Slotted Pan Hd, 1/4"-28 x 3/8"

- 1/4 x 3/8" NF pan head

2шт.

26

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

27

F43789

ARM

- wiper blade, 18" (457.2 MM)

1шт.

27

A165060

WIPER ARM

ARM - wiper blade (Black) 18" (457.2 MM)

1шт.

28

L35261

BLADE

- wiper, 20" (508.9 MM)

1шт.

28

A165059

WIPER

BLADE - wiper (Black) 20" (508 MM)

1шт.
