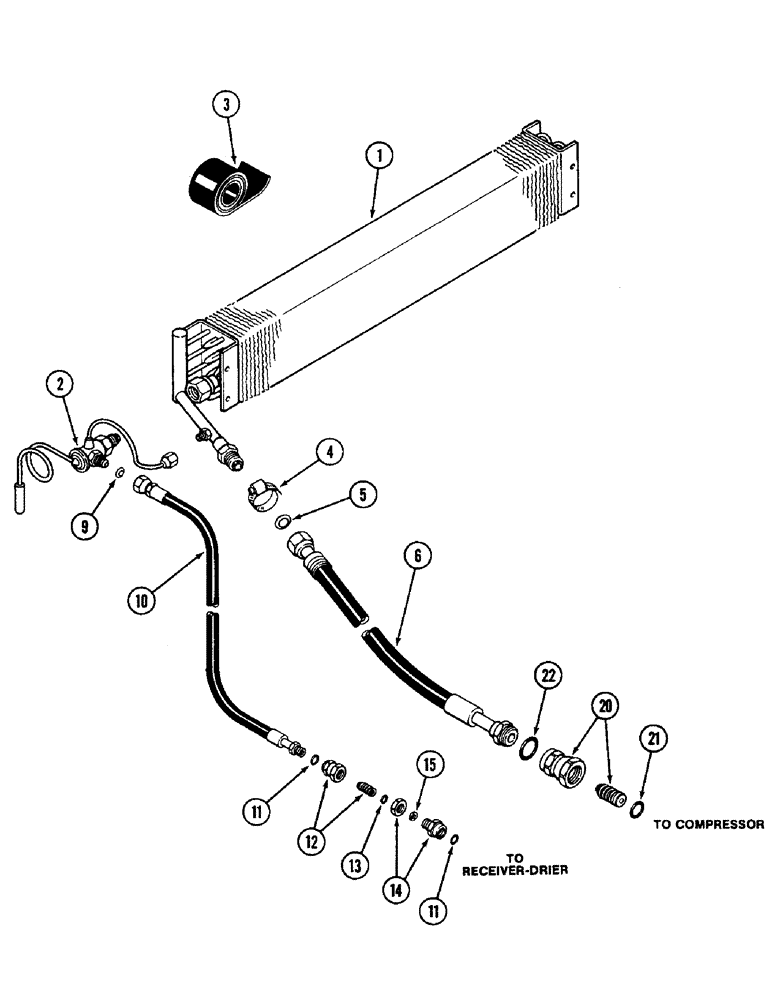

Запчасти Case IH 4890 (9-444) - CAB, AIR CONDITIONING VALVE AND HOSES (09) - CHASSIS/ATTACHMENTS

1

F63870

EVAPORATOR

- condenser

1шт.

2

F64389

VALVE

- expansion

1шт.

3

345-37

TAPE

- insulation, 2-1/2 x 12 x 1/8" (63.50 x 304.8 x 3.18 MM)

1шт.

4

214-266

CLAMP - insulation, 1-3/16" to 1-3/4" (30.16 x 44.45)

1шт.

5

222-996

GASKET,3/4 Tube, Fl, Copper

- copper flare, 3/4" (19.05 MM) Tube

1шт.

6

F64534

HOSE

- to compressor, 1-1/8" OD x 167" long (28.57 x 4241.8 MM) (Replaces F64452)

1шт.

9

222-993

GASKET,3/8 Tube, Fl, Copper

(9.52 mm) 3/8 Tube, Fl, Copper

1шт.

10

F64535

HOSE

- to receiver-drier, 1/2" ID x 160" long (12.7 x 4064 MM) (Replaces F64453)

1шт.

11

A61195

O-RING,0.364" ID x 0.5" OD

- coupling, 23/64 x 1/2 x 1/16" (9.14 x 12.7 x 1.52 MM)

2шт.

12

A42663

COUPLING,1/2" - 20 NPT

COUPLING ASSEMBLY - receiver-drier hose, cab, Includes: Ref. 13

1шт.

13

A42665

O-RING,0.239" ID x 0.375" OD x 0.07"

- piston, 1/4 x 3/8 x 1/16" (6.35 x 9.52 x 1.59 MM)

1шт.

14

A61196

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - receiver-drier hose, tractor, Includes: Ref. 15

1шт.

15

A42667

GASKET

- coupling

1шт.

20

A42664

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - compressor hose, Includes: Ref. 21

1шт.

See Figure 9-462 for compressor and other components.

1шт.

21

A42666

O-RING,0.737" ID x 0.943" OD x 0.103"

- piston, 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 MM)

1шт.

22

A61197

O-RING,1.78mm Thk x 27mm ID

- coupling, 1-13/64 x 1-13/16 x 1/16" (30.56 x 46.04 x 1.59 MM)

1шт.
