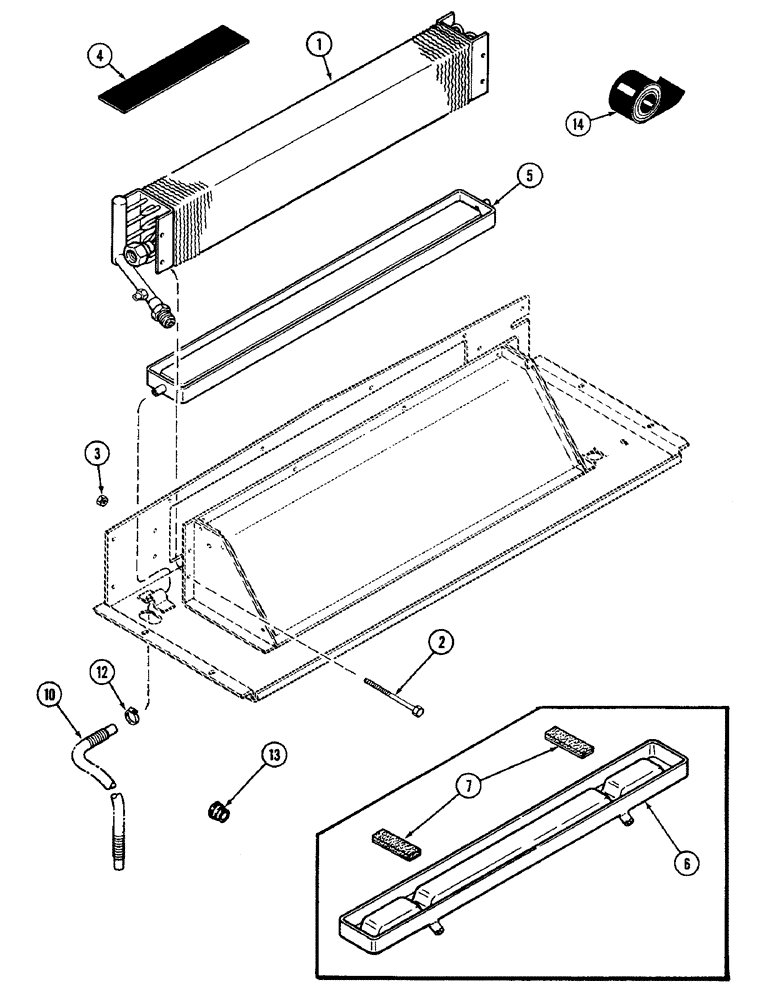

Запчасти Case IH 4890 (9-442) - CAB, AIR CONDITIONING EVAPORATOR, CAB SERIAL NO. 12033998 & AFTER (09) - CHASSIS/ATTACHMENTS

1

F63870

EVAPORATOR

- evaporator, air conditioning

1шт.

2

113-49

BOLT,Hex, 1/4" - 20 x 4", Gr 5

- 1/4 x 4" NC hex. (Grade 5)

4шт.

3

86625061

NUT,1/4"-20, GB

NUT - lock, 1/4" NC hex.

4шт.

4

345-37

TAPE

- insulator, 2-1/2 x 12 x 1/8" (63.5 x 304.8 x 3.05 MM)

3шт.

5

F64487

PAN

- condensation

1шт.

Cab serial no. 12036610 and after.

1шт.

6

F64529

PAN

- condensation

1шт.

Prior to cab serial no. 12036610.

1шт.

7

F63670

SEAL

- pan to core, 1 x 3-1/2 x 1/4" (25.4 x 88.9 x 6.35 MM)

2шт.

Prior to cab serial no. 12034771.

1шт.

10

NSS

NOT SOLD SEPARAT

HOSE - drain, 90" (2 286.0 MM) Long (Order A64508)

2шт.

F64508

HOSE,0.43" ID x 100' Bulk

- corrugated 0.43" ID x 100' Bulk

1шт.

12

214-300

CLAMP

- hose, 7/16 to 9/16" (11.11 to 14.29 MM)

2шт.

13

F64504

BUSHING

- hose

2шт.

14

A42902

SEALING STRIP

INSULATION - 2-1/2" wide x 30' long (63.5 MM x 9.14 M)

1шт.
