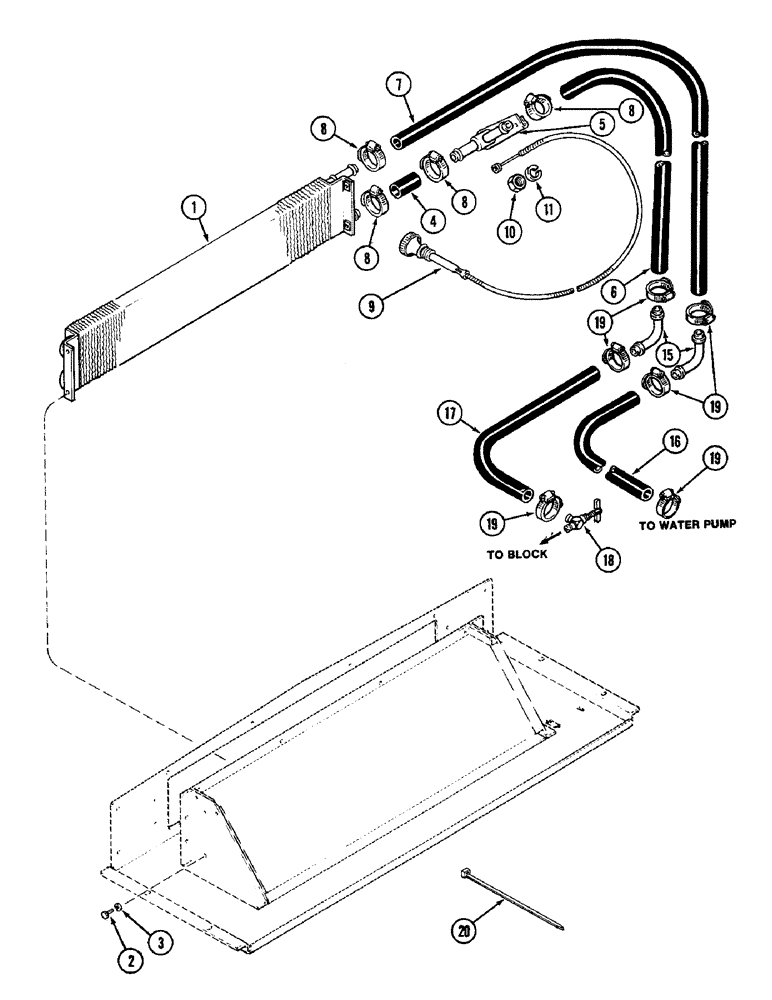

Запчасти Case IH 4890 (9-438) - CAB, HEATER GROUP (09) - CHASSIS/ATTACHMENTS

1

F63680

CORE

- heater

1шт.

2

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

4

NSS

NOT SOLD SEPARAT

HOSE - core to valve, 2" (50.8 MM) Long (Order A42610)

1шт.

5

F63865

VALVE

- heat control

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - valve outlet, 77" (1 955.8 MM) Long (Order A42610)

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE - core inlet, 81" (2 057.4 MM) Long (Order A42610)

1шт.

8

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16" to 1-1/16" (14.29 to 26.99 MM)

4шт.

9

A42614

CABLE

ASSEMBLY - control, heat valve, Includes: Ref. 10 and 11

1шт.

10

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

11

92-6

LOCK WASHER,3/8"

1шт.

15

A60823

ELBOW

- hose

2шт.

16

NSS

NOT SOLD SEPARAT

HOSE - water pump, 75" (1 905 MM) Long (Order A42610)

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE - from outer manifold, 53" (1 854.2 MM) Long (Order A42610)

1шт.

18

A16764

VALVE

- shutoff

1шт.

19

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16" to 1-1/16" (14.29 to 26.99 MM)

6шт.

20

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - nylon, hose harness

1шт.

A42610

LARGE HOSE

HOSE - 5/8" ID x 1" OD (15.87 x 25.4 MM) 50' (15.24 M), Serial Range: Cut-length

1шт.
