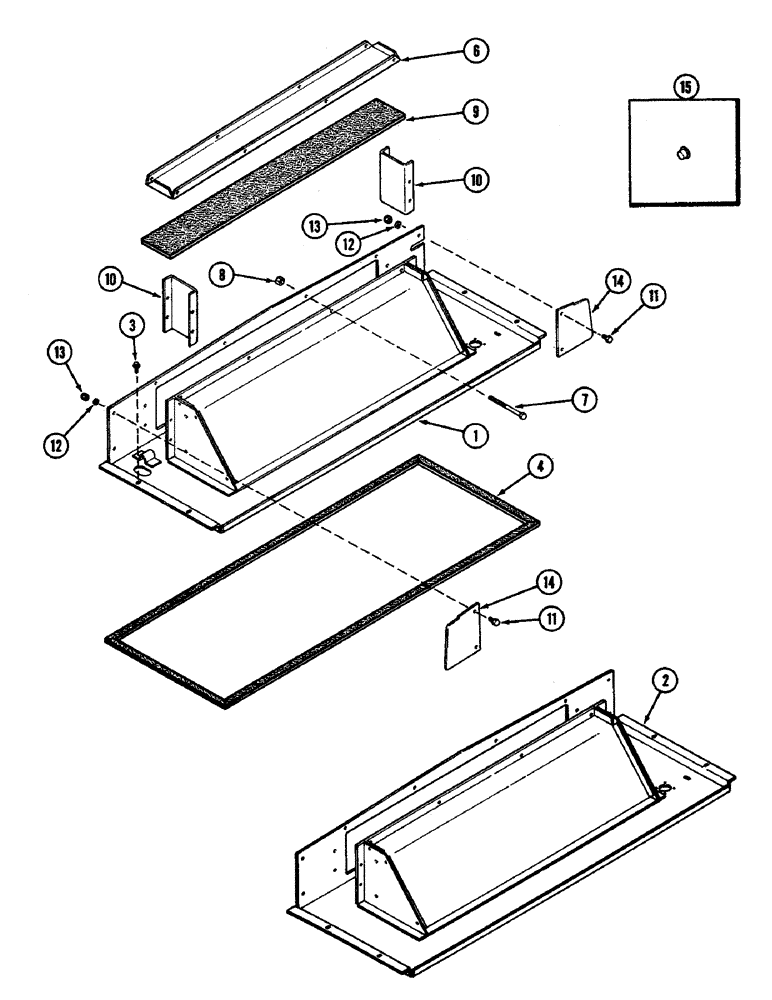

Запчасти Case IH 4890 (9-436) - CAB, AIR PASSAGE GROUP (09) - CHASSIS/ATTACHMENTS

1

F98173

DUCT

CHANNEL - air passage

1шт.

Cab serial no. 12036610 and after.

1шт.

2

F98250

CHANNEL

- air passage (Replaces F98237) (Order F98173)

1шт.

Prior to cab serial no. 12036610.

1шт.

3

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, #10-16 x 1/2" washer head

4шт.

4

NSS

NOT SOLD SEPARAT

SEAL - duct floor, 111-1/2" (2832.1 MM) Long (Order F64119)

1шт.

F64119

SEALING STRIP

- seal, 100' (30.48 M) Roll, Serial Range: (Cut-length)

1шт.

6

F63841

COVER

- top, air passage

1шт.

7

113-49

BOLT,Hex, 1/4" - 20 x 4", Gr 5

- 1/4 x 4" NC hex. (Grade 5)

8шт.

8

86625061

NUT,1/4"-20, GB

NUT - lock, 1/4" NC hex.

8шт.

9

F63671

SEAL

- top cover

1шт.

10

F64013

PLATE ASSY.

PLATE - filler (Without air conditioning)

2шт.

11

113-39

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

- 1/4 x 1/2" NC hex. (Grade 5)

4шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

14

F63614

PLATE ASSY.

PLATE - end, air passage

2шт.

15

353-3

PLUG,Cap, .302" OD

- plastic, 5/16" hole (7.87 MM) (Without heater)

4шт.

15

353-14

PLUG,Cap, .787" OD

- plastic, 13/16" hole (20.57 MM) (Without heater)

2шт.

Ref #15 - Should be 353-62

1шт.
