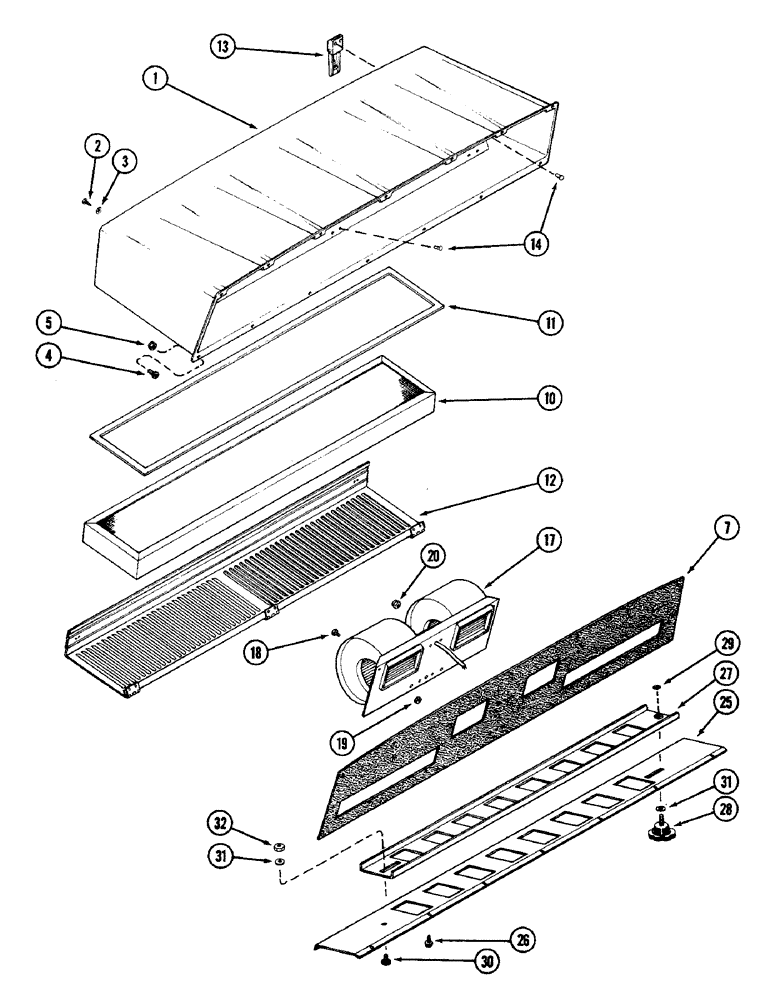

Запчасти Case IH 4890 (9-430) - CAB, AIR FILTER AND BLOWER (09) - CHASSIS/ATTACHMENTS

1

F64772

COVER

HOUSING - filter and blower (Replaces F64058)

1шт.

2

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, #10-16 x 3/4" round head

7шт.

3

F63765

WASHER

- finishing

7шт.

4

163-37

SCREW,Sl Hex Wshr Hd, #10 - 32 x 1", Gr 5

- #10-32 x 1" hex. head slotted (Replaces 187-557)

7шт.

5

131-859

JAM NUT

- #10-32 J-type (Replaces F64374 push nut)

7шт.

7

F63592

SEAL

-, Serial Range: housing-cab

1шт.

10

F64318

AIR FILTER

FILTER - cab air

1шт.

11

F63669

SEAL

-, Serial Range: filter-housing

1шт.

Cab serial no. 12015702 and after.

1шт.

11

F64515

SEAL

-, Serial Range: filter-housing

1шт.

Prior to cab serial no. 12015702.

1шт.

12

F89926

COVER

- filter

1шт.

13

F64066

LATCH

- filter cover

2шт.

14

151-518

RIVET,Pop, 1/8" x .440"

- 1/8" pop type

10шт.

17

REF

INSTRUCTION

BLOWER ASSEMBLY - (See Figure 9-432 and 9-434)

1шт.

18

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, #10-16 x 1/2" hex. head

2шт.

19

86625061

NUT,1/4"-20, GB

NUT - lock, 1/4" NC hex.

2шт.

20

353-700

BUSHING

- blower wire hole, 3/8" diameter

1шт.

25

F64705

PLATE

- air circulating (Replaces F64081)

1шт.

26

187-579

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, #10-16 x 1/2" hex. washer head

15шт.

27

F98175

DOOR

- air circulating

1шт.

28

F64253

KNOB

- door

1шт.

29

T39518

SNAP RING,#25, Ext

Ring, Snap, , knob #25, Ext

1шт.

30

111-260

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT - 5/16 x 3/4" NC round head square neck

1шт.

31

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16" (8.73 x 17.46 x 1.59 MM)

2шт.

32

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - lock, 5/16" NC hex.

1шт.
