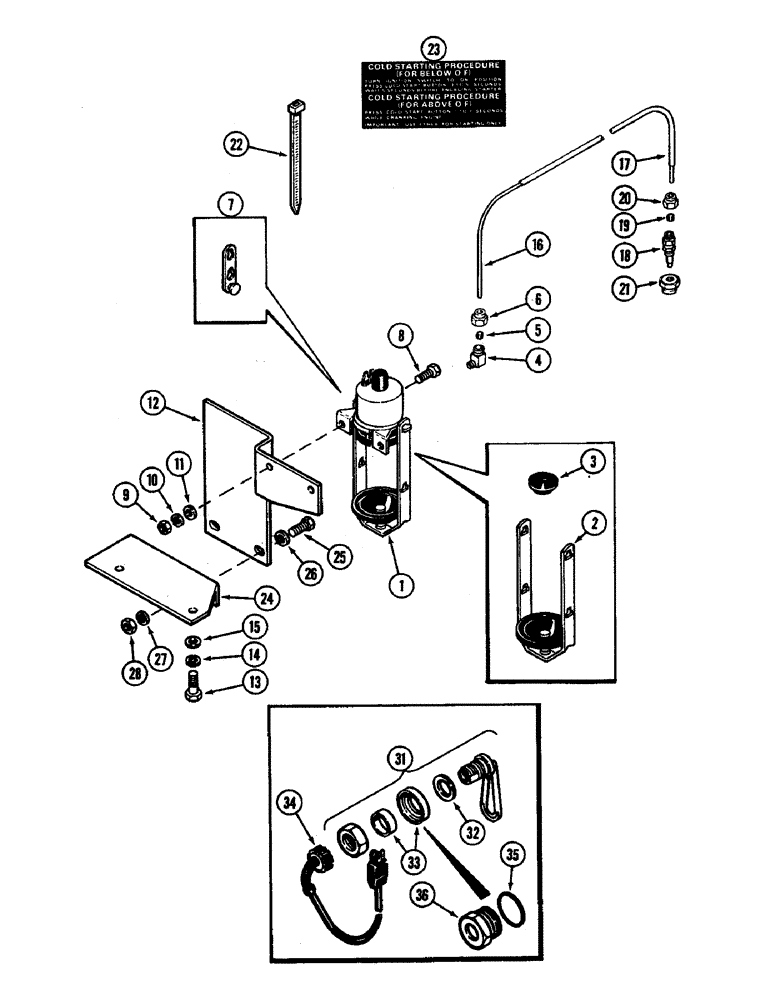

Запчасти Case IH 4890 (2-13A) - ETHER STARTING AID, 674 CUBIC INCH DIESEL ENGINE, P.I.N. 8860100 AND AFTER (02) - ENGINE

1

A143381

SOLENOID

ASSEMBLY - ether injection, Includes: Ref. 2 - 6

1шт.

2

D77648

BAIL

HANGER ASSEMBLY - ether can

1шт.

3

R30786

GASKET

- ether can

1шт.

4

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Assy, Incl. Ref 5 & 6 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

(3.2 mm) 1/8" Tube, Comp

1шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

- for 1/8" tube (3.2 mm) 5/16"-24, 45º Fl, Comp

1шт.

7

R30812

LINK

- hanger extension

2шт.

8

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

11

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16" (8.73 x 17.46 x 1.59 MM)

2шт.

12

A165456

BRACKET

- solenoid support

1шт.

13

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

14

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

2шт.

15

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 MM)

2шт.

16

A161450

TUBE

- plastic, solenoid to injector, 1/8" OD x 24" (3.2 x 609.6 MM)

1шт.

17

A61632

TUBE

- plastic cover, 1/8" OD x 18-1/2" (3.2 x 470 MM)

1шт.

18

A145069

NOZZLE INJECTION

INJECTOR ASSEMBLY - turbocharger intake, Includes: Ref. 19 and 20

1шт.

19

222-650

SLEEVE,1/8" Tube, Comp

(3.2 mm) 1/8" Tube, Comp

1шт.

20

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

- for 1/8" tube (3.2 mm) 5/16"-24, 45º Fl, Comp

1шт.

21

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - reducer, 1/4" PT to 1/8" PT

1шт.

22

A160890

STRAP

- harness, plastic

2шт.

23

321-2946

DECAL

- cold start procedure

1шт.

24

A165455

BRACKET

SUPPORT - solenoid bracket

1шт.

25

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

26

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64" (9.5 x 22.2 x 2 MM)

2шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

A155436

RESISTOR

HEATER KIT - engine coolant, cylinder block, Includes: Ref. 31 - 34

1шт.

Item #30 A155436 subs to 3 diff. part #'s depending on the use. A182017 & A182020 fit in a frost plug hole approx. 1-7/8" dia. A182059 has a 1" thread.

1шт.

31

NSS

NOT SOLD SEPARAT

ELEMENT - heater

1шт.

32

A45114

GASKET

- element

1шт.

33

NSS

NOT SOLD SEPARAT

PLUG AND SPACER - element (Discard and use ref. 35 and 36)

1шт.

34

A44813

CABLE EXTENSION

CORD - 12" (304.8 MM)

1шт.

35

A45719

O-RING,39.3 mm ID x 1.6 mm

- fitting

1шт.

36

A150514

FITTING

- element

1шт.
