Запчасти Case IH 4890 (9-408) - CAB, FRAME AND ROOF (09) - CHASSIS/ATTACHMENTS

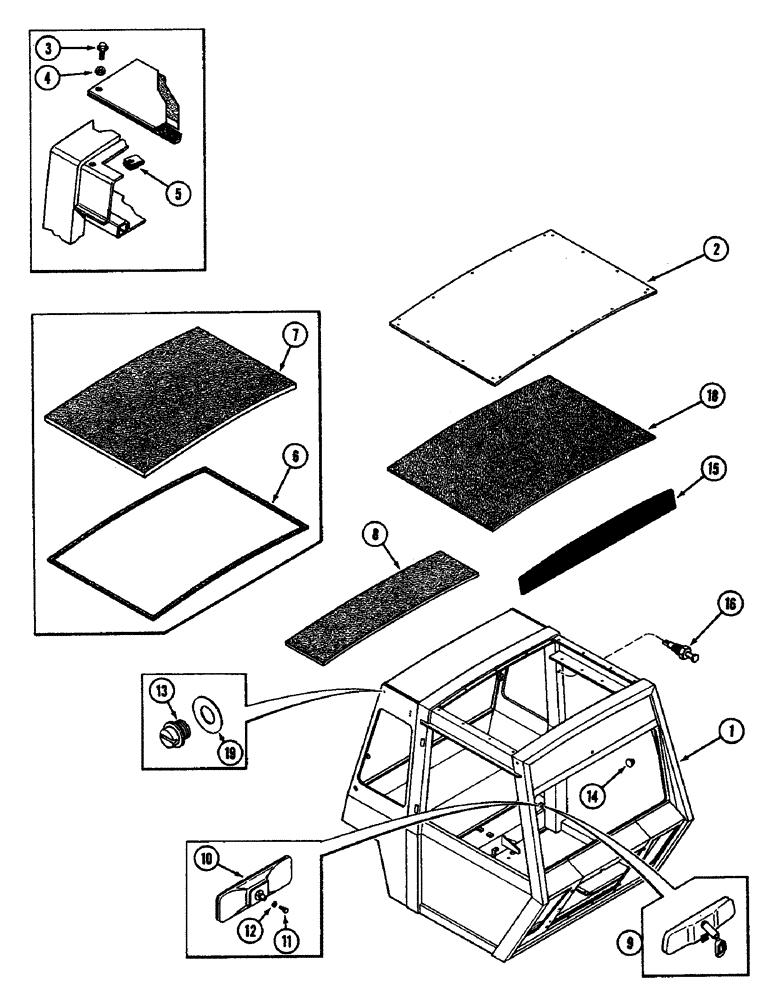

Схема запчастей Case IH 4890 - (9-408) - CAB, FRAME AND ROOF (09) - CHASSIS/ATTACHMENTS
6
13
18
12
8
10
1
14
19
15
5
2
7
4
3
11
9
16

Артикул

Название

Примечание

Количество

F98331

CAB BODY

CAB ASSEMBLY - with heater (Machine item) (Order F98288)

1шт.

F98331

CAB BODY

CAB ASSEMBLY - with heater and air conditioning (Machine item) (Order F98288)

1шт.

F98331

CAB BODY

CAB ASSEMBLY - with heater and radio speaker (Machine item) (Order F98288)

1шт.

F98331

CAB BODY

CAB ASSEMBLY - with heater, air conditioning and radio speaker (Machine item) (Order F98288)

1шт.

F98331

CAB BODY

CAB ASSEMBLY - with heater, air conditioning and radio speakers (Machinery item)

1шт.

2

F64794

ROOF

- cab (Replaces F64316)

1шт.

3

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

- machine, 1/4 x 1" NC hex. washer head

18шт.

4

F64531

SEALING WASHER

WASHER - sealing

18шт.

5

131-617

NUT,Ret, J, 1/4"-20

- speed, 1/4" type J

18шт.

6

F64532

SEAL

- roof (Replaces A42676) (Order ref 18)

1шт.

Prior to cab serial no. 12071891.

1шт.

7

F64430

FOAM

- temperature barrier (Order ref 18)

1шт.

Prior to cab serial no. 12071891.

1шт.

8

F63352

FOAM

- rear, temperature barrier

1шт.

9

F64550

MIRROR

- inside, rear view

1шт.

Cab serial no. 12034360 and after.

1шт.

10

F89695

MIRROR

- inside, rear view

1шт.

Prior to cab serial no. 12034360.

1шт.

11

163-18

SCREW,Hex, #10 - 24 x 3/8"

- machine, #10-24 x 3/8" hex. head

1шт.

Prior to cab serial no. 12034360.

1шт.

12

195-511

WASHER,#10

- 13/64 x 15/32 x 1/16" (5.16 x 11.91 x 1.59 MM)

1шт.

Prior to cab serial no. 12034360.

1шт.

13

353-550

PLUG,Slotted, 1/2"-13

Plastic (Light & lift holes) Slotted, 1/2"-13

4шт.

14

353-408

PLUG,Dome, .750" hole, Nylon

- 3/4" push type (Without air conditioning)

2шт.

15

A42582

DECAL

- front upper panel

1шт.

16

F63895

SWITCH

- dome light, door opening (See Figure 4-92 and 4-94)

1шт.

19

A165395

WASHER,.50mm ID x 1.0mm OD x .060 Thk

- plug

4шт.

Выбрано товаров: 27
