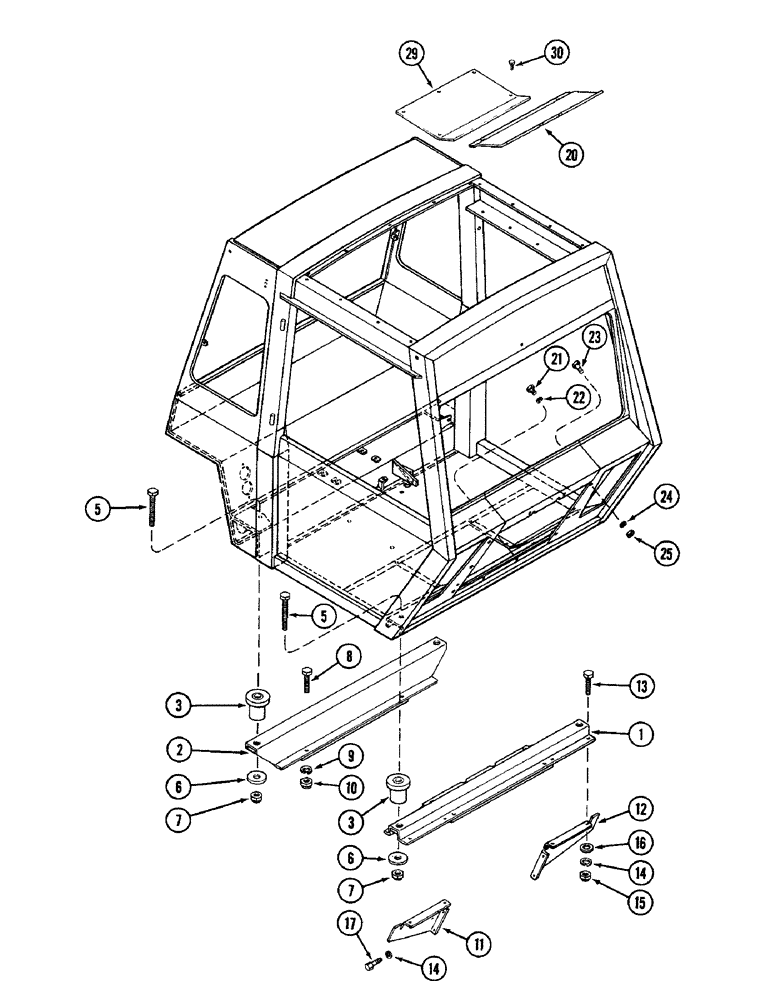

Запчасти Case IH 4890 (9-406) - CAB MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

F89768

CHANNEL

- front, cab mounting

1шт.

2

F89767

CHANNEL

-rear, cab mounting

1шт.

3

A140221

MOUNTING PARTS

MOUNT - rubber, Serial Range: cab-channel

4шт.

5

114-626

BOLT,Hex, 5/8" - 18 x 3-1/2", Gr 5

- 5/8 x 2-1/2" NC hex. (Grade 5)

4шт.

6

A27903

WASHER

- 21/32 x 2-1/8 x 3/8" (16.67 x 53.97 x 9.52 MM)

4шт.

7

131-60

LOCK NUT,5/8"-18

NUT - lock, 5/8" NF hex.

4шт.

8

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

9

192-215

LOCK WASHER,5/8"

5/8"

8шт.

10

129-567

NUT

- 5/8" NC hex.

8шт.

11

F63573

GUSSET

- front channel to RH frame

1шт.

12

F63572

GUSSET

- front channel to LH frame

1шт.

13

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

16

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

4шт.

17

187-1305

SELF-TAP SCREW,Hex, 3/8" - 18 x 1 1/4"

SCREW - self-tapping, 3/8 x 1-1/4" hex.

4шт.

20

F89769

DOOR

- lower, instrument console

1шт.

21

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

23

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

29

F63508

DOOR

-access, cab floor

1шт.

30

187-1073

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 5/8"

SCREW - self-tapping, 1/4 x 5/8" hex.

5шт.
