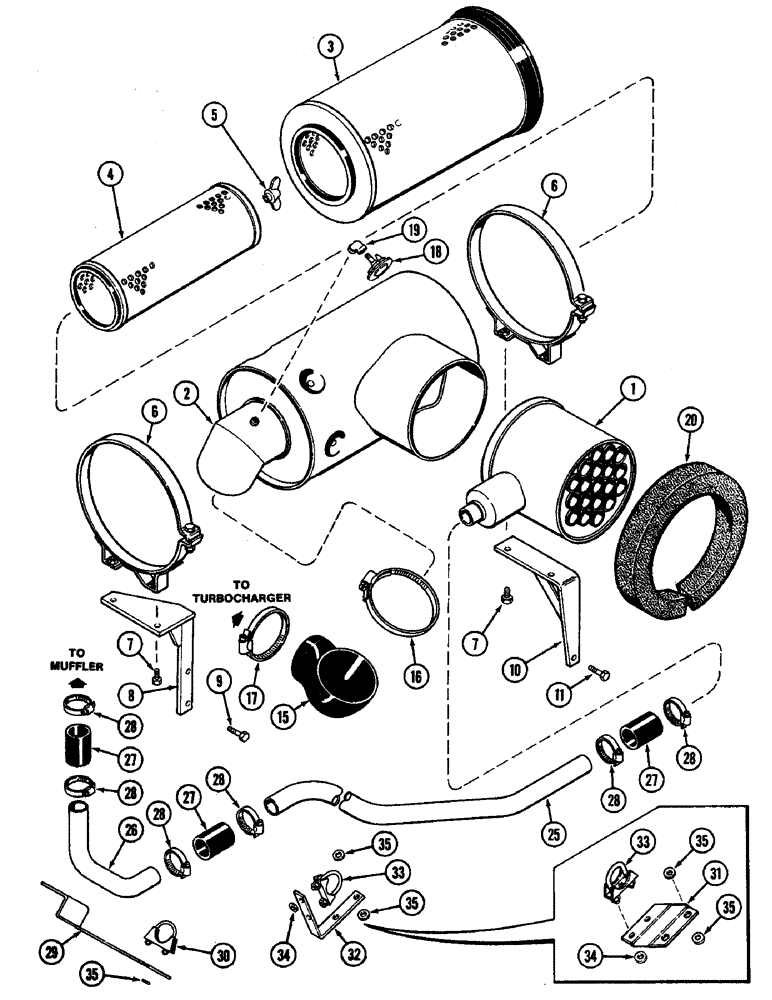

Запчасти Case IH 4890 (2-10) - AIR INDUCTION SYSTEM, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A142579

CLEANER

PRE-CLEANER ASSEMBLY - engine (Includes clamp assembly)

1шт.

A146326

CLEANER

AIR CLEANER ASSEMBLY - engine, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - air cleaner (Order A146326)

1шт.

3

A45694

AIR CLEANER

ELEMENT - outer (Includes wing nut)

1шт.

4

A45695

AIR CLEANER

ELEMENT - inner

1шт.

5

F91761

WING NUT

- element retainer

1шт.

6

A138724

CLAMP

ASSEMBLY - mounting (Includes bolt and nut)

2шт.

7

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Nylock) (Replaces 113-298) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

8

A138725

BRACKET

- mounting, air, Serial Range: cleaner-head

1шт.

9

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

2шт.

10

A165451

BRACKET

- mounting, air cleaner to manifold (Replaces A138730)

1шт.

11

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

(Replaces 813-10030) Hex, M10 x 30, 8.8

2шт.

15

A146324

HOSE

- connector, air, Serial Range: cleaner-turbocharger

1шт.

16

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - hose

1шт.

17

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose, 3-9/16" to 4-1/2" (90.5 MM to 114.3 MM)

1шт.

18

A154782

SWITCH

- sender, air restriction

1шт.

19

221-1385

ELBOW

- pipe, 1/8" PT (45 degree)

1шт.

20

A166721

SEAL

- pre-cleaner, 2" square x 38" (50.8 x 965.2 MM)

1шт.

25

A152024

TUBE

- aspirator (At pre-cleaner)

1шт.

26

A148146

TUBE

- aspirator (At muffler)

1шт.

27

A29928

HOSE,1.50" ID x 5.50", SAE 20R2 CLASS R OR SAE 20R4 CLASS-S

RADIATOR HOSE, , Coupling, Aspirator Tube 1.50" ID x 5.50", SAE 20R2 CLASS R OR SAE 20R4 CLASS-S

3шт.

28

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

(33.3 mm to 57.2 mm), aspirator tube #28, 1.31/2.25 Type F Worm

6шт.

29

A148210

SUPPORT

- aspirator tube

1шт.

30

L13452

CLAMP,195-3/8" L

ASSEMBLY - aspirator tube to support

1шт.

31

NSS

NOT SOLD SEPARAT

BRACKET - aspirator tube support (Order A161136)

1шт.

32

A161136

BRACKET

- aspirator tube support (Replaces A152023)

1шт.

33

A152446

CLAMP

- tube, aspirator

1шт.

34

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16" (8.73 x 17.46 x 1.59 MM), aspirator tube

2шт.

35

195-522

WASHER,5/16"

- 3/8 x 3/4 x 1/16" (9.52 x 19.05 x 1.59 MM), aspirator tube

4шт.
