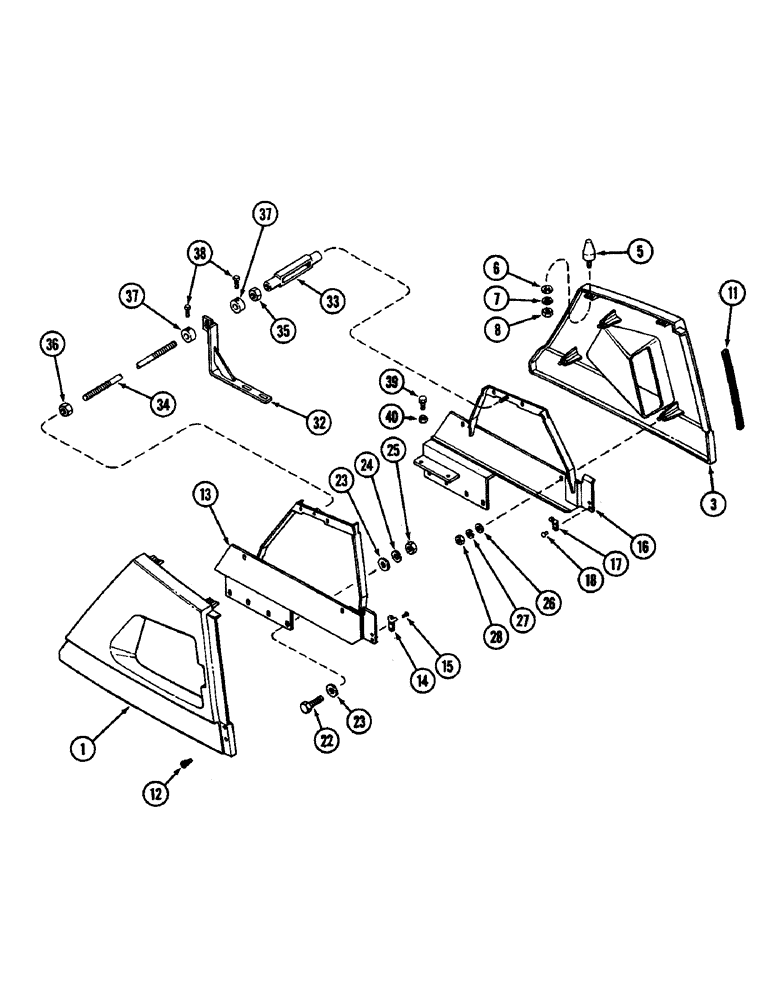

Запчасти Case IH 4890 (9-384) - REAR HOOD, P.I.N. 8857928 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

A161323

GUARD

HOOD ASSEMBLY - right rear

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

3

A161344

GUARD

HOOD ASSEMBLY - left rear

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

5

A149863

GUIDE

- top hood

4шт.

Part of upper hood repair kit, P/N A162320

1шт.

6

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16" (7.94 x 19.05 x 1.59 mm)

4шт.

Part of upper hood repair kit, P/N A162320

1шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

Part of upper hood repair kit, P/N A162320

1шт.

8

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

Part of upper hood repair kit, P/N A162320

1шт.

11

A162798

CLUTCH FACING

SEAL - rear hood side (Order 1-A151423)

2шт.

Part of upper hood repair kit, P/N A162320

1шт.

12

A161780

BUMPER

- rear hood rubber

4шт.

Part of upper hood repair kit, P/N A162320

1шт.

13

A162876

BRACKET

ASSEMBLY - rear hood, right (Replaces A161926), Includes: Ref. 14 and 15

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

14

L47158

BRACKET

- latch hook

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

15

151-554

RIVET

- 3/16 x 1/4" button head

2шт.

Part of upper hood repair kit, P/N A162320

1шт.

16

A162877

BRACKET

ASSEMBLY - rear hood, left (Replaces A161925), Includes: Ref. 17 and 18

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

17

L47158

BRACKET

- latch hook

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

18

151-554

RIVET

- 3/16 x 1/4" button head

2шт.

Part of upper hood repair kit, P/N A162320

1шт.

22

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Bracket to side panel Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

Part of upper hood repair kit, P/N A162320

1шт.

23

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 7/64" (14.29 x 34.92 x 2.78 MM)

8шт.

Part of upper hood repair kit, P/N A162320

1шт.

24

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

Part of upper hood repair kit, P/N A162320

1шт.

25

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

Part of upper hood repair kit, P/N A162320

1шт.

26

195-102

WASHER,1/4"

- hood to support brackets, 5/16 x 3/4 x 1/16" (7.94 x 19.05 x 1.59 mm)

6шт.

Part of upper hood repair kit, P/N A162320

1шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

Part of upper hood repair kit, P/N A162320

1шт.

28

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

6шт.

Part of upper hood repair kit, P/N A162320

1шт.

32

A162889

BRACKET

- rear tie rod support (Replaces A161847)

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

33

F36877

TURNBUCKLE

- hood adjusting

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

34

A161624

ROD

TIE ROD - rear housing

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

35

129-540

NUT,Jam, 1/2"-13, G5, LH

- 1/2" NC hex., left hand thread

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

36

129-105

NUT,Hex, 1/2" - 13, Gr 5

RH thread 1/2"-13, G5

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

37

D37570

COLLAR

- lock

2шт.

Part of upper hood repair kit, P/N A162320

1шт.

38

85-410

SET SCREW,Sq Hd, 1/4"-20 x 5/8"

SCREW - 1/4 x 5/8" NC square head set

2шт.

Part of upper hood repair kit, P/N A162320

1шт.

39

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

Hood adjusting Hex, 3/8"-16 x 2 1/2", G5, Full Thd

4шт.

40

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Adjusting bolt 3/8"-16, G5

4шт.

A162320

KIT

- upper hood repair, front and rear, Include: Ref. 1 - 38 on pages 9-382 and 9-384

1шт.
