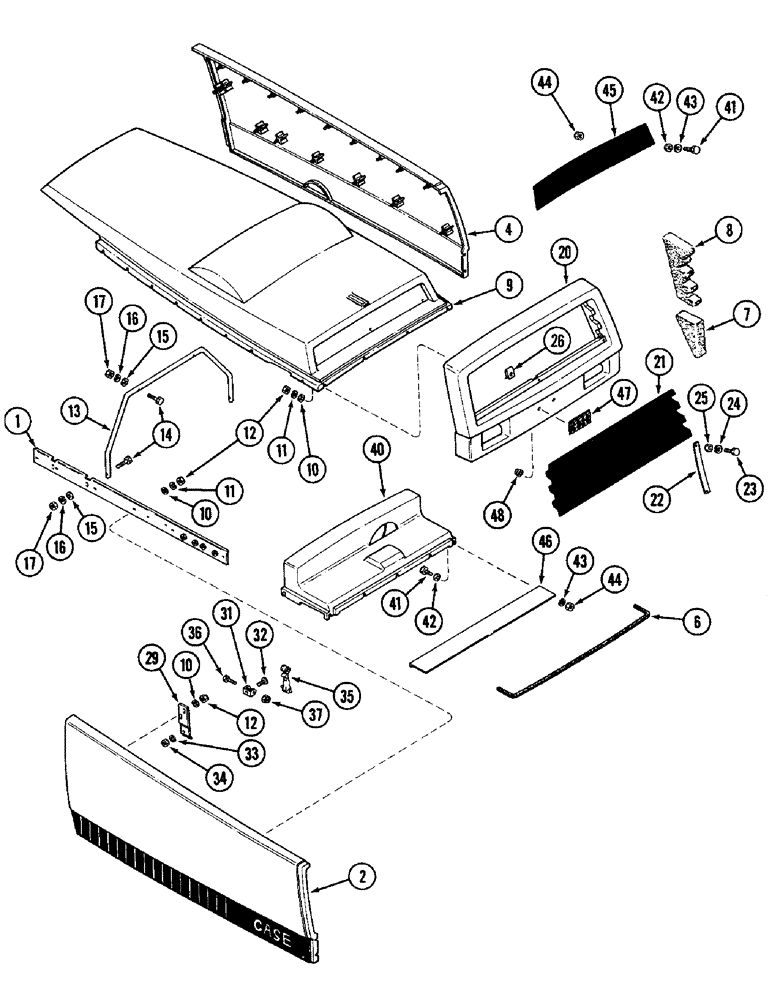

Запчасти Case IH 4890 (9-382) - FRONT HOOD AND UPPER GRILLE, P.I.N. 8857928 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

A161609

BRACKET

SUPPORT - hood lifting, right

1шт.

1

A161608

BRACKET

SUPPORT - hood lifting, left

1шт.

2

A160392

PANEL

- hood side, right, includes decal

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

321-4960

DECAL

- hood side (See Figure 9-402)

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

4

A162054

PANEL

- hood side, left, includes decal

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

321-4961

DECAL

- hood side (See Figure 9-402)

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

6

A149860

SEAL PROTECTION

- panel

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

7

A162645

SEAL

FOAM - radiator sealing (Replaces A162424)

2шт.

Part of upper hood repair kit, P/N A162320

1шт.

8

A162423

SEAL

FOAM - radiator sealing, upper

2шт.

Part of upper hood repair kit, P/N A162320

1шт.

9

A161497

PANEL

- hood top

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

10

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16" (7.94 x 1905 x 1.59 mm)

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

12

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

13

A161625

SUPPORT

- center

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

14

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

4шт.

Part of upper hood repair kit, P/N A162320

1шт.

15

195-518

WASHER,1/4", SAE

- 9/32 x 5/8 x 5/64" (7.14 x 15.87 x 1.98 mm)

4шт.

Part of upper hood repair kit, P/N A162320

1шт.

16

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

Part of upper hood repair kit, P/N A162320

1шт.

17

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

Part of upper hood repair kit, P/N A162320

1шт.

20

A161322

GUARD

GRILLE - upper

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

21

A162565

SCREEN

- grille (Replaces A161628)

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

22

A149604

RETAINER

- screen

2шт.

Part of upper hood repair kit, P/N A162320

1шт.

23

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

Part of upper hood repair kit, P/N A162320

1шт.

24

192-83

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

Part of upper hood repair kit, P/N A162320

1шт.

25

195-133

WASHER,5/16" x 3/4" x .065"

- 5/16 x 3/4 x 1/16" (7.94 x 19.05 x 1.59 MM)

6шт.

Part of upper hood repair kit, P/N A162320

1шт.

26

131-603

NUT,Tinn, U, 1/4"-20

- 1/4" NC Tinnerman U type

6шт.

Part of upper hood repair kit, P/N A162320

1шт.

29

A160964

PLATE

- latch hook, right

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

29

A160944

PLATE

- latch hook, left

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

31

L47159

BRACKET

- hook

2шт.

Part of upper hood repair kit, P/N A162320

1шт.

32

182-515

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

BOLT - 5/16 x 5/8" NC pan head

2шт.

Part of upper hood repair kit, P/N A162320

1шт.

33

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

Part of upper hood repair kit, P/N A162320

1шт.

34

9635082

NUT,5/16" - 18, Gr 5

2шт.

Part of upper hood repair kit, P/N A162320

1шт.

35

L47157

HOOK

- hood latch

2шт.

Part of upper hood repair kit, P/N A162320

1шт.

36

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Hook to bracket Hex, 5/16"-18 x 2", G5

2шт.

Part of upper hood repair kit, P/N A162320

1шт.

37

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16" NC hex. lock

2шт.

Part of upper hood repair kit, P/N A162320

1шт.

40

A161518

GUARD

HOOD - air intake, inner

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

41

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

8шт.

Part of upper hood repair kit, P/N A162320

1шт.

42

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16" (7.94 x 19.05 x 1.59 mm)

11шт.

Part of upper hood repair kit, P/N A162320

1шт.

43

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

Part of upper hood repair kit, P/N A162320

1шт.

44

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

Part of upper hood repair kit, P/N A162320

1шт.

45

A162567

SCREEN

- air intake

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

46

A161516

PLATE

- air baffle

1шт.

Part of upper hood repair kit, P/N A162320

1шт.

47

321-4739

EMBLEM

PLATE - name, CASE

1шт.

48

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - 1/4" self tapping

2шт.

49

A160247

STUD

1шт.

A162320

KIT

- upper hood repair, front and rear, Includes: Ref. 2 - 46 on Figures 9-382 and 9-384, Replaces A172320

1шт.
