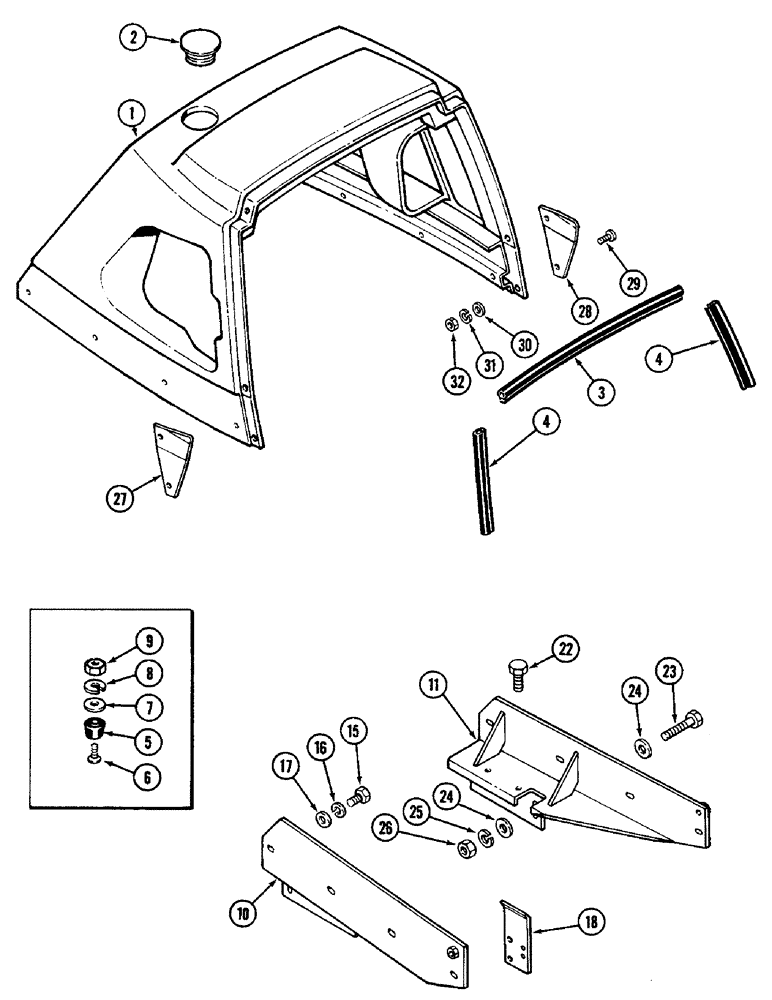

Запчасти Case IH 4890 (9-380) - REAR HOOD, PRIOR TO P.I.N. 8857928 (09) - CHASSIS/ATTACHMENTS

1

A151217

GUARD

HOOD - rear

1шт.

2

A148810

CAP

- brake fluid inspection

1шт.

3

A151423

SEAL

- hood top, 24" (609.6 MM) Long

1шт.

4

A162798

CLUTCH FACING

SEAL - hood sides, 12" (304.8 MM) Long (Replaces A151424 and A149862) (Order A151423, item 3)

2шт.

5

A151425

FENDER

BUMPER - rubber

2шт.

6

182-541

SCREW,Cross Pan Hd, #10-24 x 3/4"

- #10 x 3/4" NC pan head

2шт.

7

195-513

WASHER,#10

- 7/32 x 1/2 x 3/64" (5.56 x 12.7 x 1.19 MM)

2шт.

8

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

9

129-17

NUT,Hex, #10 - 24

NUT - #10 NC hex.

2шт.

10

A151427

BRACKET

- RH, hood mounting

1шт.

11

A151429

BRACKET

- LH, hood mounting

1шт.

15

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

10шт.

16

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

10шт.

17

195-525

WASHER,3/8", SAE

- 13/32 x 13/17 x 1/16" (10.32 x 20.64 x 1.59 MM)

8шт.

18

A161064

PLATE

- latch keeper, RH (Replaces A150692)

2шт.

18

A161065

PLATE

- latch keeper, LH (RH shown) (Replaces A150692)

1шт.

22

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

23

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

24

195-108

WASHER,5/8"

- 11/16 x 1-3/4 x 9/64" (17.46 x 44.45 x 3.57 MM)

8шт.

25

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

26

129-107

NUT,5/8"-11, G5

4шт.

27

A162176

GUIDE

- rear hood, right

1шт.

28

A162177

GUIDE

- rear hood, left

1шт.

29

182-527

SCREW,Sl Pan Hd, 1/4" - 20 x 5/8"

BOLT - 1/4 x 5/8" NC pan head

4шт.

30

195-518

WASHER,1/4", SAE

- 9/32 x 5/8 x 5/64" (7.14 x 15.87 x 1.98 mm)

4шт.

31

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

32

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.
