Запчасти Case IH 4890 (9-376) - HOOD HINGE AND LIFT, P.I.N. 8857928 AND AFTER (09) - CHASSIS/ATTACHMENTS

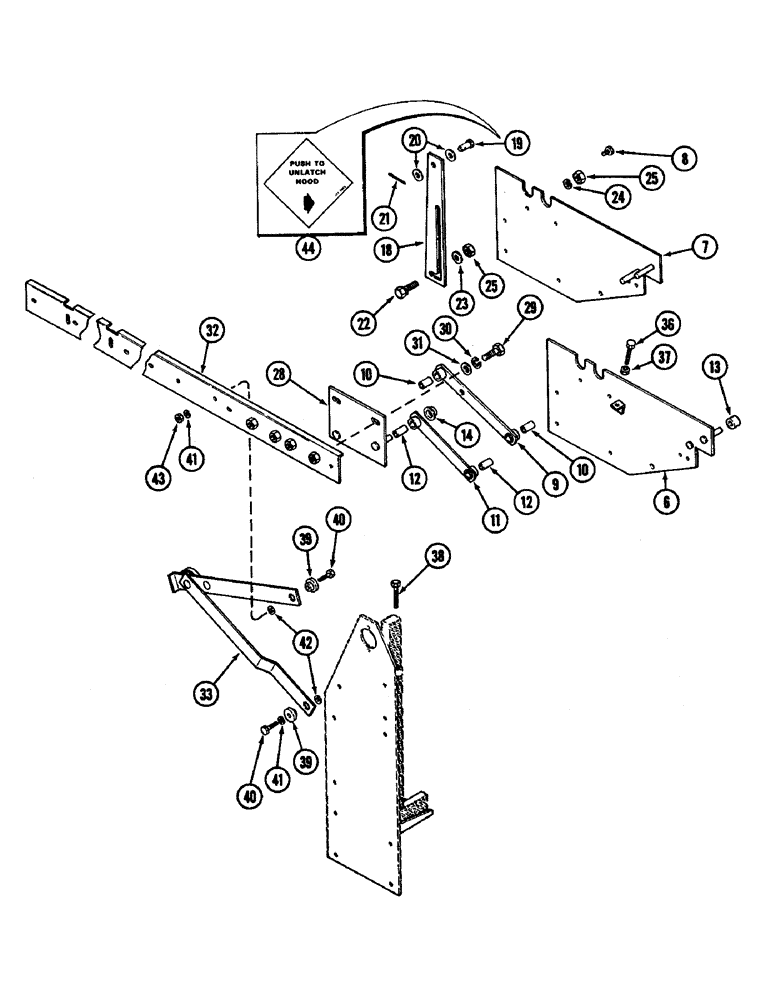

Схема запчастей Case IH 4890 - (9-376) - HOOD HINGE AND LIFT, P.I.N. 8857928 AND AFTER (09) - CHASSIS/ATTACHMENTS
44
41
25
9
8
21
32
39
39
10
19
29
14
40
10
38
24
37
18
43
25
40
30
7
23
42
6
28
36
31
33
41
20
11
22
12
13
12

Артикул

Название

Примечание

Количество

A161955

BRACKET

- lower grille support (See Figure 9-372)

1шт.

Part of hood lifting kit, P/N A162321

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(See Figure 9-372) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

Part of hood lifting kit, P/N A162321

1шт.

195-104

WASHER,3/8"

- flat (See Figure 9-372) 3/8"

4шт.

Part of hood lifting kit, P/N A162321

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

Part of hood lifting kit, P/N A162321

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (See Figure 9-372) 3/8"-16, G5

4шт.

Part of hood lifting kit, P/N A162321

1шт.

6

A161958

PLATE

- hinge pivot, right

1шт.

Part of hood lifting kit, P/N A162321

1шт.

7

A161957

PLATE

- hinge pivot, left

1шт.

Part of hood lifting kit, P/N A162321

1шт.

8

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

6шт.

Part of hood lifting kit, P/N A162321

1шт.

9

A161582

ARM

ASSEMBLY - hinge pivot, lower, Includes: Ref. 10

2шт.

Part of hood lifting kit, P/N A162321

1шт.

10

A59809

BUSHING,12.8mm ID x 15.93mm OD x 25.4mm L

- pivot

2шт.

Part of hood lifting kit, P/N A162321

1шт.

11

A161580

ARM

ASSEMBLY - hinge pivot, upper, Includes: Ref. 12

2шт.

Part of hood lifting kit, P/N A162321

1шт.

12

A59809

BUSHING,12.8mm ID x 15.93mm OD x 25.4mm L

- pivot

2шт.

Part of hood lifting kit, P/N A162321

1шт.

13

A161642

BUSHING

SPACER - front linkage, 33/64 x 1 x 5/8" (13.10 x 25.4 x 15.75 MM)

4шт.

Part of hood lifting kit, P/N A162321

1шт.

14

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

8шт.

Part of hood lifting kit, P/N A162321

1шт.

18

A164841

PLATE

- hinge arm, lock (Replaces A149942)

1шт.

Part of hood lifting kit, P/N A162321

1шт.

19

A12470

PIN

- lock, Serial Range: plate-arm

1шт.

Part of hood lifting kit, P/N A162321

1шт.

20

A30752

WASHER

- 17/32 x 1-1/16 x 1/32" (13.49 x 26.99 x 0.89 MM)

2шт.

Part of hood lifting kit, P/N A162321

1шт.

21

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

1шт.

Part of hood lifting kit, P/N A162321

1шт.

22

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

Part of hood lifting kit, P/N A162321

1шт.

23

A161623

LOCK WASHER

- hinge lock

2шт.

Part of hood lifting kit, P/N A162321

1шт.

24

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

Part of hood lifting kit, P/N A162321

1шт.

25

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

Part of hood lifting kit, P/N A162321

1шт.

28

A162890

PLATE

- hood support pivot, right (Replaces A149724)

1шт.

Part of hood lifting kit, P/N A162321

1шт.

28

A162891

PLATE

- hood support pivot, left (Replaces A149725)

1шт.

Part of hood lifting kit, P/N A162321

1шт.

29

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

Part of hood lifting kit, P/N A162321

1шт.

30

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

Part of hood lifting kit, P/N A162321

1шт.

31

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/16 x 3/32" (13.49 x 26.99 x 2.38 mm)

4шт.

Part of hood lifting kit, P/N A162321

1шт.

32

A161609

BRACKET

SUPPORT - hood lift angle, right

1шт.

Part of hood lifting kit, P/N A162321

1шт.

32

A161608

BRACKET

SUPPORT - hood lift angle, left

1шт.

Part of hood lifting kit, P/N A162321

1шт.

33

A163664

ARM

- hood lift assist, right

1шт.

Part of hood lifting kit, P/N A162321

1шт.

33

A163665

ARM

- hood lift assist, left

1шт.

With Coil Spring, P/N A163963, not serviced separately

1шт.

Part of hood lifting kit, P/N A162321

1шт.

36

A146118

BOLT

- stop

1шт.

Part of hood lifting kit, P/N A162321

1шт.

37

9635082

NUT,5/16" - 18, Gr 5

Stop bolt 5/16"-18, G5

1шт.

Part of hood lifting kit, P/N A162321

1шт.

38

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

2шт.

Part of hood lifting kit, P/N A162321

1шт.

39

A160153

BUSHING

SPACER - arm assist

4шт.

Part of hood lifting kit, P/N A162321

1шт.

40

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

Part of hood lifting kit, P/N A162321

1шт.

41

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

Part of hood lifting kit, P/N A162321

1шт.

42

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

4шт.

Part of hood lifting kit, P/N A162321

1шт.

43

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

Part of hood lifting kit, P/N A162321

1шт.

44

321-3985

DECAL

- lock plate

1шт.

A162321

KIT

- hood lifting, Includes: Ref. 6 - 43, P/N's A161955, 113-207, 195-104, 192-21, 129-103

1шт.

Выбрано товаров: 81
