Запчасти Case IH 4890 (9-374) - HOOD HINGE AND LIFT, PRIOR TO P.I.N. 8857928 (09) - CHASSIS/ATTACHMENTS

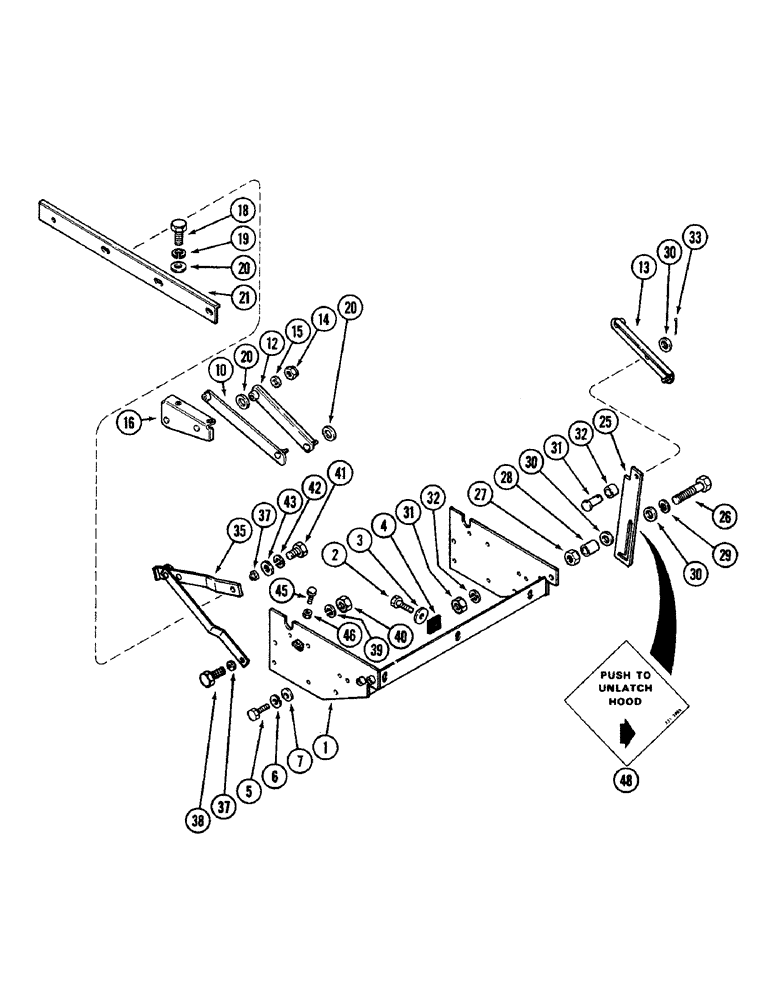

Схема запчастей Case IH 4890 - (9-374) - HOOD HINGE AND LIFT, PRIOR TO P.I.N. 8857928 (09) - CHASSIS/ATTACHMENTS
32
14
13
46
37
20
29
5
16
31
45
48
26
37
31
38
2
41
3
40
30
18
10
25
27
33
21
20
12
28
32
7
43
35
30
42
19
6
39
4
30
20
15
1

Артикул

Название

Примечание

Количество

1

A160073

PLATE

- base, hood hinge

1шт.

2

113-2263

PREV TORQUE BOLT,Locking, 3/8"-16 x 1 1/4", G5

BOLT - lock, 3/8 x 1-1/4" NC hex.

3шт.

3

195-524

WASHER,5/16"

- 3/8 x 1-1/8 x 1/16" (9.52 x 28.57 x 1.59 MM)

6шт.

4

A76068

PAD

- rubber

3шт.

5

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

7

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

8шт.

10

A149322

ARM

- lower hinge, RH

1шт.

10

A149321

ARM

- lower hinge, LH (RH shown)

1шт.

12

A151335

ARM

- upper hinge, RH

1шт.

13

A151334

ARM

- upper hinge, LH

1шт.

14

131-206

NUT,3/8"-16

NUT - lock, 3/8" NC hex.

8шт.

15

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

8шт.

16

A146451

PIVOT

- upper hinge, RH

1шт.

16

A146452

PIVOT

- upper hinge, LH (RH shown)

1шт.

18

113-2412

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5, Full Thd

- 1/2 x 1-1/8" NC hex. (Grade 5)

4шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

20

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/16 x 3/32" (13.49 x 26.99 x 2.38 mm)

8шт.

21

REF

INSTRUCTION

ANGLE - support (See Figure 8-290)

2шт.

25

A148841

PLATE

- lock, hinge arm

1шт.

26

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

27

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

28

A145518

BUSHING

SPACER - lower

1шт.

29

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

30

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/16 x 3/32" (13.49 x 26.99 x 2.38 mm)

3шт.

31

141-56

CLEVIS PIN,1/2" x 1.360"

PIN - upper

1шт.

32

T30946

BUSHING

SPACER - upper

1шт.

33

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

35

A163664

ARM

- RH, hood lift assist (Replaces A149713)

1шт.

35

A160164

ARM

- LH, hood lift assist (Replaces A149714) (Replaces A163665)

1шт.

37

A149819

BUSHING

SPACER - lower, arm to radiator support

2шт.

38

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

39

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

40

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

41

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

2шт.

42

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

43

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/16 x 3/32" (13.49 x 26.99 x 2.38 mm)

2шт.

45

A146118

BOLT

- stop, hinge arm

2шт.

46

9635082

NUT,5/16" - 18, Gr 5

2шт.

48

321-3985

DECAL

- lock plate

1шт.

Выбрано товаров: 40
