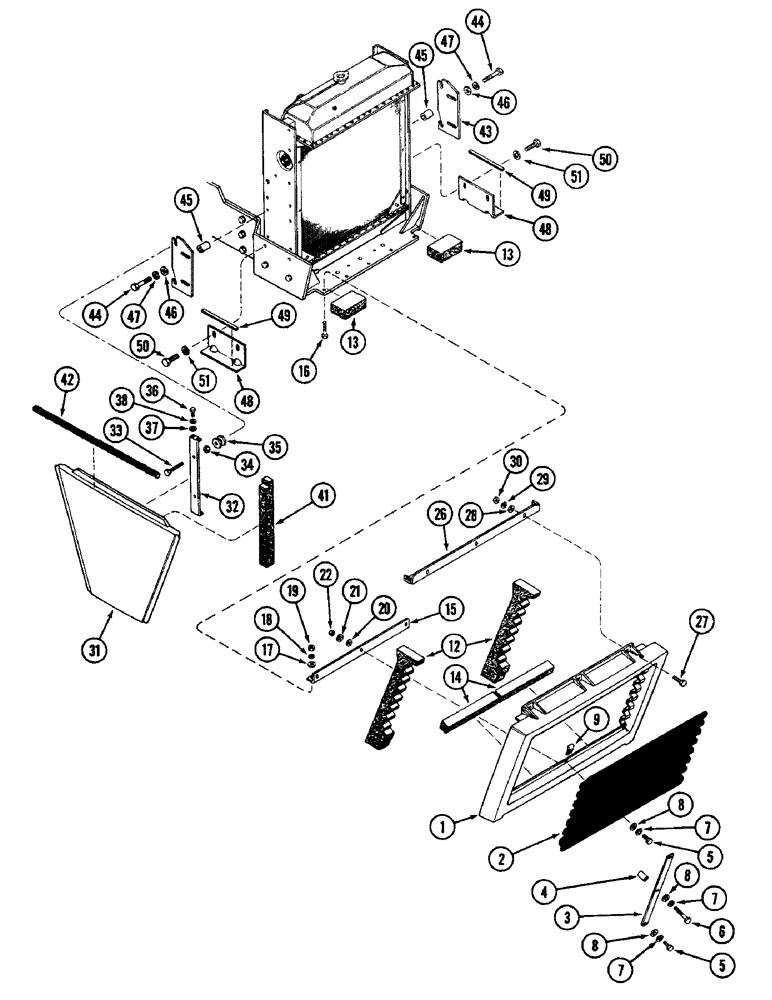

Запчасти Case IH 4890 (9-372) - FRONT GRILLE AND PANELS, P.I.N. 8857928 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

A161383

GUARD

GRILLE - lower

1шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

2

A162566

SCREEN

- lower grille

1шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

3

A161627

RETAINER

- lower grille screen

2шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

4

L10264

BUSHING

SPACER - screen retainer

2шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

5

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

6

113-70

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

7

192-83

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

8

195-133

WASHER,5/16" x 3/4" x .065"

- 1/4" flat

8шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

9

131-603

NUT,Tinn, U, 1/4"-20

- 1/4" NC Tinnerman U type

8шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

12

A161950

SEAL

FOAM - radiator sealing

2шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

13

A161951

SEAL

FOAM - radiator sealing

2шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

14

A149927

SEAL

FOAM - grille sealing

2шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

15

A152958

BRACKET

- grille support angle

1шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

16

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

17

195-104

WASHER,3/8"

- flat 3/8"

2шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

20

195-102

WASHER,1/4"

- flat 1/4"

3шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

21

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

22

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

26

A161955

BRACKET

- lower grille support

1шт.

27

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

7шт.

28

195-104

WASHER,3/8"

- flat 3/8"

10шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

7шт.

31

A152809

PANEL

- side wing

2шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

32

A151388

STRAP

- side panel

2шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

33

A160078

BOLT

- side panel adjusting

4шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

34

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Adjusting bolt 3/8"-16, G5

4шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

35

A147282

SPOOL

- wing panel lock

4шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

36

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

37

195-518

WASHER,1/4", SAE

- 1/4" flat

12шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

38

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

41

A149924

SEAL

FOAM - panel to radiator support

2шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

42

A160519

SEAL

FOAM - side wing panel, 35" long (889.0 MM)

2шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

43

A151447

BRACKET

- wing panel support

2шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

44

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

45

A161576

BUSHING

SPACER - support bracket

4шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

46

195-103

WASHER,5/16"

- 5/16 flat

4шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

47

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

48

A161584

SUPPORT

- wing panel

2шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

49

A161657

FOAM

- wing panel sealing

2шт.

Part of lower grille and side wing panel repair kit, P/N A162018

1шт.

50

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

51

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

A162018

GUARD

KIT - lower grille and side wing panel repair, Includes: Ref. 1 - 22, 31 - 49

1шт.
