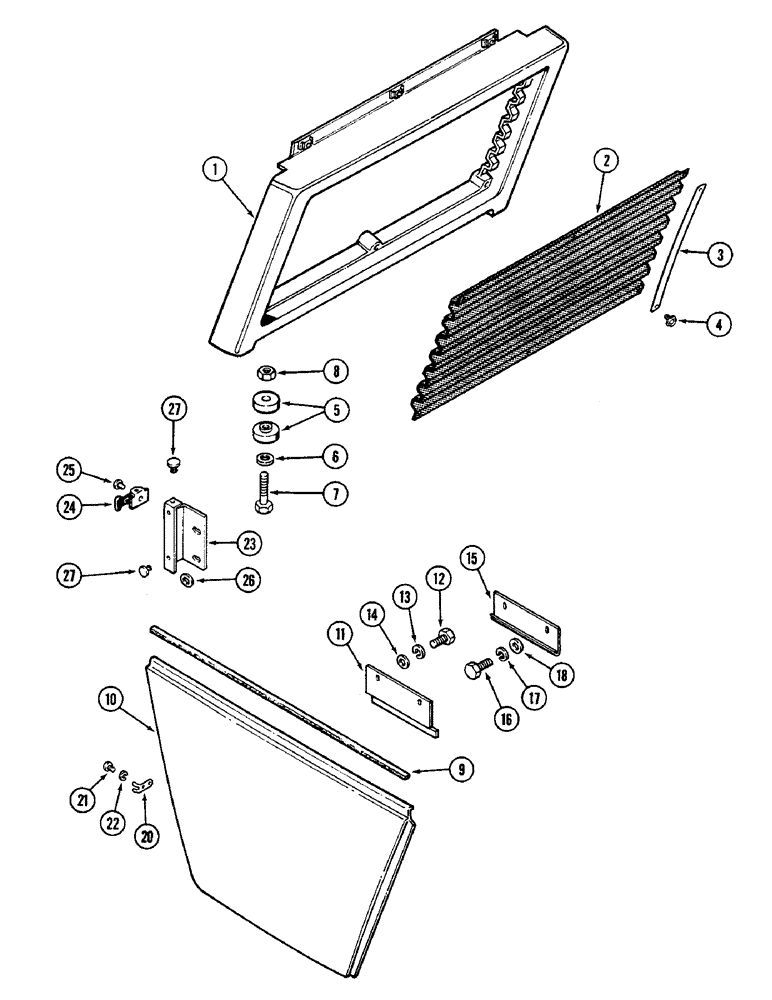

Запчасти Case IH 4890 (9-370) - FRONT GRILLE AND PANELS, PRIOR TO P.I.N. 8857928 (09) - CHASSIS/ATTACHMENTS

1

A161328

GUARD

GRILLE - lower (Replaces A160370)

1шт.

Part number shown for reference only. For repairs order A162018 kit, see Figure 9-372.

1шт.

2

NLS

NO LONGER SERVICED

SCREEN - grille (Replaces A148580 and A161591) (Replaces A162566)

1шт.

3

A150736

RETAINER

- LH, screen

1шт.

3

A150737

RETAINER

- RH, screen (LH shown)

1шт.

4

121-20

BOLT,Hex Flg, 1/4"-20 x 1/2", Serr

6шт.

5

A144232

BUSHING

-, Serial Range: grille-frame

6шт.

6

195-524

WASHER,5/16"

- 3/8 x 1-1/8 x 1/16" (9.52 x 28.57 x 1.59 MM)

3шт.

7

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Nylock (Replaces 113-2264) Hex, 3/8"-16 x 2 1/4", G5

3шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

9

A160202

SEAL

- hood to panel, 1/4 x 3/8 x 39" (6.35 x 9.52 x 990.6 MM)

2шт.

10

A151219

PANEL

- side, RH front

1шт.

Part number shown for reference only. For repairs order A162018 kit, see Figure 9-372.

1шт.

10

A151220

PANEL

- side, LH front (RH shown)

1шт.

Part number shown for reference only. For repairs order A162018 kit, see Figure 9-372.

1шт.

11

A148105

RETAINER

- front side panel

2шт.

12

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

14

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

1шт.

15

A148106

HOOK

- retainer seat

2шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

18

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

4шт.

20

A144244

LATCH

KEEPER - latch, side panel

2шт.

21

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

22

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

23

A146544

BRACKET

- latch, RH

1шт.

23

A146546

BRACKET

- latch, LH (RH shown)

1шт.

24

A144244

LATCH

- rubber

2шт.

25

151-553

RIVET,Pop, 1/8" x .337"

- 1/2 x 3/16" button

4шт.

26

195-108

WASHER,5/8"

- 11/16 x 1-3/4 x 9/64" (17.46 x 44.45 x 3.57 MM)

4шт.

27

A161780

BUMPER

- rubber

6шт.
