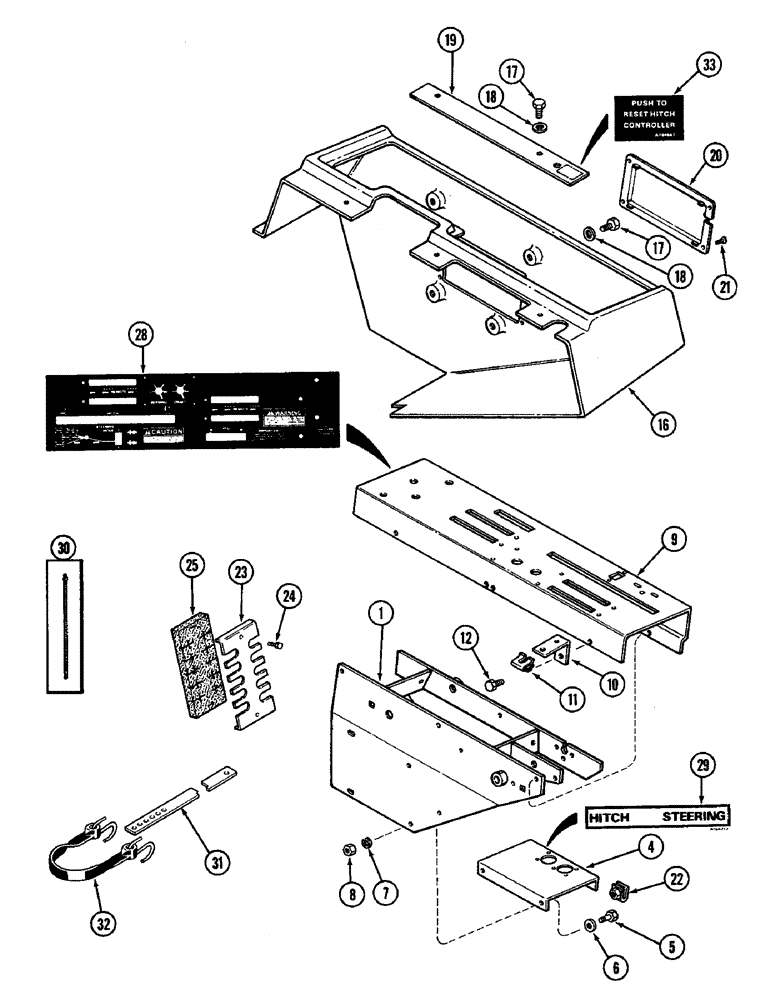

Запчасти Case IH 4890 (9-368) - OPERATORS CONSOLE, P.I.N. 8860450 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

A162342

CONSOLE - control

1шт.

4

A162360

BRACKET

- cowl mounting, lower

1шт.

5

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

6

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64" (9.52 x 22.22 x 1.98 MM)

4шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

9

A161938

COVER

- top console

1шт.

10

A162593

BRACKET

- cowl mounting, upper

3шт.

11

131-97

SPRING NUT,Tinn, U, 5/16"-18

- 5/16" NC Tinnerman U type

5шт.

12

187-1030

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW - 5/16 x 3/4" hex., self-tapping

6шт.

16

A161970

GUARD

COWL - console

1шт.

17

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

5шт.

18

195-2038

WASHER,13/32" x 7/8" x .035"

- 13/32 x 7/8 x 5/64" (10.32 x 22.22 x 1.98 MM)

8шт.

19

A162277

COVER

- hitch control access

1шт.

20

F64386

COVER

- steering control box access (Replaces A64386)

1шт.

21

B88595

SCREW

- #6 x 1/2" slotted pan

4шт.

Ref #21 - 131-618 Nut used on the B88595 Screw

1шт.

22

131-855

NUT,Tinn, #6

- Tinnerman J type speed

4шт.

23

A151092

PLATE

- cable guide, rear

1шт.

24

187-1059

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1 1/2"

SCREW - 1/4 x 1-1/2" hex., self-tapping

2шт.

25

A151093

FOAM

- cable sealing

1шт.

28

321-6264

DECAL

- console

1шт.

29

A164212

DECAL

- hitch and steering

1шт.

30

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - cable retaining

2шт.

31

A161222

STRAP

- cable retaining

1шт.

32

A147815

STRAP

ASSEMBLY - cable retaining

1шт.

33

A164557

DECAL

- hitch reset

1шт.
