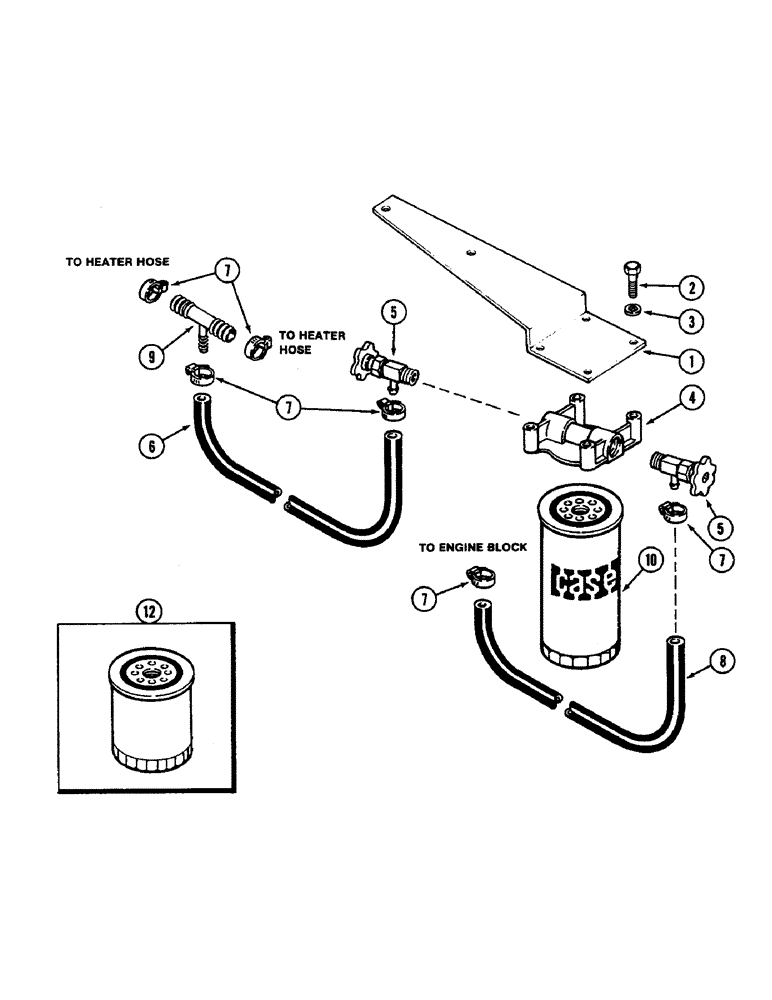

Запчасти Case IH 4890 (2-09A) - WATER FILTER, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

A67540

KIT

FILTER KIT - water, engine (Machinery item), Includes: Ref. 1 - 12

1шт.

1

A166435

KIT

BRACKET - mounting, filter

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

A152821

HEAD

- filter

1шт.

5

A154051

COCK, DRAIN

VALVE ASSEMBLY - water shut off

2шт.

6

A154770

HOSE,0.38" ID x 6.10", SAE 20R3 PER SAE J20

9.60 mm ID x 154.90 mm, SAE 20R3 - Heater to Valve

1шт.

7

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 x 1-1/16" (14.3 x 27 MM)

6шт.

8

A161557

HOSE,9.60 mm ID x 558.80 mm, SAE 20R3

- Valve to cylinder block 9.60 mm ID x 558.80 mm, SAE 20R3

1шт.

9

A154014

CONNECTOR, ELEC

TEE - branch, heater hose to filter hose

1шт.

10

A152819

FILTER

CARTRIDGE - water filter, charged, 7-1/2" (190.5 MM) Long

1шт.

Ref #10 - (Use first or when Putting new coolant in the system.)

1шт.

12

A151931

FILTER

CARTRIDGE - water filter, service, 4-13/64" (106.8 MM) Long

1шт.

Ref #12 - (Use after Ref #10 has been installed)

1шт.
