Запчасти Case IH 4890 (9-362) - WHEEL GUARDS, STEPS AND HAND RAILS (09) - CHASSIS/ATTACHMENTS

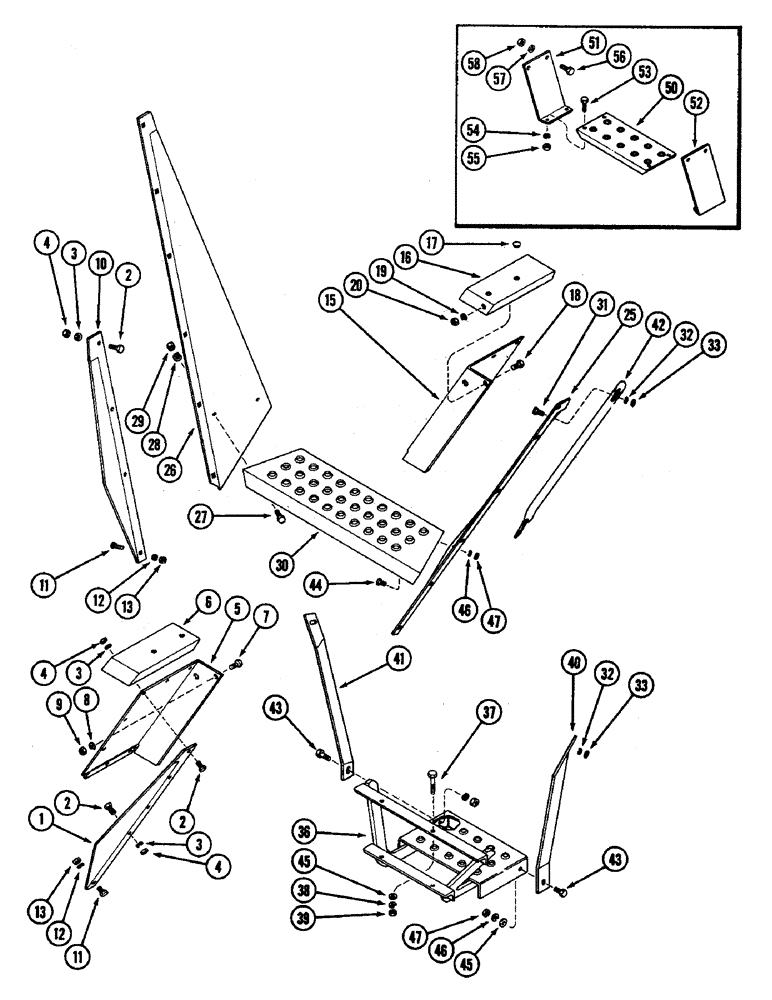

Схема запчастей Case IH 4890 - (9-362) - WHEEL GUARDS, STEPS AND HAND RAILS (09) - CHASSIS/ATTACHMENTS
13
3
42
26
1
39
56
55
10
27
47
20
43
33
43
45
37
17
44
8
25
11
38
4
31
11
2
40
45
32
46
51
7
33
28
36
16
30
15
3
53
12
6
12
3
4
58
57
5
4
2
29
50
18
54
9
52
2
41
19
47
13
32
46

№

Артикул

Название

Примечание

Количество

1

A140559

GUARD

- mud, right front

1шт.

2

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

7шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

7шт.

5

A144086

GUARD

- right front wheel

1шт.

6

A144087

CAP

- guard, right front

1шт.

7

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

5шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

10

A140560

GUARD

- mud, right rear

1шт.

11

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

4шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

15

A144091

GUARD

- wheel, left front

1шт.

16

A144092

CAP

- guard, left front

1шт.

17

205-23

PLUG,17/32"

- button, 21/32" diameter

4шт.

18

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

5шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

25

A148665

BRACKET

- step mounting, left front

1шт.

26

A148666

BRACKET

- step mounting, left rear

1шт.

27

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

11шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

11шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

11шт.

30

A144089

STEP

- upper

1шт.

31

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

32

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

33

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT - 3/4" NC hex.

3шт.

36

A150909

STEP

- lower

1шт.

37

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

38

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

39

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

40

A150008

GUIDE

- front, step safety

1шт.

41

A150804

GUIDE

- rear, step safety

1шт.

42

A139487

RAIL

- hand

1шт.

43

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

44

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

5шт.

45

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 MM)

7шт.

46

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

47

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

50

A162021

STEP

- auxiliary

1шт.

51

A162022

BRACKET

- side mounting step, right

1шт.

52

A162023

BRACKET

- side mounting step, left

1шт.

53

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Step to bracket Hex, 1/4"-20 x 5/8", G5, Full Thd

4шт.

54

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

55

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

56

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Bracket mounting Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

57

92-6

LOCK WASHER,3/8"

2шт.

58

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

Выбрано товаров: 49
