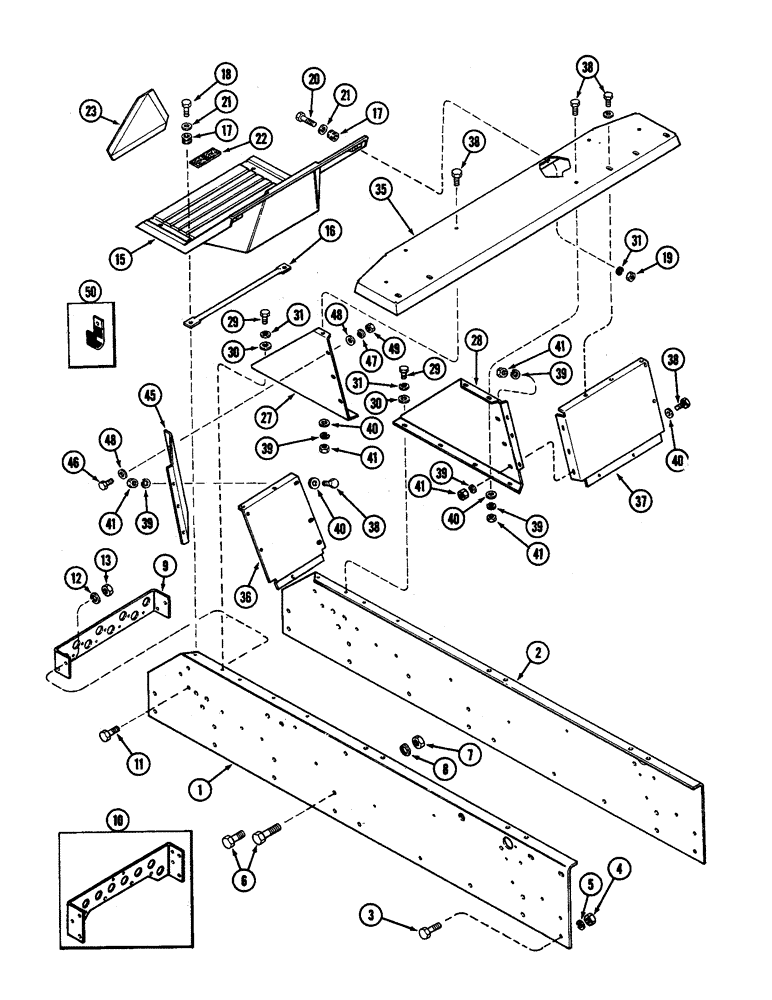

Запчасти Case IH 4890 (9-360) - PLATFORM AND SIDE PLATES (09) - CHASSIS/ATTACHMENTS

1

A161943

PLATE

- side right (Replaces A144839)

1шт.

2

A161944

PLATE

- side, left (Replaces A144840)

1шт.

3

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" NC hex. (Grade 5)

4шт.

3

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2шт.

4

25-108

NUT,1/2"-13, G5

- 1/2" NC hex.

6шт.

5

92-8

LOCK WASHER,1/2"

6шт.

6

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

6

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8 x 2-3/4" NC hex. (Grade 5)

8шт.

7

25-1010

NUT,5/8"-11, G5

16шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

9

A165362

PLATE

- rear, hydraulic coupling mounting (Replaces A64800), Start Serial: 8860450

1шт.

10

A149229

PLATE

- rear, hydraulic coupling mounting, Serial Range: -8860450

1шт.

11

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

12

92-8

LOCK WASHER,1/2"

1шт.

13

25-108

NUT,1/2"-13, G5

- 1/2" NC hex.

1шт.

15

A160031

PLATFORM

- rear

1шт.

16

A160390

SUPPORT

- cross, rear cover

2шт.

17

A162019

GROMMET

- rear cover mounting

6шт.

18

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

20

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

21

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

6шт.

22

A143553

TREAD

- non slip, rear platform

6шт.

23

321-4311

DECAL

- SMV emblem

1шт.

27

A149450

SHEET

- RH side, rear platform

1шт.

28

A149449

SHEET

- LH side, rear platform

1шт.

29

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

7шт.

30

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

7шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

35

NLS

NO LONGER SERVICED

- rear

1шт.

36

A160064

GUARD

- right rear

1шт.

37

A160063

GUARD

- left rear

1шт.

38

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

9шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

40

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

6шт.

41

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

9шт.

45

A160062

GUARD

- console cables (RH rear corner)

1шт.

46

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3шт.

47

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

48

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

6шт.

49

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

50

A149624

CLIP

- wire retaining

3шт.
