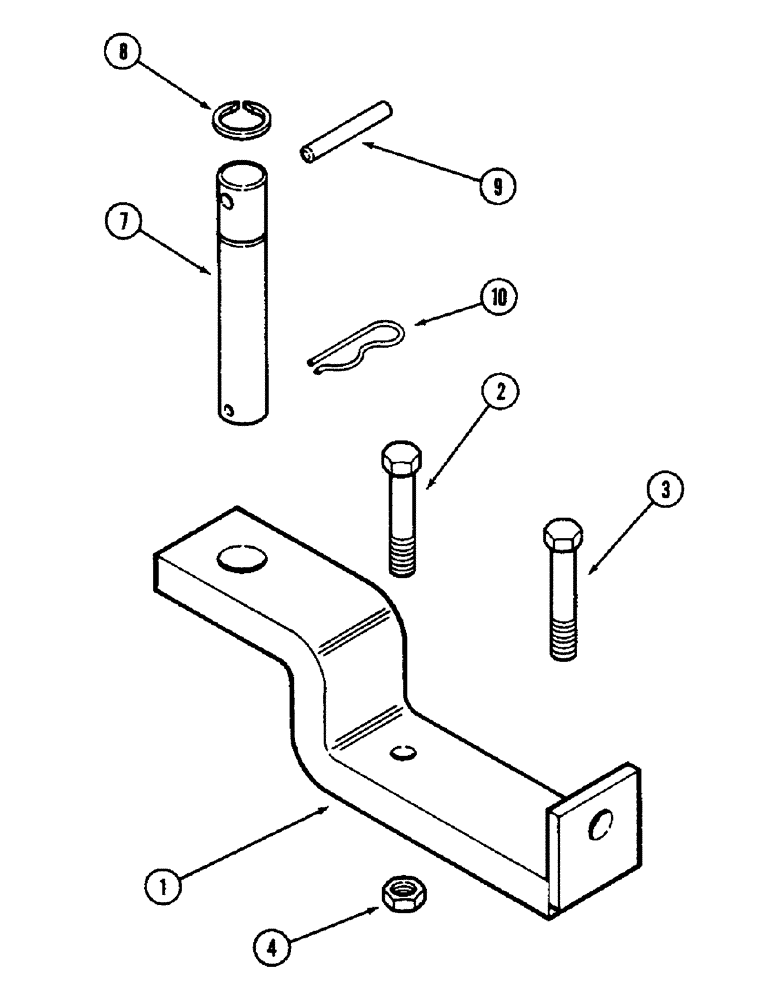

Запчасти Case IH 4890 (9-354) - DRAWBAR YOKE (09) - CHASSIS/ATTACHMENTS

1

A144420

DRAWBAR

YOKE - drawbar

1шт.

2

13-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- 3/4 x 4-1/4" NC hex.

1шт.

3

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

1шт.

4

131-197

LOCK NUT,3/4"-10, GC

NUT - lock, 3/4" NC hex. lock

2шт.

7

A144422

PIN

ASSEMBLY - hitch, Includes: Ref. 8 and 9

1шт.

8

A27568

RING

- retaining snap

1шт.

9

138-326

LOCK PIN,3/8" x 3 1/4", Slotted

Pin, (9.52 x 82.55 mm) 3/8" x 3 1/4", Slotted

1шт.

10

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

Hitch pin lock

1шт.
