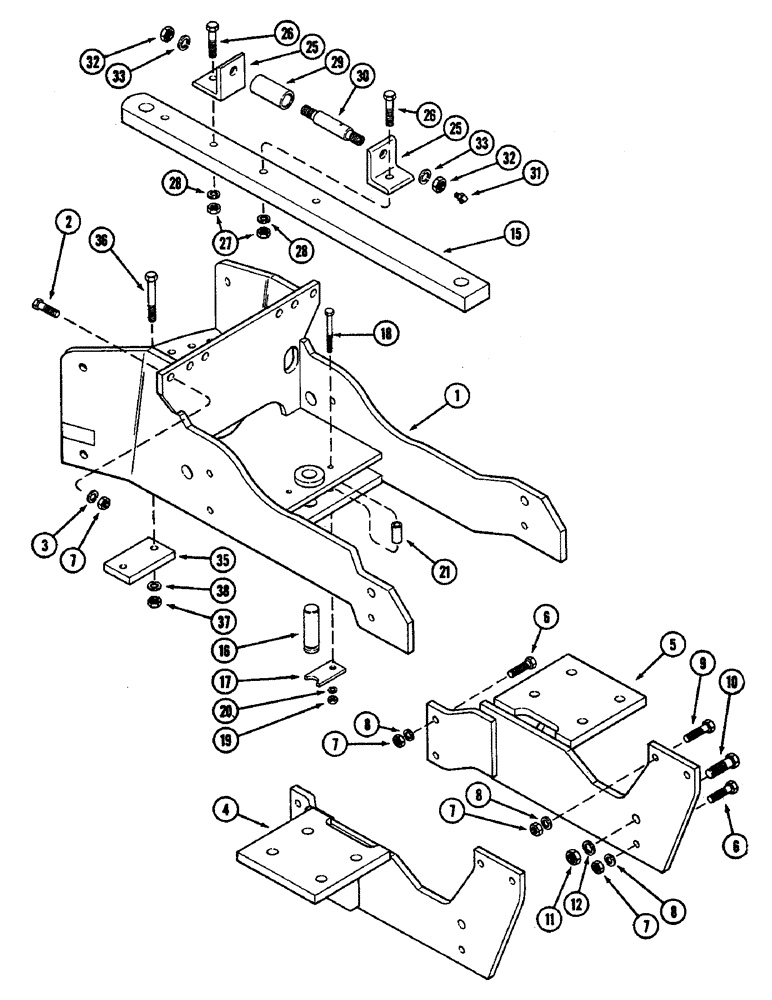

Запчасти Case IH 4890 (9-352) - DRAWBAR AND SUPPORTS, WITHOUT HITCH (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A142844
SUPPORT
- drawbar
1шт.
2
113-708
BOLT,Hex, 3/4" - 10 x 2", Gr 5
(Support to trunnion) Hex, 3/4"-10 x 2", G5
6шт.
3
192-27
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
6шт.
4
A138537
BRACE
- drawbar support, RH
1шт.
5
A138542
BRACE
- drawbar support, LH
1шт.
6
113-705
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5
- 3/4 x 2-1/2" NC hex. (Grade 5) (Support to brace)
6шт.
7
129-108
NUT,3/4"-10, G5
(Grade 8) 3/4"-10, G5
10шт.
8
192-27
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
10шт.
9
113-730
BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5
- 3/4 x 2-3/4" NC hex. (Brace to trunnion) (Grade 5)
3шт.
10
113-917
BOLT,Hex, 1" - 8 x 2-3/4", Gr 5, Full Thd
- 2 x 2-3/4" NC hex. (Support to brace) (Grade 5)
2шт.
11
129-110
NUT,1"-8, G5
2шт.
12
192-31
LOCK WASHER,1"
WASHER, LOCK, 1"
2шт.
15
A160848
DRAWBAR, SWINGING
DRAWBAR - 1-3/4" thick x 47" long (44.5 x 1 193.8 MM)
1шт.
16
T38569
PIN,38.1mm OD x 127mm L
- pivot, drawbar rear
1шт.
17
T38570
LOCK
- pivot pin
1шт.
18
113-411
BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5
2шт.
19
129-105
NUT,Hex, 1/2" - 13, Gr 5
2шт.
20
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
21
A75459
BUSHING
SPACER - drawbar lock
2шт.
25
T38568
BRACKET
ANGLE - roller mounting, drawbar
2шт.
26
13-1256
BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5
2шт.
27
25-1012
NUT,3/4"-10, G5
2шт.
28
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
29
A145831
BUSHING
- roller, drawbar
1шт.
30
T38572
PIN
ROLLER - drawbar
1шт.
31
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg
1шт.
32
129-110
NUT,1"-8, G5
2шт.
33
192-31
LOCK WASHER,1"
WASHER, LOCK, 1"
2шт.
35
T38563
PLATE
- fixed drawbar
1шт.
36
113-725
BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5
- 3/4 x 5-1/2" NC hex. (Grade 5)
2шт.
37
129-108
NUT,3/4"-10, G5
2шт.
38
192-27
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
Выбрано товаров: 33
