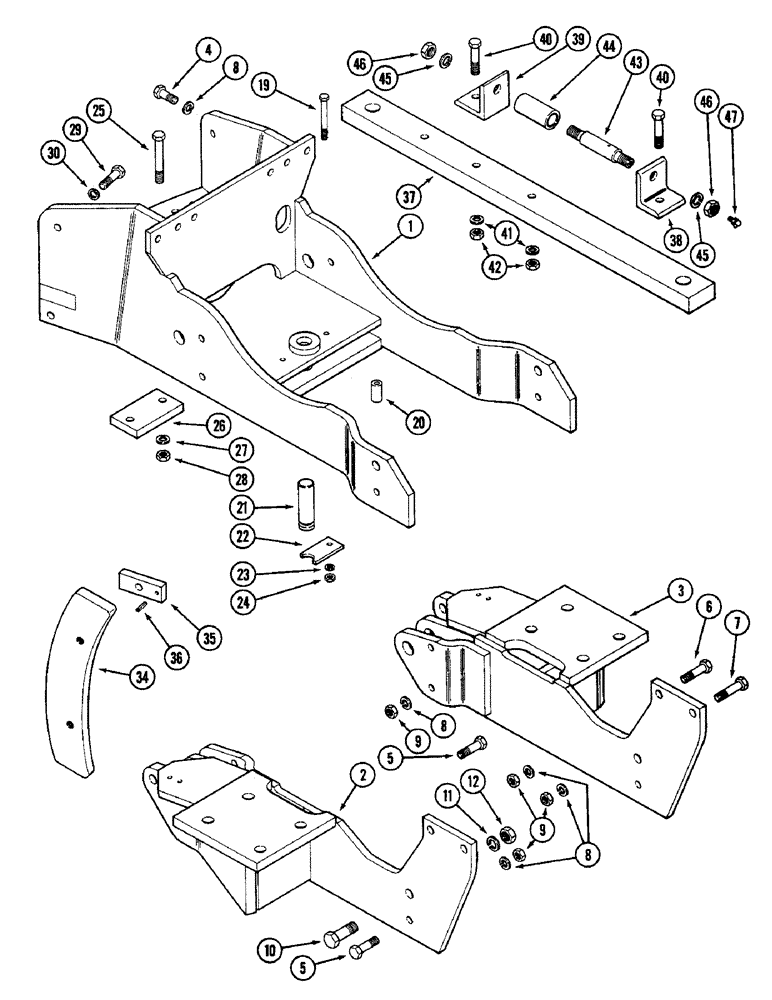

Запчасти Case IH 4890 (9-350) - DRAWBAR AND SUPPORTS, WITH HITCH, P.I.N. 8860450 AND AFTER (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A162541
SUPPORT
- drawbar
1шт.
2
A161987
BRACE
- drawbar, right
1шт.
3
A161986
BRACKET
BRACE - drawbar, left
1шт.
4
113-708
BOLT,Hex, 3/4" - 10 x 2", Gr 5
6шт.
5
113-705
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5
- 3/4 x 2-1/2" NC hex.
6шт.
6
113-730
BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5
- 3/4 x 2-3/4" NC hex.
3шт.
8
192-27
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
16шт.
9
129-108
NUT,3/4"-10, G5
10шт.
10
113-917
BOLT,Hex, 1" - 8 x 2-3/4", Gr 5, Full Thd
2шт.
11
192-31
LOCK WASHER,1"
WASHER, LOCK, 1"
2шт.
12
129-110
NUT,1"-8, G5
2шт.
19
113-411
BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5
2шт.
20
A75459
BUSHING
SPACER - drawbar bolt
2шт.
21
T38569
PIN,38.1mm OD x 127mm L
- drawbar pivot
1шт.
22
T38570
LOCK
- drawbar pin
1шт.
23
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
24
129-105
NUT,Hex, 1/2" - 13, Gr 5
2шт.
25
113-725
BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5
- 3/4 x 5-1/2" NC hex.
2шт.
26
T38563
PLATE
- drawbar
1шт.
27
192-27
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
28
129-108
NUT,3/4"-10, G5
2шт.
29
113-705
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5
- 3/4 x 2-1/2" NC hex.
4шт.
30
192-27
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
4шт.
34
A165275
BLOCK
- sway
2шт.
35
A162548
BUSHING
SPACER ASSEMBLY - sway block, Includes: Ref. 36
4шт.
36
138-136
LOCK PIN,1/4" x 1 1/4", Slotted
PIN, (6.35 x 31.75 mm) 1/4" x 1 1/4", Slotted
1шт.
37
A160848
DRAWBAR, SWINGING
DRAWBAR- tractor
1шт.
38
T38568
BRACKET
- roller pin retaining, front
1шт.
39
A75458
BRACKET
- roller pin retaining, rear
1шт.
40
13-1256
BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5
2шт.
41
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
42
25-1012
NUT,3/4"-10, G5
2шт.
43
T38572
PIN
- drawbar roller
1шт.
44
A145831
BUSHING
- drawbar roller
1шт.
45
192-31
LOCK WASHER,1"
WASHER, LOCK, 1"
2шт.
46
129-110
NUT,1"-8, G5
2шт.
47
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg
1шт.
Выбрано товаров: 38
