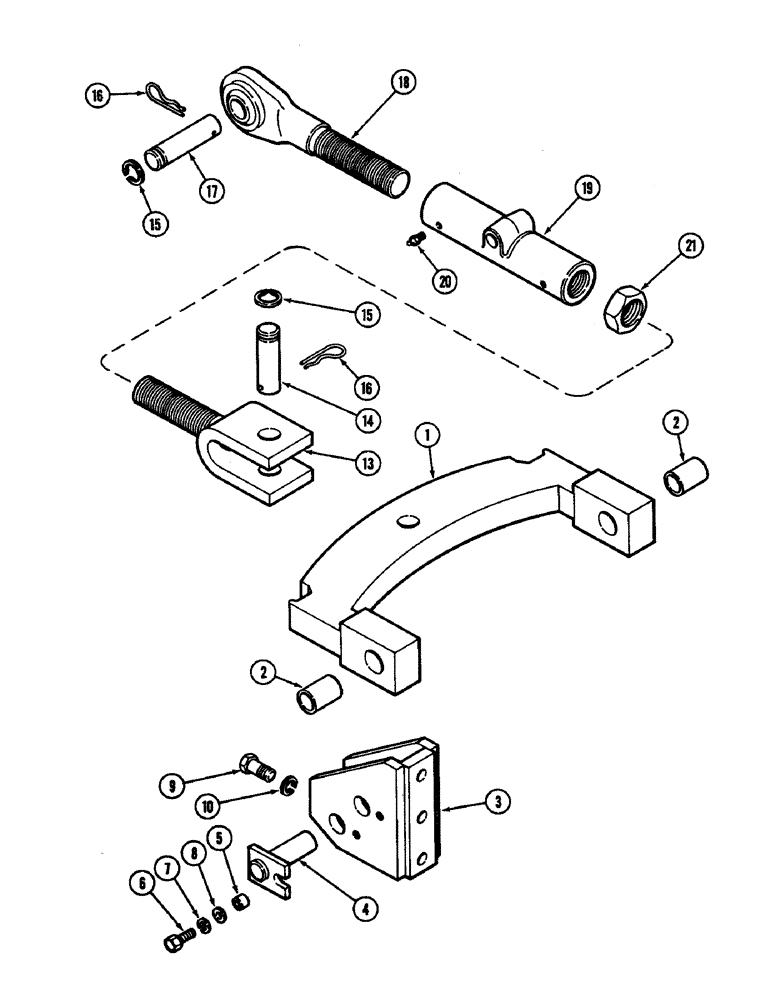

Запчасти Case IH 4890 (9-346) - THREE POINT HITCH, ADJUSTING TURNBUCKLE, P.I.N. 8860450 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

A162318

PLATE

ASSEMBLY - third link pivot, Includes: Ref. 2

1шт.

2

A24633

BUSHING,31.7mm ID x 38.18mm OD x 51.16mm L

- plate pivot

2шт.

3

A146714

BRACKET

- pivot

2шт.

4

A138905

PIN

- third link pivot

2шт.

5

A148908

SPACER

- pivot

2шт.

6

113-481

BOLT,Locking, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- 1/2 x 1-1/4" NC hex. lock

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

L30674

WASHER

- pivot bolt

2шт.

9

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

6шт.

10

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

13

A161040

CLEVIS

- third link

1шт.

14

A76283

PIN

- link clevis

1шт.

15

17406

RING

- retaining snap

2шт.

16

A56393

PIN

- retaining

2шт.

17

A76285

PIN

- third point coupler

1шт.

18

A161059

ROD

ASSEMBLY - third link

1шт.

19

A161049

TURNBUCKLE

- third link

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" PT straight

2шт.

21

129-160

NUT,Jam, 1 1/2"-12, G5, Hvy

- 1-3/4" NF hex.

1шт.
