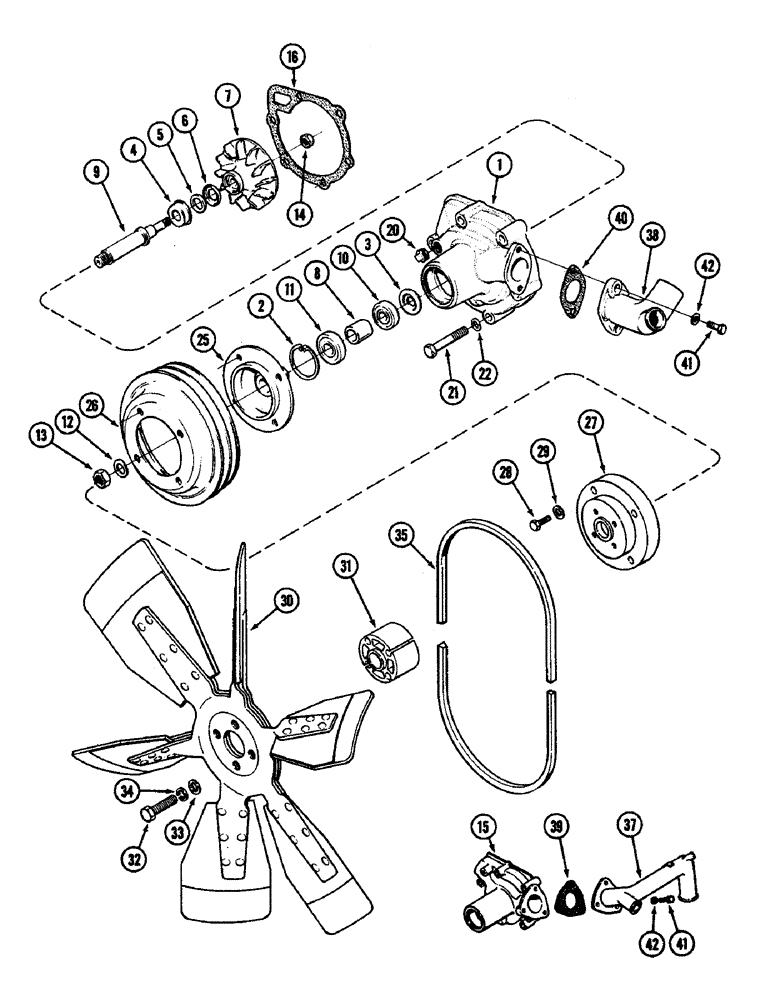

Запчасти Case IH 4890 (2-08) - WATER PUMP AND FAN, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

A46536

PUMP

WATER PUMP ASSEMBLY - engine (Includes items 1 through 14)

1шт.

Engine serial no. 5243345 and after. Engine serial no. 3027228 and after.

1шт.

A46263

PUMP

WATER PUMP ASSEMBLY - engine, Includes: Ref. 1 - 15

1шт.

A46263 (2 HOLE) a46536 (3 HOLE)

1шт.

Prior to engine serial no. 5243345. Prior to engine serial no. 3027228.

1шт.

1

A46264

HOUSING

BODY - pump

1шт.

Prior to engine serial no. 5243345. Prior to engine serial no. 3027228.

1шт.

2

A46042

RING

- snap, bearing

1шт.

3

A46271

GUARD

SHIELD - bearing

1шт.

4

A46267

SEALING RING

- carbon

1шт.

5

A46565

RING

- wear (Replaces A46268)

1шт.

6

A46565

RING

- connecting, wear ring (Replaces A46269)

1шт.

7

A46266

IMPELLER

- coolant

1шт.

8

A46539

BUSHING

SPACER - shaft bearing

1шт.

Engine serial no. 5243345 and after. Engine serial no. 3027228 and after.

1шт.

8

A46272

BUSHING

SPACER - shaft bearing

1шт.

Prior to engine serial no. 5243345. Prior to engine serial no. 3027228.

1шт.

A46148

KIT

- repair, water pump shaft, Includes: Ref. 9, 10 and 11

1шт.

9

A46538

SHAFT

- impeller

1шт.

Engine serial no. 5243345 and after. Engine serial no. 3027228 and after.

1шт.

9

A46265

SHAFT

- impeller

1шт.

Prior to engine serial no. 5243345. Prior to engine serial no. 3027228.

1шт.

10

A46270

BALL BEARING

BEARING - inner

1шт.

11

A46273

BALL BEARING

BEARING - outer

1шт.

12

A46041

WASHER

- lock

1шт.

13

A46040

NUT

- front, impeller shaft

1шт.

14

A46274

NUT

- rear, Serial Range: impeller-shaft

1шт.

15

A46537

HOUSING

BODY - pump

1шт.

Engine serial no. 5243345 and after. Engine serial no. 3027228 and after.

1шт.

16

A46258

GASKET

- pump, Serial Range: body-head

1шт.

20

A46259

PLUG

- water pump body

1шт.

21

813-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 8.8

- 12 x 1.75 x 65 MM hex.

6шт.

22

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/16 x 3/32" (13.49 x 26.99 x 2.38 mm)

6шт.

25

A46543

HUB

- pump drive

1шт.

Engine serial no. 5243345 and after. Engine serial no. 3027228 and after.

1шт.

25

A46260

HUB

- pump drive

1шт.

Prior to engine serial no. 5243345. Prior to engine serial no. 3027228.

1шт.

26

A46261

PULLEY

- pump drive (2 grooves)

1шт.

27

A165465

BUSHING

SPACER - fan (Replaces A144184)

1шт.

28

814-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- 12 x 1.75 x 40 MM hex. (Spacer to hub)

4шт.

29

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

30

A149829

FAN

- suction

1шт.

31

A165397

FAN

SPACER - fan, 2" (50.8 MM) Wide (Replaces A161680)

1шт.

32

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

4шт.

33

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 MM)

4шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

35

A138001

SET OF BELTS,0.50" W x 62.00" L

BELT , Fan (Set of 2) 0.50" W x 62.00" L

1шт.

37

A46540

TUBE

- water, Serial Range: pump-cooler

1шт.

Ref #37 - (3 Hole)

1шт.

Engine serial no. 5243345 and after. Engine serial no. 3027228 and after.

1шт.

38

A46262

TUBE

- elbow, oil cooler

1шт.

Ref #38 - (2 Hole)

1шт.

Prior to engine serial no. 5243345. Prior to engine serial no. 3027228.

1шт.

39

A46542

GASKET

- tube to water pump

1шт.

Ref #39 - (3 Hole)

1шт.

Engine serial no. 5243345 and after. Engine serial no. 3027228 and after.

1шт.

40

A46359

GASKET

- tube to water pump

1шт.

Ref #40 - (2 Hole)

1шт.

Prior to engine serial no. 5243345. Prior to engine serial no. 3027228.

1шт.

41

813-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- 8 x 1.25 x 25 MM hex

1шт.

42

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64" (9.52 x 22.22 x 1.98 MM)

1шт.
