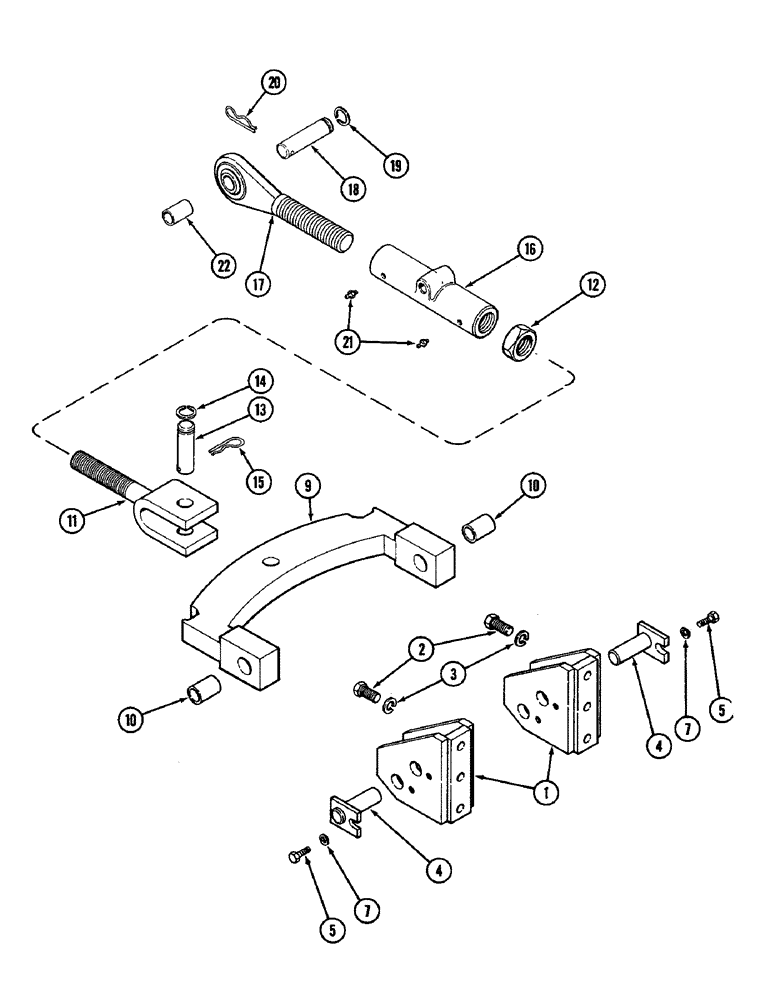

Запчасти Case IH 4890 (9-344) - THREE POINT HITCH, ADJUSTABLE TURNBUCKLE, PRIOR TO P.I.N. 8860450 (09) - CHASSIS/ATTACHMENTS

1

A146714

BRACKET

- pivot, turnbuckle mounting

2шт.

2

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

6шт.

3

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

4

A138905

PIN

- pivot, mounting plate

2шт.

5

113-481

BOLT,Locking, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- 1/2 x 1-1/4" NC hex. (Nylock)

2шт.

7

L30674

WASHER

- spacer, 1/2 x 7/8 x 1/8" (12.7 x 22.2 x 3.2 MM)

2шт.

9

A162318

PLATE

- turnbuckle mounting (Replaces A148269), Includes: Ref. 10

1шт.

10

A24633

BUSHING,31.7mm ID x 38.18mm OD x 51.16mm L

- pin pivot

2шт.

11

A138907

CLEVIS

- turnbuckle (1-1/2" NF RH thread) (See ref 22)

1шт.

11

A161040

CLEVIS

- turnbuckle (1-3/4" NF RH thread)

1шт.

12

129-174

JAM NUT,Hex, 1 1/2" - 12, Gr 5

NUT - jam, 1-1/2" NF hex.

1шт.

12

129-160

NUT,Jam, 1 1/2"-12, G5, Hvy

- jam, 1-3/4" NF hex.

1шт.

13

A76283

PIN

- clevis to plate, 1-1/4" OD x 4-1/4" (31.8 x 108 MM)

1шт.

14

17406

RING

- snap

1шт.

15

A56393

PIN

- lock

1шт.

16

A160905

TURNBUCKLE

- adjustable (1-1/2" thread) (Replaces A75964)

1шт.

16

A161049

TURNBUCKLE

- adjustable (1-3/4" thread)

1шт.

17

A141051

ROD

- third point (1-1/2" NF LH thread)

1шт.

17

A161059

ROD

- third point (1-3/4" NF LH thread)

1шт.

18

A76285

PIN

- third point, 1-1/4" OD x 4-7/8" (31.8 x 123.8 MM)

1шт.

19

17406

RING

- snap

1шт.

20

A56393

PIN

- lock

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" PT straight

2шт.

22

L10462

BUSHING

- hitch pin (Category II)

1шт.
