Запчасти Case IH 4890 (9-342) - THREE POINT HITCH, DRAFT ARMS AND SENSOR, P.I.N. 8860450 AND AFTER (09) - CHASSIS/ATTACHMENTS

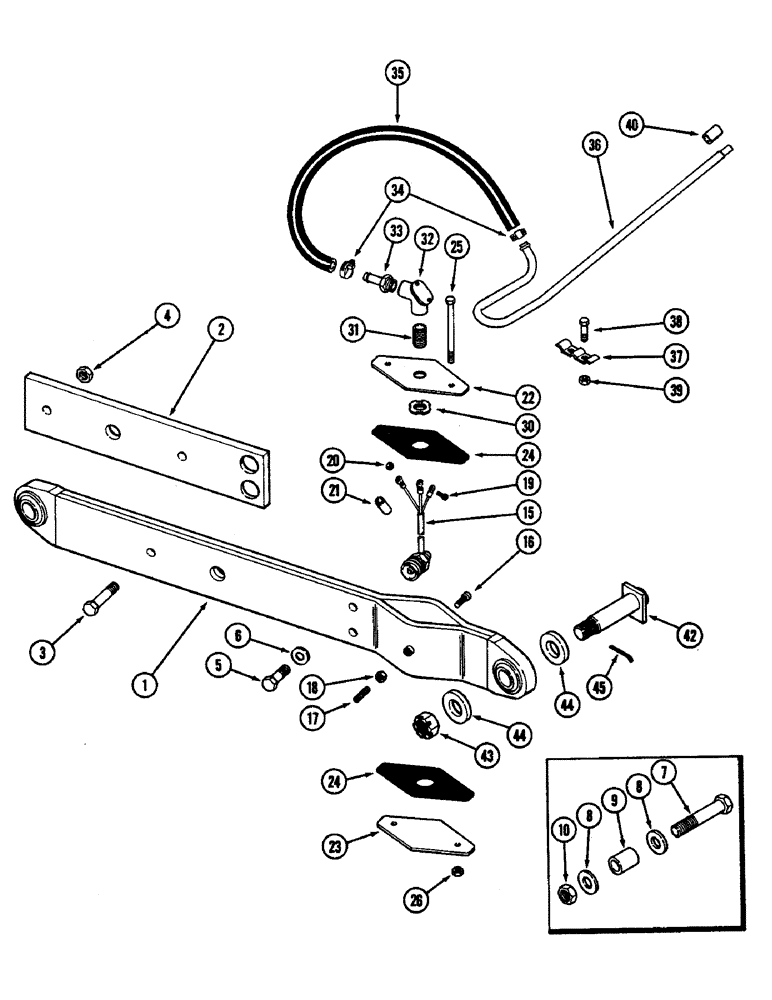

Схема запчастей Case IH 4890 - (9-342) - THREE POINT HITCH, DRAFT ARMS AND SENSOR, P.I.N. 8860450 AND AFTER (09) - CHASSIS/ATTACHMENTS
42
6
23
35
8
32
5
30
8
43
9
24
40
25
44
18
31
16
34
21
45
3
39
10
17
26
1
36
20
4
2
22
37
15
38
33
44
7
19
24

Артикул

Название

Примечание

Количество

1

A164412

ARM

ASSEMBLY - hitch draft

2шт.

2

A165274

PLATE ASSY.

PLATE - draft arm (Replaces A164403)

2шт.

3

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- 3/4 x 2-3/4" NC hex.

4шт.

4

131-197

LOCK NUT,3/4"-10, GC

NUT - lock, 3/4" NC hex.

2шт.

5

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- 3/4 x 2-1/2" NC hex.

4шт.

6

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- draft arm bolt

4шт.

7

114-904

BOLT,Hex, 1" - 14 x 5", Gr 8

- arm pivot, 1 x 5" NF hex., Serial Range: -8861680

2шт.

8

A139817

WASHER

- pivot bolt

4шт.

9

T38561

BUSHING

- draft arm pivot

2шт.

10

138-188

LOCK PIN,7/16" x 1 1/2", Slotted

NUT - 1" NF hex. lock

2шт.

15

A165422

TRANSMITTER

SENSOR ASSEMBLY - draft arm (Replaces A161960)

2шт.

16

165-183

SCREW,5/16" - 18 x 1 1/4"

- 5/16 x 1-1/4" NC hex. socket

2шт.

17

A164769

SET SCREW,Hex, 3/8" - 24 x 1 1/2"

- 3/8 x 1-1/2" NF hex. headless flat point set

2шт.

18

86585245

SPECIAL NUT,JAM, 5/8" - 18

- 3/8" NC hex. jam

2шт.

19

182-533

SCREW,Sl Pan Hd, #6 - 32 x 1/4"

- #6-32 x 1/4" pan head, brass

6шт.

20

129-15

NUT,#6-32

6шт.

21

A163365

SLEEVE

- wire connector shrink (Order A161254)

6шт.

22

A162509

COVER

- sensor, top

2шт.

23

A162561

COVER

- sensor, bottom

2шт.

24

A164618

GASKET

- sensor cover (Replaces A162562)

4шт.

25

113-258

BOLT,Hex, 3/8" - 16 x 6", Gr 5

4шт.

26

230-4216

LOCK NUT,3/8"-16, GA

NUT - 3/8" NC hex. lock

4шт.

30

223-202

NUT

- 3/4" conduit lock

4шт.

31

221-1211

FITTING

NIPPLE - 3/4 PT x 1-3/8"

2шт.

32

A149530

FITTING

ELBOW ASSEMBLY - conduit

2шт.

33

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

CONNECTOR - straight

2шт.

34

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4" (30.16 to 44.45 MM)

4шт.

35

L78623

HOSE

- sensor harness, 29" long (736.6 MM)

2шт.

36

A162627

CONDUIT

- sensor harness, right

1шт.

36

A162626

CONDUIT

- sensor harness, left

1шт.

37

A60862

CLAMP

- conduit

2шт.

38

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- 5/16 x 1-3/4" NC hex.

4шт.

39

131-173

NUT,5/16"-18, GA

- 5/16" NC hex. lock

4шт.

40

A161375

SLEEVE

- conduit shrink (Set of 2)

1шт.

42

A163274

PIN

- pivot, draft arm, Start Serial: 8861680

2шт.

43

25-1320

SLOTTED NUT,1 1/4"-12, G5

2шт.

44

A163292

WASHER

- pivot pin

4шт.

45

132-185

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

2шт.

Выбрано товаров: 38
