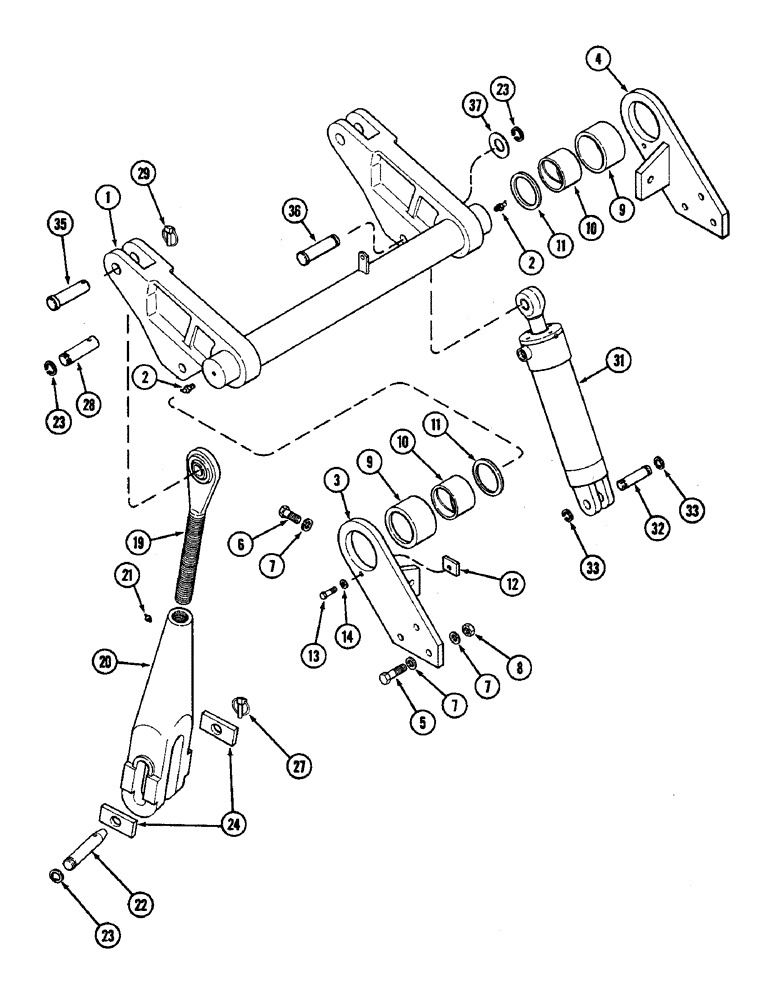

Запчасти Case IH 4890 (9-340) - THREE POINT HITCH, LIFT LINKS AND ROCKSHAFT, P.I.N. 8860450 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

A164276

ROCKSHAFT

- hitch (Replaces A161794)

1шт.

Order (1) A164413, (2) A163277, (2) A165314, (2) 17406, and (2) 195-559.

1шт.

1

A164413

ROCKSHAFT

- hitch

1шт.

2

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree

2шт.

3

A146765

SUPPORT

- rockshaft bearing, right

1шт.

4

A146766

SUPPORT

- rockshaft bearing, left

1шт.

5

28-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 8

- 3/4 x 3" NF hex.

6шт.

6

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

2шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- support bolt

14шт.

8

131-186

LOCK NUT,3/4"-16, GB

NUT - 3/4" NF hex. lock

6шт.

9

A161892

BEARING ASSY

HOUSING ASSEMBLY - rockshaft bearing, Includes: Ref. 10

2шт.

10

A162505

BUSHING

- rockshaft

1шт.

11

A32804

WASHER

- rockshaft thrust

2шт.

12

A146768

KEY

- housing retaining

2шт.

13

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

19

A141049

ROD

ASSEMBLY - lift link

2шт.

20

A75969

LINK

- lift

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" PT straight

2шт.

22

A76286

PIN,31.6mm OD x 193.04mm L

- lift link, lower

2шт.

23

17406

RING

- link pin retaining snap

1шт.

24

A63515

PLATE

- lift link stop

4шт.

27

A64204

PIN

ASSEMBLY - locking

2шт.

28

A76284

PIN

- lift link, upper (Order A163277)

2шт.

29

A30338

PIN

ASSEMBLY - locking

4шт.

31

REF

INSTRUCTION

CYLINDER ASSEMBLY - hitch (See Figure 8-336)

2шт.

32

A76281

PIN

- hitch cylinder pivot, lower

2шт.

33

A12667

RING

- lower pin retaining snap

4шт.

REF

INSTRUCTION

ARM ASSEMBLY - draft (See Figure 9-342)

2шт.

35

A163277

PIN

- lift link, upper

2шт.

36

A165314

PIN

- hitch cylinder pivot, upper

2шт.

37

195-2125

WASHER,1 5/16" x 2" x .109"

- flat, 1-5/16 x 2 x 7/64" (27.3 x 50.8 x 2.8 MM)

2шт.
