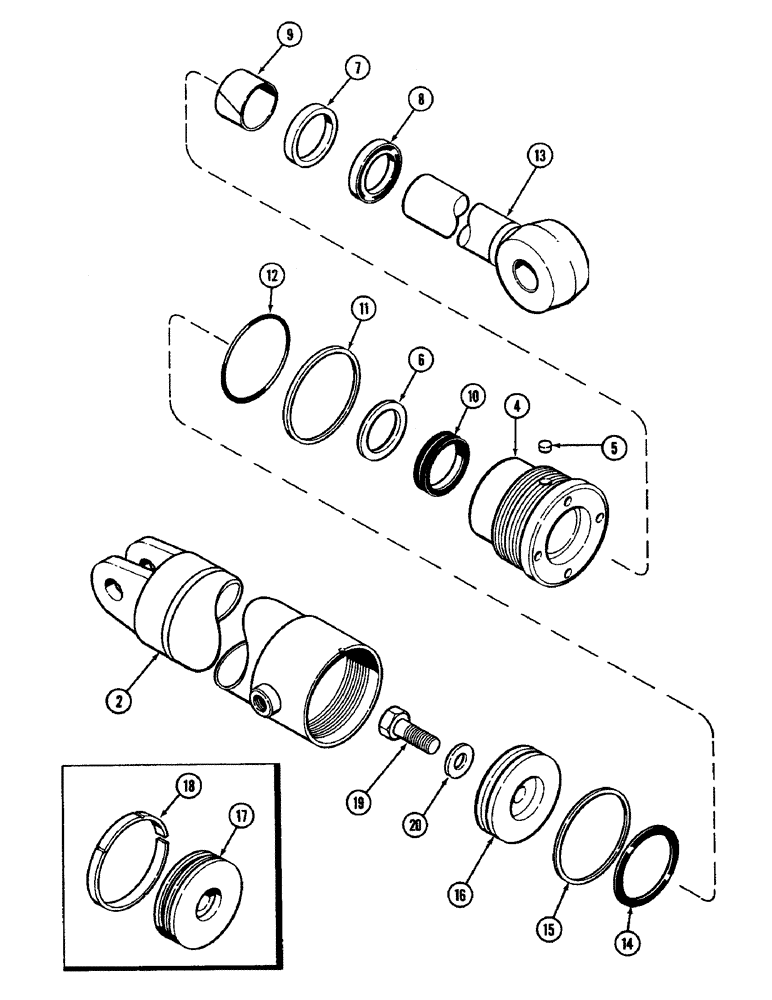

Запчасти Case IH 4890 (8-334) - HITCH LIFT CYLINDER ASSEMBLY, 4" (101.6 MM) BORE X 9-27/32" (250.8 MM) STROKE, PRIOR TO PIN 8860450 (08) - HYDRAULICS

G33943

CYLINDER

ASSEMBLY - lift, Includes: Ref. 2 - 20

2шт.

2

G33957

TUBE,18.11" L

ASSEMBLY - cylinder

1шт.

G104933

CYLINDER

GLAND ASSEMBLY - tube end (Replaces G34773), Includes: Ref. 4 - 12

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

G102569

PLUG

- gland self locking

1шт.

6

G104224

SEAL

- gland

1шт.

Part of repair kit, P/N G33968

1шт.

7

G34299

RING

- center bearing

1шт.

8

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - outer, 1-1/2 x 2 x 5/16" (38.1 x 50.8 x 7.9 MM)

1шт.

Part of repair kit, P/N G33968

1шт.

9

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

BEARING - Center

1шт.

Part of repair kit, P/N G33968

1шт.

10

D36969

CUP

SEAL - rod, 1-1/2 x 2 x 7/16" (38.1 x 50.8 x 11.1 MM)

1шт.

Part of repair kit, P/N G33968

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of repair kit, P/N G33968

1шт.

12

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- 4 x 4-1/4 x 1/8" (101.6 x 108 x 3.2 MM)

1шт.

Part of repair kit, P/N G33968

1шт.

13

G33961

ROD

- piston, 1-1/2" (38.1 MM) Diameter

1шт.

14

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- 3-1/2 x 3-3/4 x 1/8" (88.9 x 95.3 x 3.2 MM)

1шт.

Part of repair kit, P/N G33968

1шт.

15

G31928

RING

- teflon, piston seal

1шт.

Part of repair kit, P/N G33968

1шт.

16

G104114

PISTON

- cylinder (Replaces G33774)

1шт.

17

G33774

PISTON

- cylinder (Order G104114)

1шт.

18

G100448

RING,101.6mm OD, Ext

- nylon, piston cover (Used with G33774 piston)

1шт.

Part of repair kit, P/N G33968

1шт.

19

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt

1шт.

G33968

REPAIR KIT

KIT - repair: Includes: Refs. 6, 8 - 12, 14, 15 and 18

1шт.
