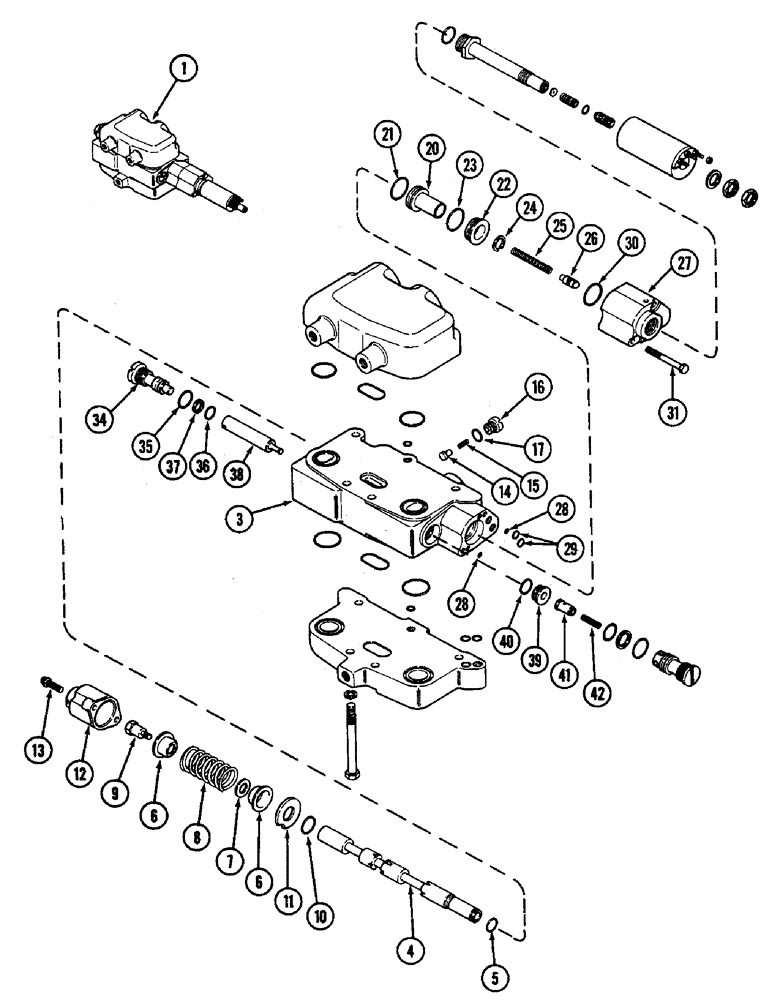

Запчасти Case IH 4890 (8-330) - HITCH CONTROL VALVE ASSEMBLY, P.I.N. 8860450 AND AFTER (08) - HYDRAULICS

1

A161686

VALVE

ASSEMBLY - hitch control, Includes: Ref. 3 - 42, 50 - 75 on Figure 8-332, and kits

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - three way, Includes: Ref. 3 - 42 and 50 - 60 on Figure 8-332

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - three way valve (Order A47951)

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order A47951)

1шт.

5

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- valve spool

1шт.

Part of three way valve repair kit, P/N A47985

1шт.

6

A47963

WASHER

- spring seat

2шт.

7

F8235

WASHER

- spool screw

1шт.

8

A47975

SPRING

- spool

1шт.

9

H138248

SCREW,1/4" - 20 x 7/16"

- valve spool

2шт.

10

A47982

O-RING,0.489" ID x 0.629" OD

- valve spool (In body)

1шт.

Part of three way valve repair kit, P/N A47985

1шт.

11

H205070

RETAINER

- spool o-ring

1шт.

12

A47964

CAP

- valve end

1шт.

13

166-505

12 PT SCREW,Flg, 1/4" - 28 x 7/8", Gr 8

SCREW - 1/4 x 7/8 NF, 12 point

2шт.

14

F36081

VALVE POPPET

PLUNGER - lift check

1шт.

15

F36082

SPRING

- lift check

1шт.

16

H229203

PLUG

ASSEMBLY - lift check, Includes: Ref. 17

1шт.

17

H756627

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

- lift check plug

1шт.

Part of three way valve repair kit, P/N A47985

1шт.

20

A47965

SLEEVE

ASSEMBLY - valve spool, Includes: Ref. 21

1шт.

21

A47966

SEAL

O-RING - spool sleeve

1шт.

Part of three way valve repair kit, P/N A47985

1шт.

22

A47967

BUSHING

ASSEMBLY - spool sleeve, Includes: Ref. 23

1шт.

23

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- sleeve bushing

1шт.

Part of three way valve repair kit, P/N A47985

1шт.

24

A47973

RING

- spool retaining snap

1шт.

Part of three way valve repair kit, P/N A47985

1шт.

25

A47974

SPRING

- valve spool

1шт.

26

A47968

SPOOL

- control

1шт.

27

A47969

CAP

- solenoid adapter

1шт.

28

T30271

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

- valve body

2шт.

Part of three way valve repair kit, P/N A47985

1шт.

29

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- valve body

2шт.

Part of three way valve repair kit, P/N A47985

1шт.

30

H757492

SEAL

O-RING - valve body

1шт.

Part of three way valve repair kit, P/N A47985

1шт.

31

13-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

34

A47970

PLUG

ASSEMBLY - lockout, Includes: Ref. 35 - 37

1шт.

35

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- lockout plug

1шт.

Part of three way valve repair kit, P/N A47985

1шт.

36

H756783

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

- lockout plug

1шт.

Part of three way valve repair kit, P/N A47985

1шт.

37

A47971

RING

- lockout plug backup

1шт.

Part of three way valve repair kit, P/N A47985

1шт.

38

NSS

NOT SOLD SEPARAT

PLUNGER - lockout (Order A47951)

1шт.

39

A47977

SEAT

ASSEMBLY - poppet, Includes: Ref. 40

1шт.

40

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- poppet seat

1шт.

Part of three way valve repair kit, P/N A47985

1шт.

41

A47962

VALVE POPPET

POPPET - lockout

1шт.

42

A47976

SPRING

- poppet (Light blue color code)

1шт.

A47985

SEAL

KIT - repair, three way valve, Includes: Ref.. 5, 10, 17, 21, 23, 24, 28 - 30, 35 - 37, 40 on Figure 8-330 and 51 - 53, 57, and 60 on Figure 8-332

1шт.
