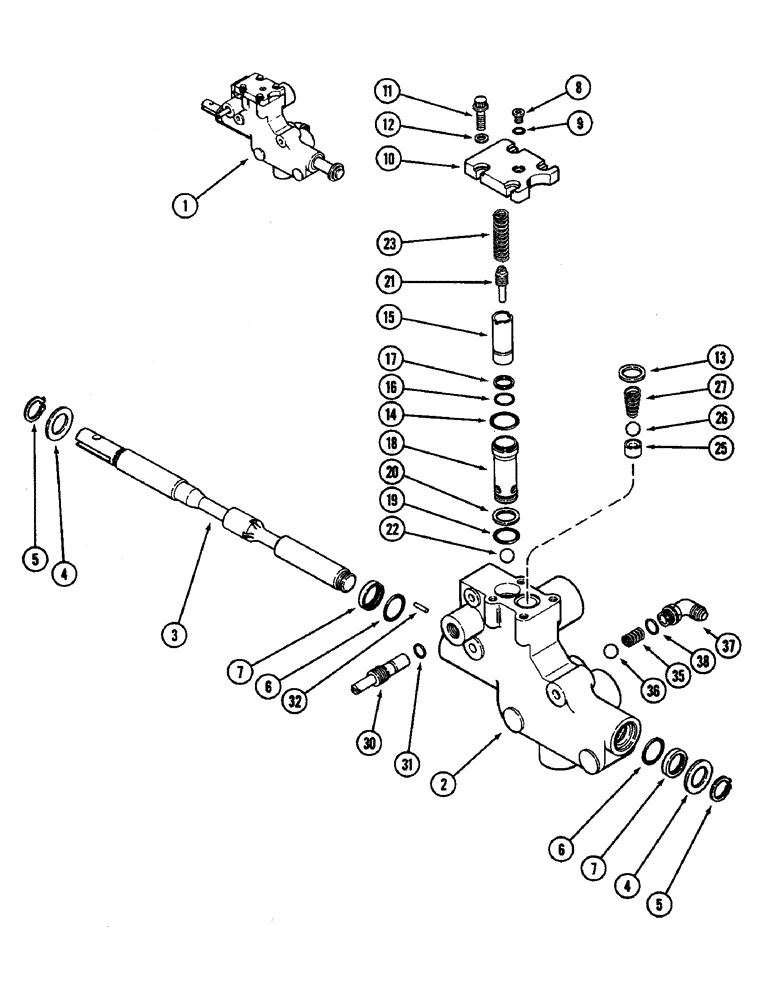

Запчасти Case IH 4890 (8-328) - HITCH CONTROL VALVE ASSEMBLY, PRIOR TO P.I.N. 8860450 (08) - HYDRAULICS

1

A143173

VALVE

ASSEMBLY - hitch control, Includes: Ref. 2 - 38

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order A143173)

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - control (Order A143173)

1шт.

4

A35093

WASHER

- spool stop

2шт.

5

A35094

SNAP RING,#81, Ext

Ring, Snap, #81, Ext

2шт.

6

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

- spool, 7/8 x 1-1/8 x 1/8" (22.2 x 28.6 x 3.2 MM)

2шт.

7

A56340

OIL SEAL

- oil, spool

2шт.

8

86632547

PLUG,Hex, 5/16"-24 ORB

Valve Opening Cover, Includes Ref. 9 Hex Soc, 5/16"-24 ORB

1шт.

10

A162629

COVER

- valve opening (Replaces A143712)

1шт.

11

166-26

12 PT SCREW,Flg, 5/16" - 18 x 1", Gr 8

SCREW - cap, 5/16 x 1" NC, 12 point head

4шт.

12

A148875

WASHER,8.2mm ID x 12.7mm OD x 0.86mm Thk

- 5/16 x 1/2 x 1/32" hardened (7.9 x 12.7 x 0.79 MM)

4шт.

13

A35547

RING

- seal, load check port

1шт.

9

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, plug (10.5 x 1.8 mm)

1шт.

A47582

KIT

- lowering piston, Includes: Ref. 14 - 21

1шт.

14

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

- sleeve, 7/8 x 1-1/16 x 3/32" (22.2 x 27.0 x 2.8 MM) (Replaces A62239)

1шт.

15

A149767

PISTON

- lowering

1шт.

16

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- piston, 5/8 x 3/4 x 1/16" (15.9 x 19.1 x 1.6 MM)

1шт.

17

34993

RING - backup (Replaces A34993)

1шт.

18

A149768

SLEEVE

- lowering piston

1шт.

19

A15888

O-RING,0.801" ID x 0.941" OD x 0.07"

- sleeve, 13/16 x 15/16 x 1/16" (20.6 x 23.8 x 1.6 MM)

1шт.

20

A149775

RING

- backup

1шт.

21

A149766

ADJUSTMENT SCREW,3/8" - 24 x 0.75"

SCREW - adjusting, lowering piston

1шт.

22

211-13

BALL,1/2" Dia

(12.7 mm) - lowering piston 1/2" Dia

1шт.

23

A149794

SPRING

- lowering piston, 1-29/32" (48.6 MM) Free length

1шт.

25

L10120

SEAT

- load check ball

1шт.

26

211-12

BALL,7/16 Dia

- load check, 1/2" (12.7 MM) Diameter

1шт.

27

A35099

SPRING

- load check

1шт.

30

A32363

SPOOL

SCREW - throttle

1шт.

31

A40109

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

- spool, 3/8 x 1/2 x 1/16" (9.5 x 12.7 x 1.6 MM)

1шт.

32

138-39

LOCK PIN,3/32" x 5/8", Slotted

PIN, (2.4 x 15.9 mm) 3/32" x 5/8", Slotted

1шт.

35

A61510

SPRING

- sensing, 21/32" (16.7 MM) Free length

1шт.

36

211-12

BALL,7/16 Dia

- sensing, 1/2" (12.7 MM) Diameter

1шт.

37

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSEMBLY - 90 degree

1шт.

38

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.9 x 15.9 x 2 mm)

1шт.
