(8-326) - HITCH CONTROL CIRCUIT, P.I.N. 8860450 AND AFTER

Запчасти Case IH 4890 (8-326) - HITCH CONTROL CIRCUIT, P.I.N. 8860450 AND AFTER (08) - HYDRAULICS

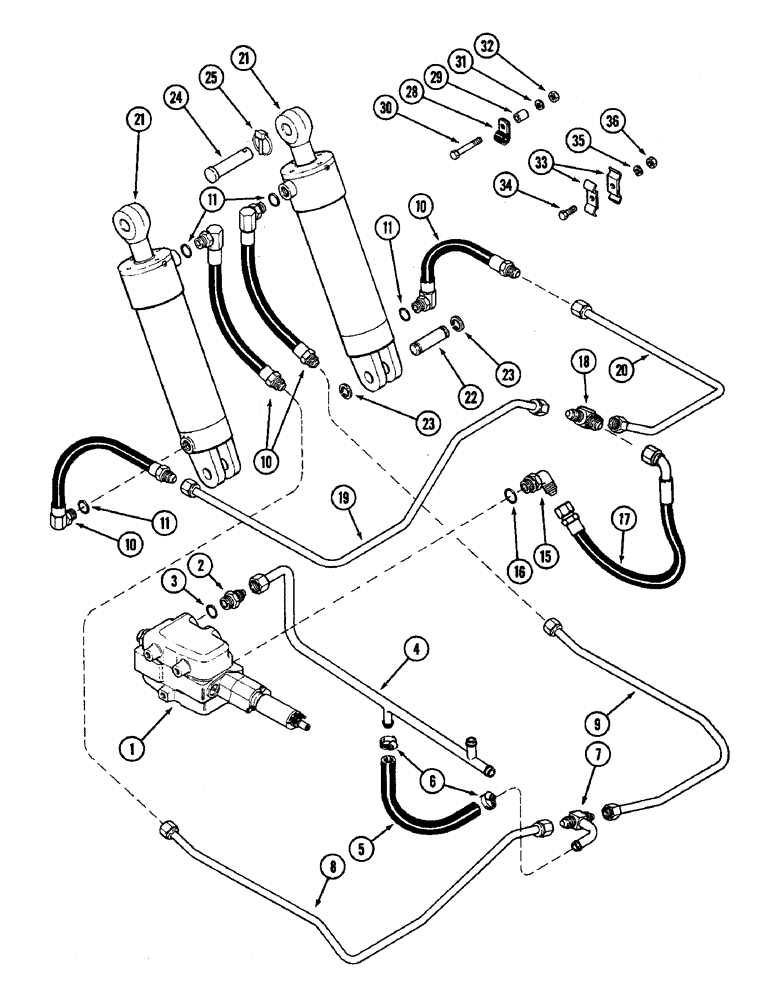

Схема запчастей Case IH 4890 - (8-326) - HITCH CONTROL CIRCUIT, P.I.N. 8860450 AND AFTER (08) - HYDRAULICS
17
19
23
20
21
11
25
30
9
15
7
11
2
1
16
34
10
31
3
36
10
22
24
5
10
33
4
28
11
32
21
29
6
23
35
18
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - hitch control (See Figure 8-330)

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, Incl. Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 7/64" (29.77 x 2.78 MM)

1шт.

4

A162571

TUBE

ASSEMBLY - hitch valve drain

1шт.

5

A162206

HOSE - drain, 16" long (406.4 MM) (Order D55911 and, Serial Range: cut-length)

1шт.

D55911

HOSE

- drain, 28" long (711.2 MM)

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose 1-3/16 to 1-3/4" (30.16 to 44.45 MM)

2шт.

7

A162204

TUBE

CONNECTOR - 90 degree

1шт.

8

A162039

TUBE

ASSEMBLY - return, right

1шт.

9

A162040

TUBE

ASSEMBLY - return, left

1шт.

10

A75438

HOSE

ASSEMBLY - hitch cylinder

4шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 3/32" (19.05 x 2.38 MM)

4шт.

15

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - 90 degree, Incl. Ref. 16

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 7/64" (23.81 x 2.78 MM)

1шт.

17

A148749

HOSE

ASSEMBLY - hitch valve pressure (Replaces L16415)

1шт.

18

218-605

TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Br

- connector

1шт.

19

A161893

TUBE

ASSEMBLY - cylinder pressure, right

1шт.

20

A161894

TUBE

ASSEMBLY - cylinder pressure, left

1шт.

21

REF

INSTRUCTION

CYLINDER ASSEMBLY - hitch (See Figure 8-336)

2шт.

22

A76281

PIN

- cylinder, lower, 3-1/2" long (88.9 MM)

2шт.

23

A12667

RING

- lower pin retaining snap

2шт.

24

A163277

PIN

- cylinder, upper, 1-1/4" diameter (31.75 MM)

2шт.

25

A30338

PIN

ASSEMBLY - upper pin klick

2шт.

28

49885

CLAMP

- cylinder tube

4шт.

29

A140434

BUSHING

SPACER - tube clamp

2шт.

30

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

(Replaces 13-644) Hex, 3/8"-16 x 2 3/4", G5

2шт.

31

92-6

LOCK WASHER,3/8"

2шт.

32

425-106

NUT,3/8"-16, Cl 5

(Replaces 25-106) 3/8"-16, G5

2шт.

33

A17542

CLAMP

- tube support

2шт.

34

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces 13-616)

1шт.

35

92-6

LOCK WASHER,3/8"

1шт.

36

425-106

NUT,3/8"-16, Cl 5

(Replaces 25-106) 3/8"-16, G5

1шт.
