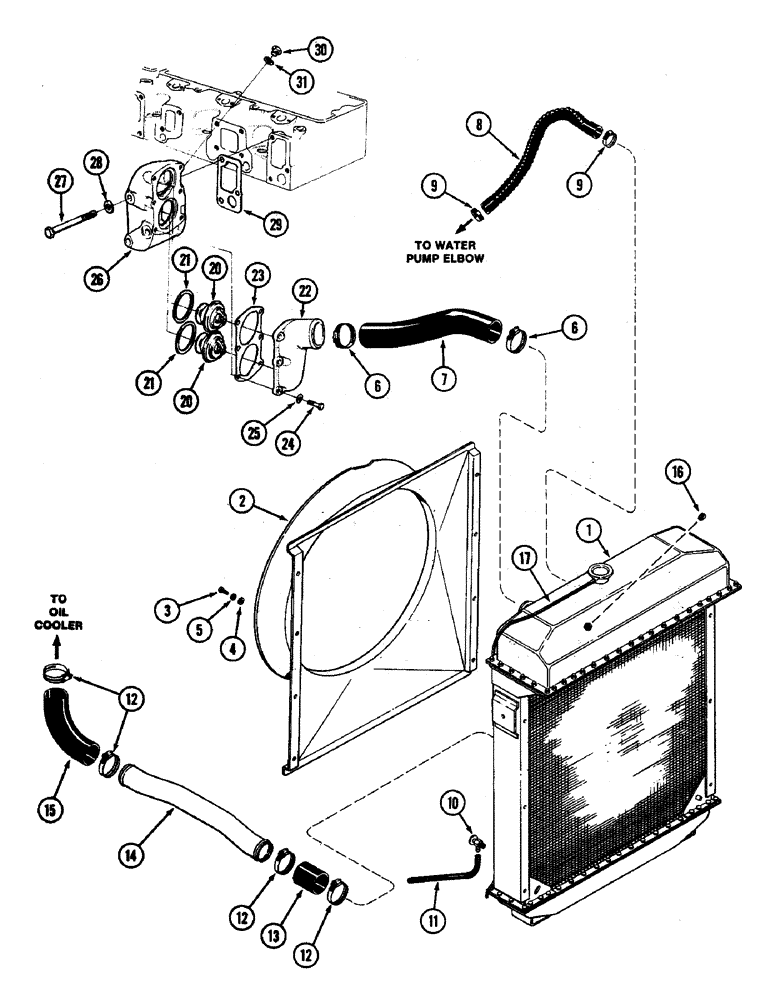

Запчасти Case IH 4890 (2-06) - RADIATOR AND HOSES, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A163603

RADIATOR

ASSEMBLY - engine coolant (Replaces A152533), includes gasket

1шт.

N6649

STRIP-GASKET

- radiator, 36" strip

1шт.

2

A165469

GUARD

SHROUD - fan (Replaces A149285)

1шт.

3

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

4

195-2251

WASHER,.281" x 1" x .109"

- flat, 9/32 x 1 x 7/64" (7.14 x 25.4 x 2.78 MM)

8шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

6

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

(46 to 70 mm) #36, 1.81/2.75 Type F Worm

2шт.

7

A148149

RADIATOR HOSE,2.25" ID x 15.20", SAE 20R4

Upper, Thermostat Housing to Radiator

1шт.

8

A146503

HOSE,31.8 mm ID x 736.60 mm, SAE 20R5 CLASS C

1.25" ID x 29.00", SAE 20R5 Class C - Pressure, Radiator to water pump

1шт.

9

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

(33.3 to 57.1 mm) #28, 1.31/2.25 Type F Worm

2шт.

10

A27862

COCK, DRAIN

VALVE - drain, radiator, 1/4" PT

1шт.

11

A75533

HOSE,0.25" ID x 13.00", SAE SC-715

RADIATOR HOSE, , Drain Valve 0.25" ID x 13.00", SAE SC-715

1шт.

12

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

(46 to 70 mm) #36, 1.81/2.75 Type F Worm

4шт.

13

H158592

HOSE,57.20 mm ID x 101.60 mm, SAE 20R2

Lower, Radiator to Oil Cooler Tube 57.20 mm ID x 101.60 mm, SAE 20R2

1шт.

14

A148150

TUBE

- radiator to engine oil cooler

1шт.

15

A148151

HOSE,2.25" ID x 5.65", SAE 20R4 Class C, D, or D1

- Elbow, Tube to engine oil cooler 2.25" ID x 5.65", SAE 20R4 Class C, D, or D1

1шт.

16

221-841

PLUG

- radiator top tank, 1/4" PT socket head

2шт.

17

A45690

TUBE

HOSE - overflow, radiator

1шт.

A62079

CLIP

- overflow hose

2шт.

20

A45759

THERMOSTAT

S - engine coolant, 175 degrees F (79 degrees C)

2шт.

21

A45770

GASKET

-, Serial Range: thermostat-housing

2шт.

22

A45768

COVER

- thermostat housing

1шт.

23

A45769

GASKET,0.5mm Thk

- housing cover

1шт.

24

813-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- 8 x 1.25 x 25 MM hex

6шт.

25

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

6шт.

26

A45767

HOUSING

- thermostat

1шт.

27

813-12120

BOLT,Hex, M12 x 1.75 x 120mm, Cl 8.8

- 12 x 1.25 x 120 MM hex

3шт.

28

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/16 x 3/32"

3шт.

29

A46566

GASKET

- thermostat housing to head (Replaces A46170)

1шт.

30

A45764

PLUG

- thermostat housing

1шт.

31

A45766

GASKET

- PLUG

1шт.
