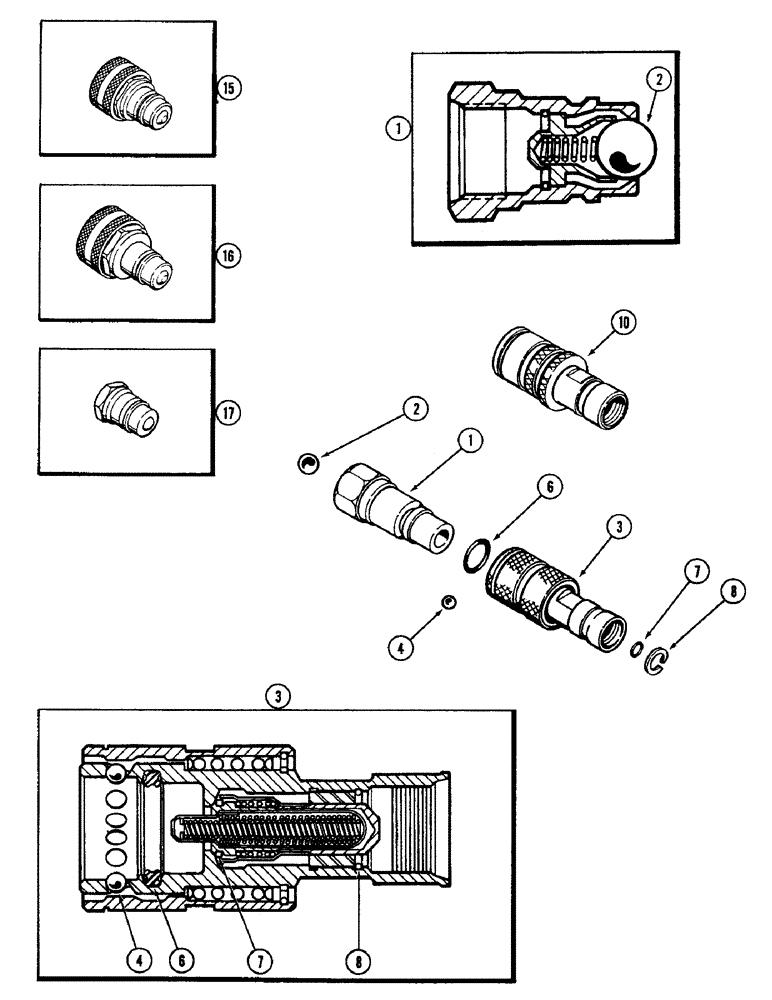

Запчасти Case IH 4890 (8-312) - REMOTE HYDRAULIC BREAKAWAY COUPLINGS (08) - HYDRAULICS

1

A147889

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - male breakaway, Includes: Ref. 2

1шт.

2

211-316

BALL,17/32" Dia

- 17/32" (13.5 MM) Diameter

1шт.

3

A147888

BREAKER POINTS

COUPLING ASSEMBLY - female breakaway (Order A147741), Includes: Ref. 4 - 8

1шт.

4

211-5

BALL,3/16" Dia

- 3/16" (4.8 MM) Diameter

10шт.

A47220

GASKET KIT

KIT - repair, Includes: Ref. 6 - 8

1шт.

6

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

- body

1шт.

7

A47222

SEAL

- poppet

1шт.

8

NSS

NOT SOLD SEPARAT

RING - lock (Order A47220)

1шт.

10

A147741

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - female breakaway

1шт.

15

A160879

COUPLING, BREAK AWAY

ADAPTER ASSEMBLY - male half (John Deere male half to J I Case A147888 female half)

1шт.

16

A160880

COUPLING, BREAK AWAY

ADAPTER ASSEMBLY - male half (International Harvester male half to J I Case A147888 female half)

1шт.

17

A160937

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - male half (Same as A147889 except it has 1/2"-14 internal thread)

1шт.
