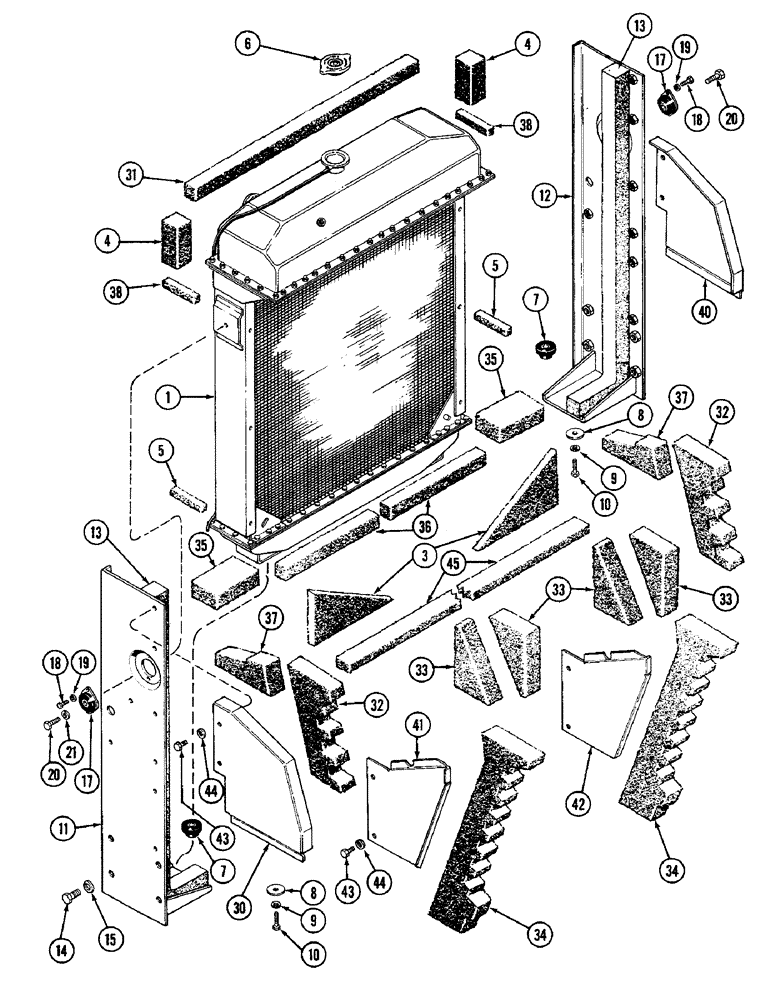

Запчасти Case IH 4890 (2-04) - RADIATOR, BAFFLES, SUPPORTS AND SEALS, 674 CUBIC INCH DIESEL ENGINE, P.I.N. 8857928 AND AFTER (02) - ENGINE

1

REF

INSTRUCTION

RADIATOR ASSEMBLY - engine coolant (See Figure 2-06)

1шт.

A150488

SEAL

- top front 2" square x 34" (50.8 x 864 MM) (Not shown)

2шт.

3

A150496

SEAL

- corner, lower

2шт.

4

A150489

SEAL

- top side 2" square x 5", (50.8 x 127 MM)

4шт.

5

A148863

SEAL

- radiator corners 3/4" square x 4-1/2", (19 mm x 114 mmm)

4шт.

6

A151618

CAP

- radiator 14 PSI, (96.5 kPa)

1шт.

If needing a larger Radiator cap (ref #6) to fit a 4890 the p/n is A143721. 9-3-99 cw

1шт.

7

A142542

MOUNTING PARTS

MOUNT - radiator stud, lower

2шт.

8

51200247

WASHER

- mounting, lower 9/16 x 1-3/4 x 9/64" (14.29 x 44.45 x 3.57 MM), Gear Spacer Spring

2шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

11

A161652

SUPPORT

- RH side, radiator

1шт.

12

A161653

SUPPORT

- LH side, radiator

1шт.

13

A150490

SEAL

- radiator to support 2" square x 46" (50.8 x 1 168.4 MM)

2шт.

14

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

17

A138589

MOUNTING PARTS

MOUNT - radiator to side support

2шт.

18

187-1067

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - #10-24 x 1/2" hex head

4шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

20

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

30

A146044

BAFFLE

- upper RH side, radiator

1шт.

31

A161453

SEAL

- radiator top, 1-1/2" square x 34" (38.1 x 863.6 MM)

1шт.

32

A162423

SEAL

- upper, Serial Range: baffle-grille

2шт.

33

A162645

SEAL

- upper, Serial Range: baffle-grille

2шт.

34

A161950

SEAL

- lower grille

2шт.

35

A161951

SEAL

- frame extension, 3-1/2 x 2 x 6" (88.9 x 50.8 x 152.4 MM)

2шт.

36

A149927

SEAL

- grill to frame extension, 2" square x 13-1/2" (50.8 x 342.9 M)

2шт.

37

A162641

SEAL

- upper grille

2шт.

38

A148863

SEAL

- radiator support, 3/4" square x 4-1/2" (19.05 x 114.3 MM)

2шт.

40

A146045

BAFFLE

- upper LH side, radiator

1шт.

41

A150389

BAFFLE

- lower RH

1шт.

42

A150390

BAFFLE

- lower LH

1шт.

43

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

44

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

45

A149860

SEAL PROTECTION

- hood lower grille, 3/8" square x 45" (9.65 x 1143.0 MM)

1шт.

A150493

SEAL

- frame, side, 2" square x 3-1/2" (50.8 x 89 MM) (Not shown)

2шт.
