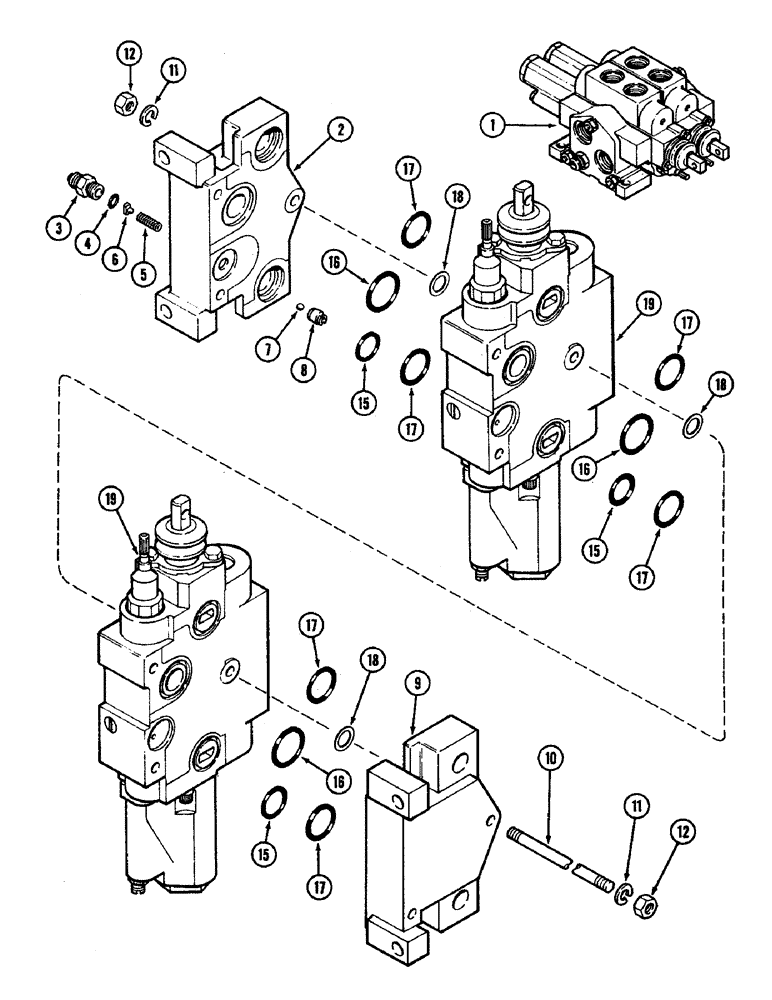

Запчасти Case IH 4890 (8-304) - REMOTE HYDRAULIC VALVE ASSEMBLY, TWO CIRCUIT SYSTEM (08) - HYDRAULICS

1

A162211

VALVE

ASSEMBLY - remote hydraulic (Replaces A141622), Includes: Ref. 2 - 19

1шт.

2

A47169

COVER

ASSEMBLY - inlet, RH side, Includes: Ref. 3 - 8

1шт.

3

A47185

FITTING

- inlet, pilot tube

1шт.

4

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.9 x 15.9 x 2 mm)

1шт.

5

A47176

SPRING

- valve, 11/16" (17.5 MM) Free length

1шт.

6

A47214

RETAINER

- spring

1шт.

7

211-257

BALL,1/4" Dia

(6.4 mm) 1/4" Dia

1шт.

8

A47202

SEAT

- valve

1шт.

9

A47113

COVER

- LH side

1шт.

10

A147506

STUD

- 3/8" NC x 8" (203.2 MM)

3шт.

11

92-6

LOCK WASHER,3/8"

6шт.

12

425-106

NUT,3/8"-16, Cl 5

(Replaces 25-106) 3/8"-16, G5

6шт.

15

A47696

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

- 3/4 x 1 x 1/8" (19.1 x 25.4 x 3.1 MM)

1шт.

16

A47226

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- 1 x 1-1/4 x 1/8" (25.4 x 31.8 x 3.1 MM)

1шт.

17

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- 15/16 x 1-1/8 x 3/32" (23.9 x 28.5 x 2.3 MM)

2шт.

18

D77566

SHIM,.0030" Thk

1/2" ID x 3/4" OD (12.7 x 19.05 x 0.008 mm) .0030" Thk

3шт.

19

REF

INSTRUCTION

BODY ASSEMBLY - valve (See Figure 8-306)

2шт.
