(8-300) - REMOTE HYDRAULIC ATTACHMENT, FOURTH CIRCUIT, PRIOR TO P.I.N. 8860450

Запчасти Case IH 4890 (8-300) - REMOTE HYDRAULIC ATTACHMENT, FOURTH CIRCUIT, PRIOR TO P.I.N. 8860450 (08) - HYDRAULICS

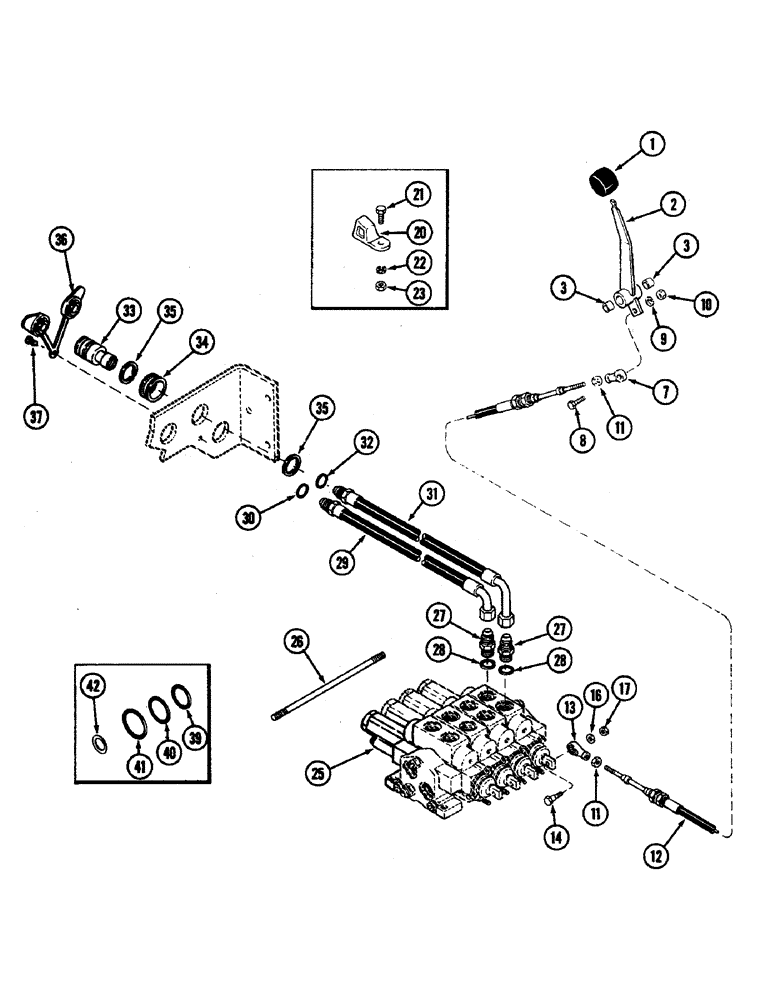

Схема запчастей Case IH 4890 - (8-300) - REMOTE HYDRAULIC ATTACHMENT, FOURTH CIRCUIT, PRIOR TO P.I.N. 8860450 (08) - HYDRAULICS
32
17
2
12
33
8
3
31
7
39
23
41
30
27
9
35
22
28
16
3
25
20
40
27
1
34
35
26
10
13
11
29
36
11
21
42
28
14
37
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A77378

ATTACHMENT - remote hydraulics, fourth circuit (Machinery item), Includes: Ref. 1 - 42

1шт.

1

A137806

KNOB

- hand lever

1шт.

2

A161034

LEVER

ASSEMBLY - outer rear, Includes: Ref. 3

1шт.

3

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever pivot

2шт.

7

A146456

BALL

JOINT - control, Serial Range: cable-lever

1шт.

8

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

11

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

12

A152757

CABLE

- control

1шт.

13

A146456

BALL

JOINT - control cable to valve spool

1шт.

14

A148510

BOLT

- shoulder, 1/4" NC

1шт.

16

195-518

WASHER,1/4", SAE

- 9/32 x 5/8 x 5/64" (7.14 x 15.87 x 1.98 mm)

2шт.

17

425-104

NUT,1/4"-20, Cl 5

- 1/4" NC hex. (Replaces 219-101)

1шт.

20

A141542

LEVER

TAB - lever, float position

1шт.

21

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

21

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

22

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (Replaces A160353) 1/4"

1шт.

23

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

25

REF

INSTRUCTION

BODY ASSEMBLY - remote valve (See Figure 8-306)

1шт.

26

A147508

STUD

- additional valve body, 3/8" NC x 11-3/4"

3шт.

27

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - 5/8", Includes: Ref. 28

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32" (19.1 x 24.2 x 2.4 MM)

1шт.

29

A160402

HOSE

- valve to coupling, 23-1/2" (596.9 MM) Long

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 3/32" (19.05 x 2.38 MM)

1шт.

31

A160401

HOSE

- valve to coupling, 26" (660.4 MM)

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 3/32" (19.05 x 2.38 MM)

1шт.

33

A147741

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - breakaway (See Figure 8-312)

2шт.

34

A149221

RETAINER

- coupling to rear plate

2шт.

35

A137976

SNAP RING,#150, 1.408", Ext

RING - snap, retainer

4шт.

36

A145468

PLUG

- dust, coupling

1шт.

37

A162364

FASTENER

- plug to plate (Replaces 113-4 and 131-71)

1шт.

39

A47696

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

- 3/4 x 1 x 1/8" (19.05 x 25.4 x 3.05 MM)

1шт.

40

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- 15/16 x 1-1/8 x 3/32" (23.88 x 28.45 x 2.29 MM)

2шт.

41

A47226

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- 1 x 1-1/4 x 1/8" (25.4 x 31.75 x 3.05 MM)

1шт.

42

D77566

SHIM,.0030" Thk

1/2" ID x 3/4" OD (12.7 x 19.05 x 0.008 mm) .0030" Thk

3шт.
