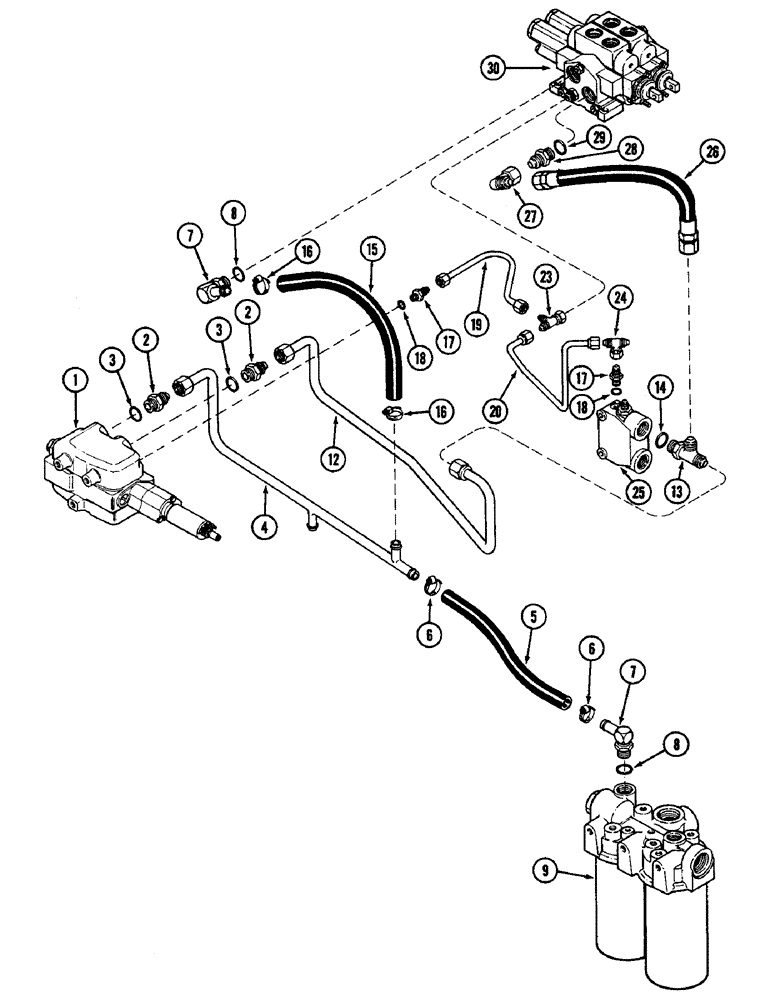

Запчасти Case IH 4890 (8-292) - REMOTE HYDRAULIC SYSTEM, P.I.N. 8860450 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - electric hitch (See Figure 8-330)

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - straight, Incl. Ref. 3

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 7/64" (23.81 x 2.78 MM)

1шт.

4

A162571

TUBE

ASSEMBLY - hitch valve drain

1шт.

5

A162206

HOSE - tube to filter (Order D55911 and, Serial Range: cut-length)

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4" (30.16 to 44.45 MM)

2шт.

7

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW ASSEMBLY - 90 degree, Incl. Ref. 8

2шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 7/64" (23.81 x 2.78 MM)

1шт.

9

REF

INSTRUCTION

FILTER ASSEMBLY - hydraulic oil (See Figure 8-264)

1шт.

12

A162570

TUBE

ASSEMBLY - priority valve to hitch valve

1шт.

13

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- connector, priority valve, Includes: Ref. 14

1шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 7/64" (23.81 x 2.78 MM)

1шт.

15

A162207

HOSE - remote valve drain (Order D55911 and, Serial Range: cut-length)

1шт.

16

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4" (30.16 to 44.45 MM)

2шт.

17

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR - straight, Includes: Ref. 18

2шт.

18

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 5/64" (8.73 x 1.98 MM)

1шт.

19

A162568

TUBE

ASSEMBLY - hitch valve sensing

1шт.

20

A161899

TUBE

ASSEMBLY - priority valve to hitch valve

1шт.

23

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Connector, remote valve 37º, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

24

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

- connector, priority valve

1шт.

25

REF

INSTRUCTION

VALVE ASSEMBLY - priority (See Figure 5-160)

1шт.

26

A140575

HOSE

Priority Valve to Remote Vavle (Replaces A164257)

1шт.

27

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

28

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - remote valve, straight, Incl. Ref. 29

1шт.

29

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 7/64" (23.81 x 2.78 MM)

1шт.

30

REF

INSTRUCTION

VALVE ASSEMBLY - remote (See Figure 8-304)

1шт.
