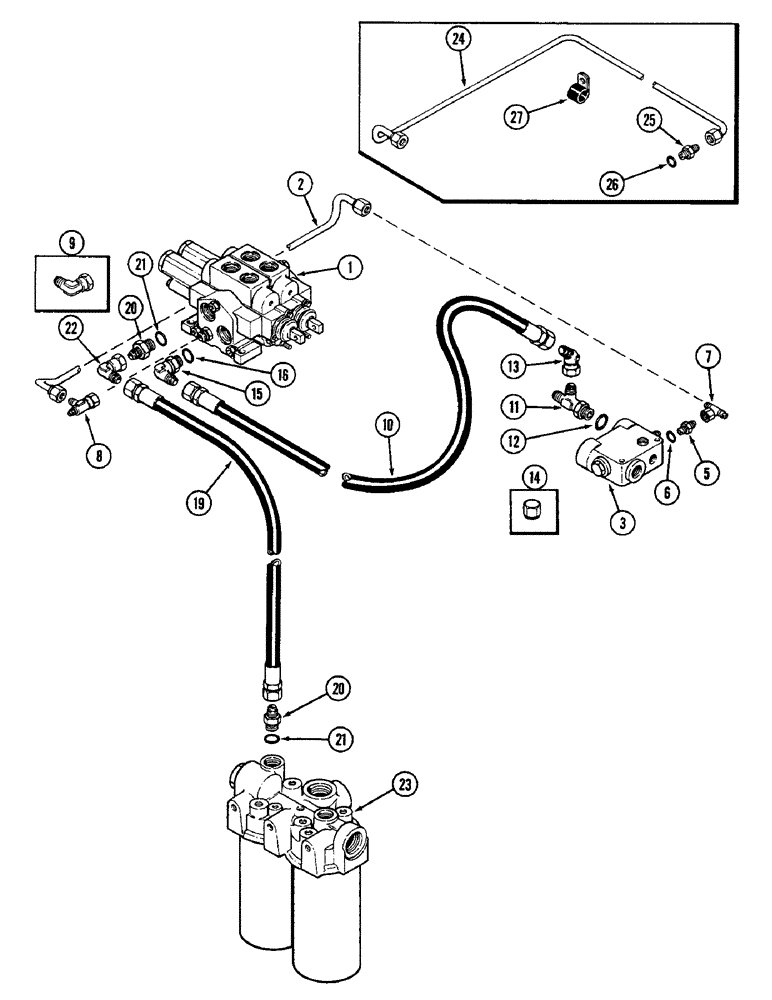

Запчасти Case IH 4890 (8-290) - REMOTE HYDRAULIC SYSTEM, PRIOR TO P.I.N. 8860450 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, two circuit system (See Figure 8-304)

1шт.

2

A160254

TUBE

- priority valve to remote valve

1шт.

3

REF

INSTRUCTION

VALVE ASSEMBLY - priority (See Figure 5-160)

1шт.

5

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR ASSEMBLY - straight, Includes: Ref. 6

1шт.

6

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64" (8.7 x 12.7 x 2 MM)

1шт.

7

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

CONNECTOR - (Branch type)

1шт.

8

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Connector (Branch type) 37º, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

9

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree (At remoe valve without hitch)

1шт.

10

A140575

HOSE

Priority Valve to Remote Valve

1шт.

11

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - (Branch type), Includes: Ref. 12

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64" (23.8 x 29.4 x 2.8 MM)

1шт.

13

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

- 45 degree

1шт.

14

218-335

CAP,37 Degree, 1 1/16"-12

- 3/4" (19.1 MM) Tube (At priority valve, without hitch)

1шт.

15

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - 90 degree, Incl. Ref. 16

1шт.

16

218-500

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

O-RING - 15/16 x 1-5/32 x 7/64" (23.8 x 29.4 x 2.8 MM)

1шт.

19

A160403

HOSE,0.75" ID x 37.00", SAE 100R4

- Remote Valve to Filter 0.75" ID x 37.00", SAE 100R4

1шт.

20

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - (At remote valve and filter), Incl. Ref. 21

2шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64" (23.8 x 29.4 x 7.78 MM)

1шт.

22

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

23

REF

INSTRUCTION

FILTER ASSEMBLY - hydraulic oil (See Figure 8-264)

1шт.

24

A151168

TUBE

- remote valve to hydraulc pump (Without rear steering)

1шт.

25

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR ASSEMBLY - straight, Includes: Ref. 26

1шт.

26

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64" (8.7 x 12.7 x 2 MM)

1шт.

27

49837

CLAMP

- hydraulic tube

1шт.
