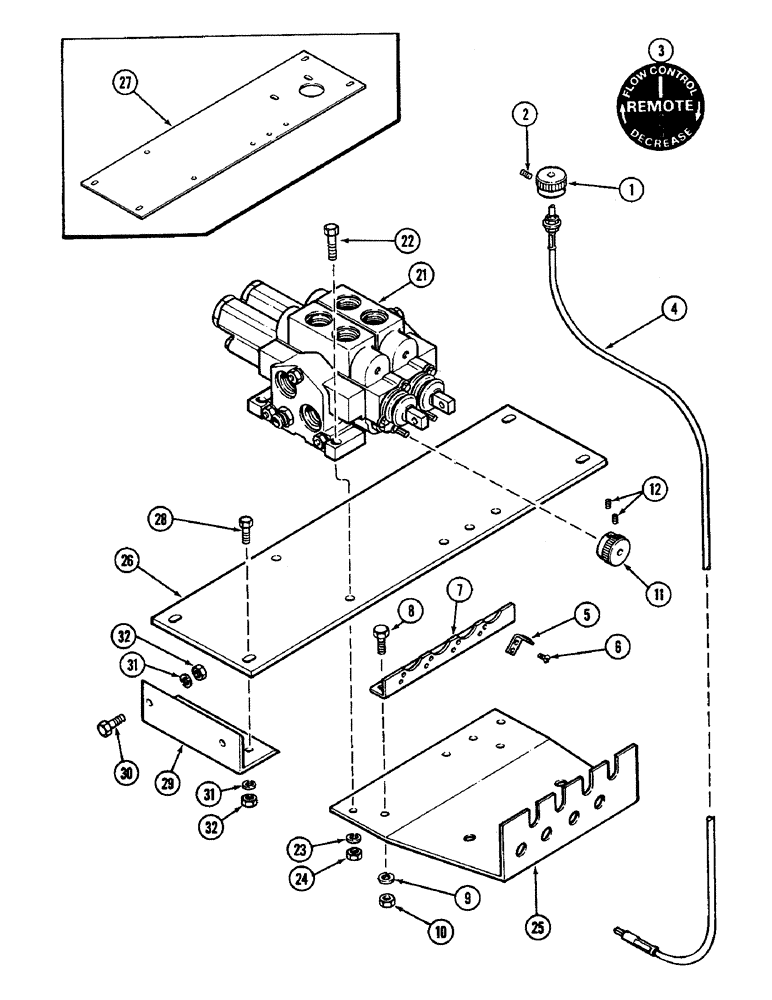

Запчасти Case IH 4890 (8-288) - REMOTE HYDRAULIC VALVE FLOW CONTROLS (08) - HYDRAULICS

1

A145805

KNOB

- flow control cable

1шт.

2

178-1102

SET SCREW,Hex Soc, #10-32 x 1/4"

SCREW - set, #10-32 x 1/4" socket head

1шт.

3

321-4129

DECAL

- control knob

1шт.

4

A161343

CABLE

- control knob to valve (Includes set screw) (Replaces A152781)

1шт.

5

A64179

INDEX

- knob

1шт.

6

187-1095

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW - #8-18 x 1/2" round head self-tapping

1шт.

7

A161054

BRACKET

- index mount

1шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

11

A160814

KNOB

- valve, flow control

1шт.

12

178-1102

SET SCREW,Hex Soc, #10-32 x 1/4"

SCREW - set, #10-32 x 1/4" socket cone point

1шт.

21

REF

INSTRUCTION

VALVE ASSEMBLY - remote hydraulic, 2 circuit (See Figure 8-304)

1шт.

22

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

25

A152128

BRACKET

- control cable, remote valve

1шт.

26

A162418

PLATE - mounting, remote valve, Start Serial: 8860450

1шт.

27

A152078

PLATE

- mounting, remote valve, Serial Range: -8860450

1шт.

28

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

29

A148390

BRACKET

ANGLE - support, mounting plate

2шт.

30

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

32

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.
