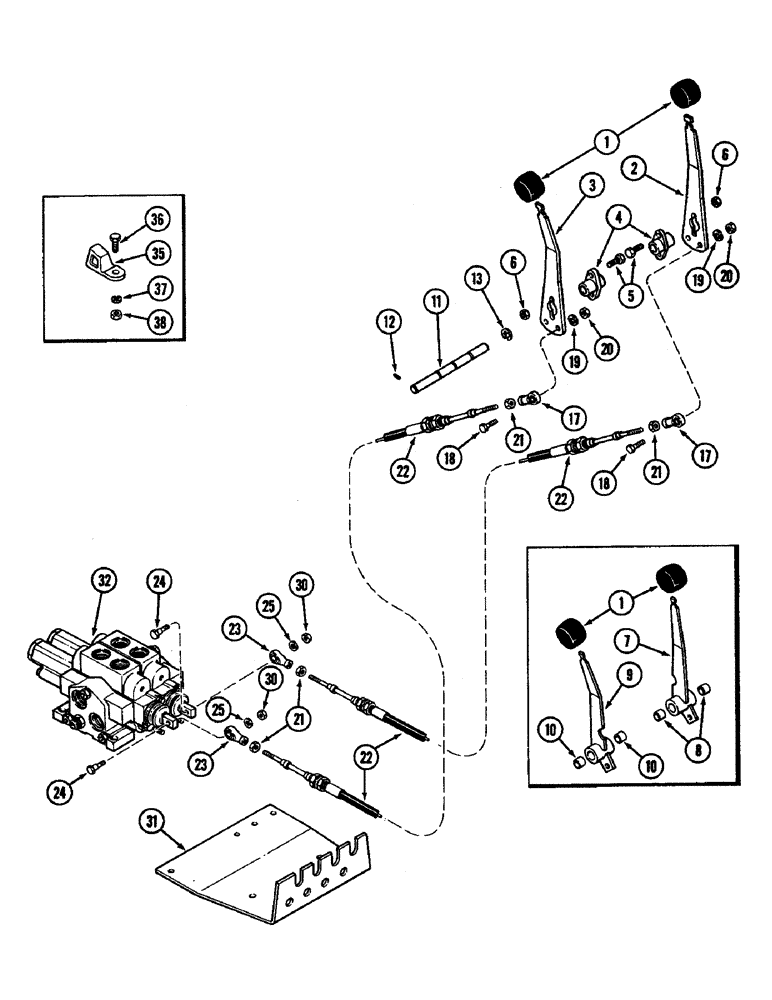

Запчасти Case IH 4890 (8-286) - REMOTE HYDRAULIC CONTROLS, TWO CIRCUIT SYSTEM (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
A137806
KNOB
- hand lever
2шт.
2
A162361
LEVER
- inner, Start Serial: 8860450
1шт.
3
A162362
LEVER
- outer, Start Serial: 8860450
1шт.
4
A162299
BEARING,15.95mm ID
- control lever pivot, Start Serial: 8860450
2шт.
5
113-3
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
, Start Serial: 8860450
4шт.
6
131-1180
LOCK NUT,1/4"-20, GA
NUT, LOCK, 1/4"-20, GA, Start Serial: 8860450
4шт.
7
A161022
LEVER
ASSEMBLY - inner, Includes: Ref. 8, Serial Range: -8860450
1шт.
8
A59429
BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L
- lever pivot
1шт.
9
A161032
LEVER
ASSEMBLY - outer, Includes: Ref. 10, Serial Range: -8860450
1шт.
10
A59429
BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L
- lever pivot
1шт.
11
A161039
SHAFT
-, Serial Range: lever-console
1шт.
12
178-24
SET SCREW,Hex Soc, 1/4"-20 x 1/4"
SCREW - set, 1/4 x 1/4" NC headless
1шт.
13
A27785
CIRCLIP,#62, .480" Dia, E-Type
Ring, Retaining, #62, .480" Dia, E-Type
2шт.
17
A146456
BALL
JOINT - control, Serial Range: cable-lever
2шт.
18
113-4
BOLT,Hex, 1/4" - 20 x 1", Gr 5
2шт.
19
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
2шт.
20
7770
NUT,Hex, 1/4 - 20, Cl 5
1/4"-20, G5
2шт.
21
425-154
JAM NUT,Jam, 1/4"-28, G5
4шт.
22
A152757
CABLE
- remote valve control
2шт.
23
A146456
BALL
JOINT - control cable to valve spool
2шт.
24
A148510
BOLT
- shoulder, 1/4" NC
2шт.
25
195-518
WASHER,1/4", SAE
- 9/32 x 5/8 x 5/64"
6шт.
30
7770
NUT,Hex, 1/4 - 20, Cl 5
1/4"-20, G5
2шт.
31
A152128
BRACKET
- support, control cable
1шт.
32
REF
INSTRUCTION
VALVE ASSEMBLY - control (See Figure 8-304)
1шт.
35
A141542
LEVER
TABE - lever, float position
2шт.
36
113-66
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
2шт.
37
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, (Replaces A160353) 1/4"
2шт.
38
131-1180
LOCK NUT,1/4"-20, GA
NUT, LOCK, 1/4"-20, GA
2шт.
Выбрано товаров: 29
