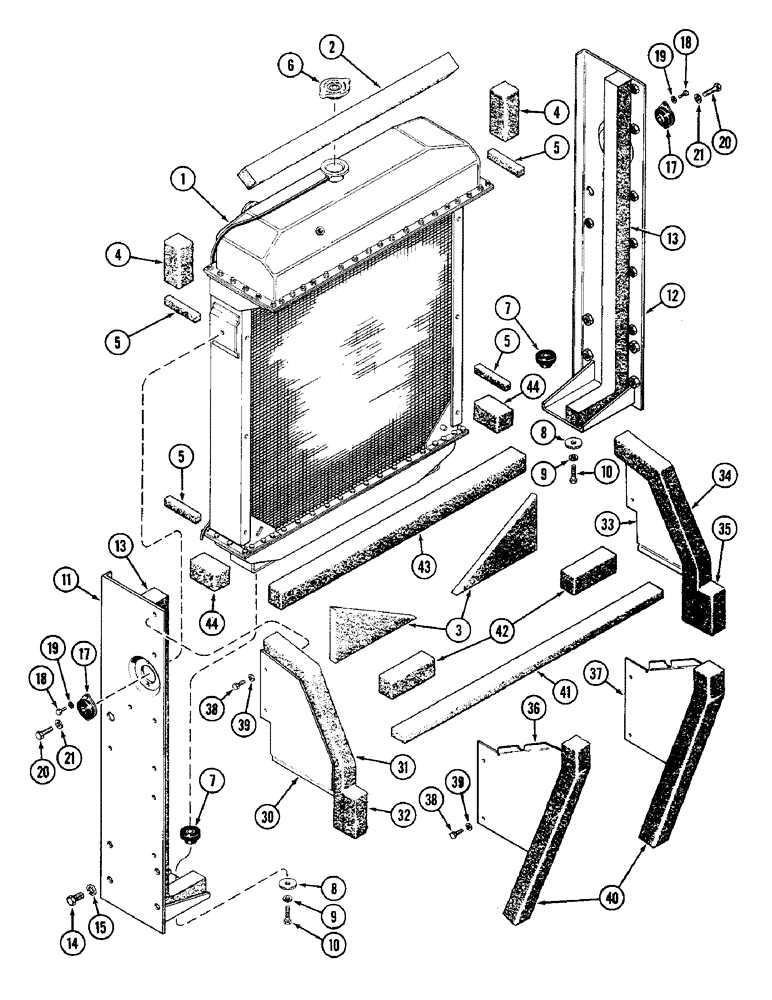

Запчасти Case IH 4890 (2-02) - RADIATOR, BAFFLES, SUPPORTS AND SEALS, 674 CUBIC INCH DIESEL ENGINE, PRIOR TO P.I.N. 8857928 (02) - ENGINE

1

REF

INSTRUCTION

RADIATOR ASSEMBLY - engine coolant (See Figure 2-06)

1шт.

2

A150488

SEAL

- top front 2" square x 34" (50.8 x 864 MM)

2шт.

3

A150496

SEAL

- corner, lower

2шт.

4

A150496

SEAL

- top side 2" square x 5" (50.8 x 127 MM)

4шт.

5

A148863

SEAL

- radiator corners 3/4" square 4-1/2", (19 MM x 114 MM)

4шт.

6

A151618

CAP

- radiator 14 PSI, (96.5 kPa)

1шт.

If needing a larger Radiator cap (ref #6) to fit a 4890 the p/n is A143721. 9-3-99 cw

1шт.

7

A142542

MOUNTING PARTS

MOUNT - radiator stud, lower

2шт.

8

51200247

WASHER

- mounting, lower 9/16 x 1-3/4 x 9/64" (14.29 x 44.45 x 3.57 MM)

2шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

11

A146496

SUPPORT

- RH side, radiator

1шт.

12

A146499

SUPPORT

- LH side, radiator

1шт.

13

A150490

SEAL

- radiator to support 2" square x 46" (50.8 x 1 168.4 MM)

2шт.

14

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

17

A138589

MOUNTING PARTS

MOUNT - radiator to side support

2шт.

18

187-1067

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - #10-24 x 1/2" hex head

4шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

20

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

30

A146044

BAFFLE

- upper RH side, radiator

1шт.

31

A150487

SEAL

- baffle 2" square x 25" (50.8 x 635 MM)

1шт.

32

A151469

SEAL

- baffle 2" square x 5" (50.8 x 127 MM)

1шт.

33

A146045

BAFFLE

- upper LH side, radiator

1шт.

34

A150487

SEAL

- top, baffle 2" square x 25" (50.8 x 635 MM)

1шт.

35

A151469

SEAL

- baffle 2" square x 5" (50.8 x 127 MM)

1шт.

36

A150389

BAFFLE

- lower RH

1шт.

37

A150390

BAFFLE

- lower LH

1шт.

38

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

40

A150491

SEAL

- wing panel, lower 2" square x 26-1/2" (50.8 x 637 MM)

2шт.

41

A150497

SEAL

- hood lower grille, 1" x 2" x 37" (25.4 x 50.8 x 940 MM)

1шт.

42

A151469

SEAL

- headlight and upper hood, 2" square x 5" (50.8 x 127 MM)

2шт.

43

A150492

FOAM

SEAL - frame, front, 2" square x 35-1/2" (50.8 x 902 MM)

1шт.

44

A150493

SEAL

- frame, side, 2" square x 3-1/2" (50.8 x 89 MM)

2шт.
