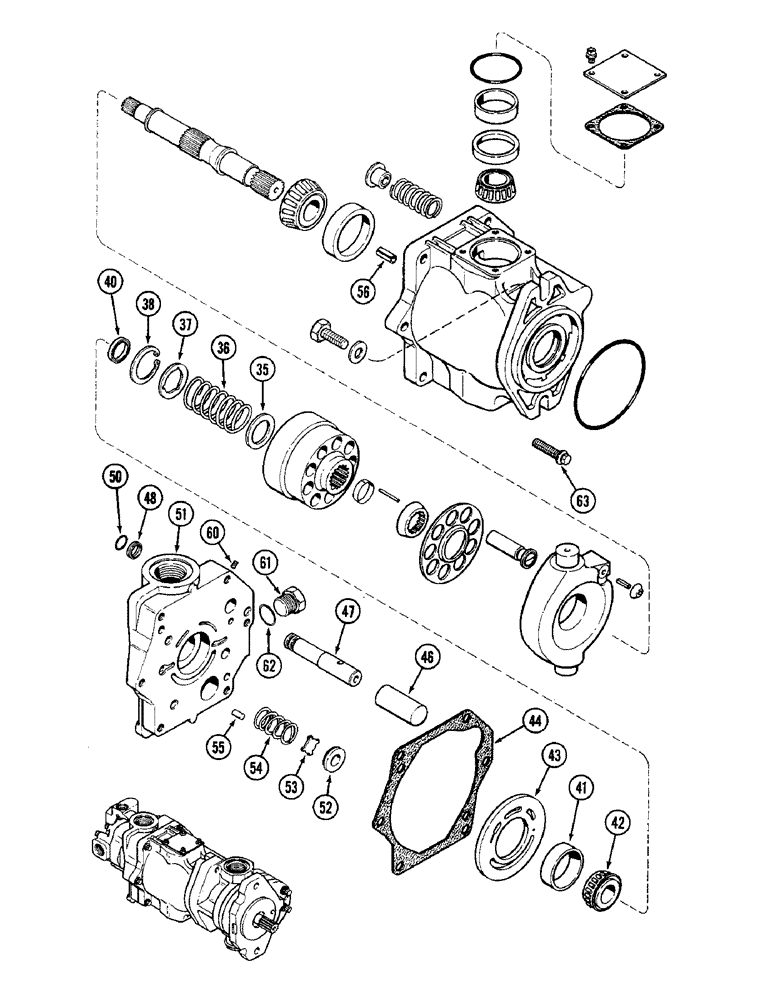

Запчасти Case IH 4890 (8-280) - TRIPLE HYDRAULIC PUMP ASSEMBLY, PISTON PUMP SECTION (08) - HYDRAULICS

A162912

PUMP ASSEMBLY - triple hydraulic (See note on Figure 8-276) (Continued from Figure 8-278), Includes: Ref. 35 - 63, 1 - 33 on Figure 8-278, and kit, Start Serial: 8860322

1шт.

A149963

PUMP

ASSEMBLY - triple hydraulic(Continued from Figure 8-278), Includes: Ref. 35 - 63, 1 - 33 on Figure 8-278, and kit, Serial Range: -8860322

1шт.

129330A1R

REMAN-HYD PUMP

4890 Serial Range: -8860322 (1/79-12/83), Center Section/Piston Pump Only

1шт.

129330A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

35

A47299

WASHER

- spring front

1шт.

36

A47298

SPRING

- cylinder block

1шт.

37

A47300

SPRING WASHER

WASHER - spring rear

1шт.

38

NLS

NO LONGER SERVICED

Ring, Snap, , cylinder block 1.625", Int, #162

1шт.

A47303

KIT

- spacer, rear bearing, Includes: Ref. 40

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.139" (3.53 MM)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.142" (3.61 MM)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.145" (3.68 MM)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.148" (3.76 MM)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.151" (3.84 MM)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.154" (3.91 MM)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.157" (3.99 MM)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.160" (4.06 MM)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.163" (4.14 MM)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.166" (4.22 MM)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.169" (4.29 MM)

1шт.

41

FB14849

BEARING CUP

- rear bearing, 1-31/32" (50.01 MM) OD

1шт.

42

FB14850

ROLLER BEARING

CONE - rear bearing, 27/32" (21.43 MM) ID

1шт.

43

A47635

PLATE

- wafer

1шт.

44

A47280

GASKET,0.53mm Thk

- body

1шт.

Part of seal and gasket kit, P/N 47567

1шт.

A47305

KIT

- piston rod, Includes: Ref. 46 - 48

1шт.

46

NSS

NOT SOLD SEPARAT

PISTON

1шт.

47

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

48

A47340

RING

- snap

1шт.

50

H756783

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

- compensator, 1/2 x 11/16 x 3/32" (12.70 x 17.46 x 2.38 MM)

1шт.

Part of seal and gasket kit, P/N 47567

1шт.

51

A47636

BLOCK

- valve

1шт.

52

A47306

PLUG

SEAT - check valve

1шт.

53

A47307

VALVE

- check

1шт.

54

A47308

SPRING

- check valve

1шт.

55

A47309

PIN

- 1/4 x 1/2" (6.35 x 12.7 MM) (Wafer plate)

1шт.

56

A47301

PIN

-, Serial Range: block-housing

2шт.

60

221-1849

PLUG

- 1/8" PT socket head

1шт.

61

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 61 Hex Hd, 7/8"-14 ORB

1шт.

62

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 1-1/2" NC 12 point head

6шт.

Part of seal and gasket kit, P/N 47567

1шт.

63

166-47

12 PT SCREW,Flg, 3/8" - 16 x 1 1/2", Gr 8

SCREW - cap, 3/8 x 1-1/2" NC 12 point head

6шт.

A47567

KIT

- seal and gasket: Includes: Ref. 44, 50 and 62, See Figure 8-282

1шт.
